Thickness:
20--300mm
Width:
200--800mm
Type:
Flat
Standard:
DIN
Technique:
Forged
Special Use:
Mold Steel
Application:
Tool Steel Bar
Surface Treatment:
Machined Surface
Composition:
Alloy Steel
Steel Grade:
Tool Steel
Shape:
Flat
Product Description
The steel is widely used to manufacture hot extrusion dies and mandrels, forging die forging hammer die forging presses, forging machines, mold inserts and alloy die-casting mold.
2.the steel has high hardenability and thermal cracking capacity,good wear resistance,with good heat resistance, in higher temperatureshas good strength and hardness, high wear resistance
3.HOT WORK TOOL STEEL ROUND BAR H11/DIN1.2343hot work mould steel feature: Comparable steel:H11(USA,ASTM);DHA1(Datong,Japan);4Cr5MoSiV(China);1.2343(Germany DIN);SKD6(Japan,JIS) 4.Chemical composition(for reference only):
C
Si
Mn
Mo
V
Cr
P
S
0.33-0.43
0.80-1.20
0.20-0.50
1.10-1.75
0.80-1.20
4.75-5.50
≤0.030
≤0.030
Delivery of hardness and quenching hardness
Steel name
Delivery status
Quenched specimens
Hardness HBW
Impressiondiameter (mm)
Quenching temperature/°C
Cooling medium
hardness ≥HRC
H11/4Cr5MoSiV
≤235
≥3.95
A
-
60
Astand for: 4Cr5MoSiV steel: 790 °C preheat, 1000°C (salt bath) or 1010°C (controlled) heating , thermal insulation 5 ~ 15min air-cooled, 550 °C temper
SIMILAR STEEL GRADE:
standard
GB
JIS
ASTM
ISO
DIN
Steel grade
4Cr5MoSiV
SKD6
H11
137CrMoV5
1.2343
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.
We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:

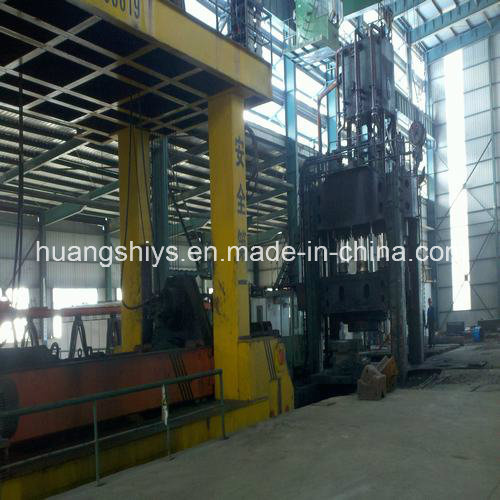

Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:
1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);
2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;
3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;
4. Three peeling machines;
5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between our factory and purchaser.
Enhance the customer's advantage
We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea
