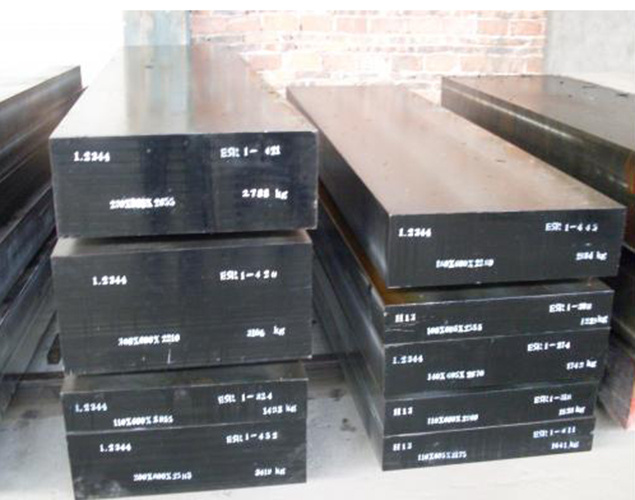

1.2344mould Steel for Forgrd Die Steel
| Price: |
US $ 5000/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Ton |
| Pay Type: |
L/C,T/T |
| Prod Model: |
H13/SKD61/1.2344/4Cr5MoSiV1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Alloy Steel Plate |
| Ut Class: |
According to Standard of Sep 1921/84,100% Volume, |
| Melting Process: |
Eaf+ESR |
| Size: |
50-500mm |
| Length: |
2000-5800mm |
| Process Technique: |
Hot Forged or Rolled |
| MOQ: |
5 Tons |
| Payment Term: |
L/C at Sight or T/T |
| Shape: |
Plate/Flat Bar/Round Bar/Sheet |
| Standard: |
GB |
| Technics: |
Forged |
| Alloy: |
Alloy |
| Special Use: |
Mold Steel |
| Application: |
Die Steel Bar, Die Steel |
| Surface: |
Treatment: Black, Black/Polish/Machined |
Product Description
1.2344 Mould steel for forged tool steel1, Features
a, May be cold-hobbed in the annealed condition.
b,Good cutting and polishing performance.
c,Hot work mould steel.
d,Tools may be water-cooled in service.2, Application
Used for making hot squeeaing mould ,forging mould and embeddeb lump.
a,Suitable to manufacturing aluminum, zinc, copper alloy extrusion die, die casting, hot forging die and hot shear blades, etc.
b,Casting dies for aluminium, magnesium and zinc.
c,Extrusion mold of copper alloy, die-casting mold.
d, Shear blades for hot work and hot swaging dies.

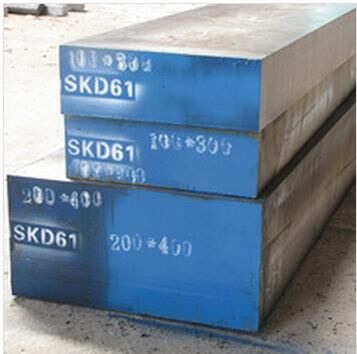

3,SKD61 Hardness: annealing 235 ~ 205 HB, quenching ≥50 HRC4,Delivery Detail:within 30 days.5,Grade | similar steel grades |
| AISI/SAE | DIN | JIS | SIAU | GB |
| H13 | 1.2344 | SKD61 | ---- | 4Cr5MoSiV1 |
7,Chemical composition(%)| Chemical compositions |
| C | Si | Mn | P | S | Cr | Mo | V |
| 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 |
8,Size| Sizes | Round bar | Diameter(mm) | Length(mm) |
|
| Max 800 | Max 9000 |
|
| Plate | Thickness(mm) | Width(mm) | Length(mm) |
| Max 800 | Max 1500 | Max 6000 |
| The above is our regular size, We also can provide customized sizes! |
