Thickness:
20--300mm
Width:
200--800mm
Type:
Steel Plate
Standard:
DIN
Technique:
Forged
Special Use:
Mold Steel
Application:
Tool Steel Bar
Steel Grade:
Tool Steel
Composition:
Alloy Steel
Shape:
Plate
Surface Treatment:
Machined Surface
Product Description

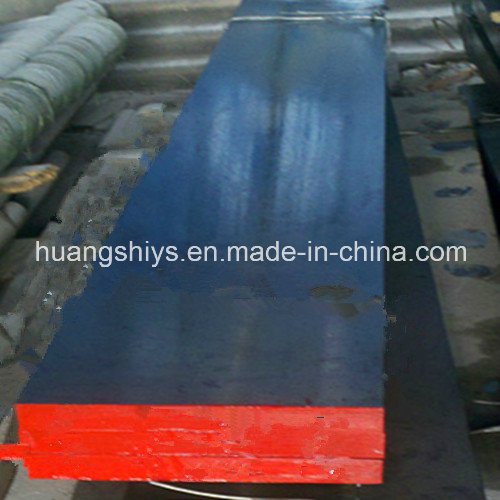

1.2365 steel
Chemical Composition(%)
C
Si
Mn
P
S
Cr
Mo
V
0.28-0.35
0.10-0.40
0.15-0.45
≤0.030
≤0.030
2.70-3.20
2.60-3.00
0.40-0.70
Specialty
Excellent machinability, easy to be processed, shorten the time of making molds. No need to be hardened after processing, free from quenching deformation, cracks and telescopic High resistance of thermal cracking, good strength in high temperature, long-life of molds. Use
Light alloy pressure forming; steel forging forming the mold; extrusion die; heavy alloy production of iron as well as guide sleeve Pressure forming die mold; die casting mold (upper die and lower die inserts, thimble and sleeve cold punching, hot shear and wear parts. Extrusion die (die, the die pad, the extruder barrel, punch); aluminum, copper, magnesium and the hot forming die; plastic Heat Treatment
EAF: Electric Furnace+LF+VD(Optional) ESR: Electric Furnace+LF+VD+Eleroslag Remelted(Optional) UT Class According to Standard of SEP 1921/84,100% Volume, Level C/c, D/d or E/e
Huangshi Young Sea Industry And Trade Co., Ltd. is located in Huangshi City, Hubei Province, construction in 2009 years. We offer Machining components to Huangshi Tri-Ring Forging Machine Co., Ltd. And Hubei Xinyegang Steel Auto Parts Co., Ltd.
We are also the tool steel and casting steel distributor & exporter in Huangshi China. And we are the exporting company of the factory:
Huangshi Shengda Mould Material Co., Ltd. The equipments of our factory are:
1. Two medium-frequency induction furnaces ( capacity 3.5 ton each);
2. Six forging hammers: One for 1.0 ton, one for 1.5 ton, one for 2.0 ton, one for 3.0 ton, one for 6.0 ton, one for 8.0 ton;
3. Four annealing furnaces: Two furnaces for 20.0 ton, two furnaces for 30.0 ton;
4. Three peeling machines;
5. One planomiller (4000*1000), One horizontal drilling machine and boring lathe.
We can produce one hundred kinds of products, including cold work tool steel, hot work tool steel, plastic mould steel and many other alloy tool steel. We are mainly supplying tool steels as below aboard:
We can offer Casting Steel against your detailed drawings. We mainly manufacture cylinder, parts of vessel such as anchor, anchor bolt, shackle, and other different kinds of valves, flanges, fittings, couplings.
Young Sea Industry's Mission:
Find right product to satisfy what customer need.
Optimize and control to adapt the discrepancy between our factory and purchaser.
Enhance the customer's advantage
We could accept the order base on your modified chemical composition, size and required manufacturing process. Welcome to Young Sea
