| Price: | US $ 200-227.5/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

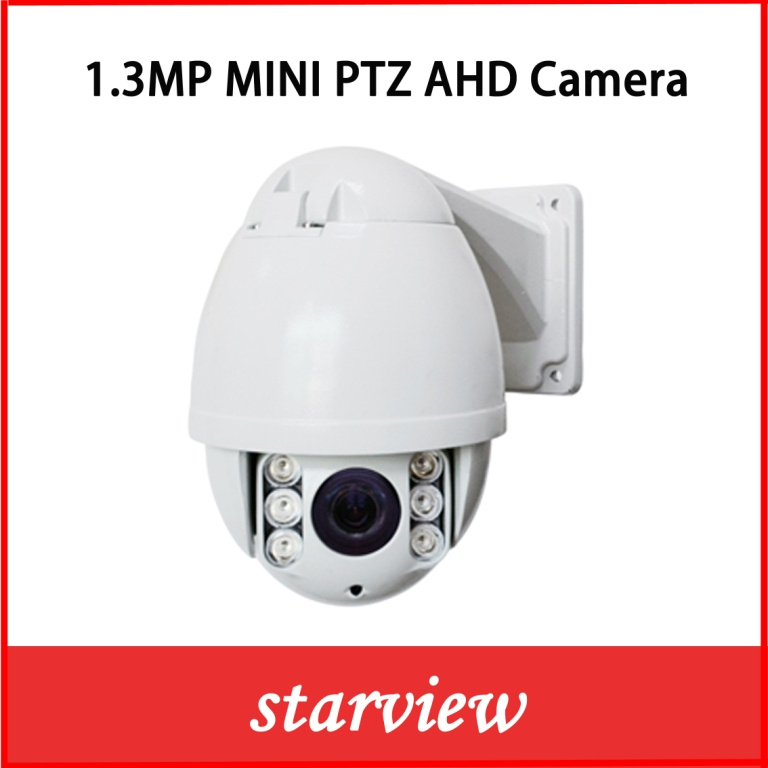

| Prod Model: | SV60-MAHD10A12-13 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: | 960p(1280*960)@25/30 Fps |
| Lens: | 5.1mm~51mm 10X Zoom Lens |
| Image Sensor: | 1/3" CMOS Sensor |
| Protection Grade: | Waterproof IP66 |
| Power Supply: | DC12V/4A |
| Technology: | Infrared |
| Style: | Dome Camera |
| Type: | CCTV Camera |
| Sensor: | CMOS |
| HDMI Format: | 960P |
| Kind: | Autofocus Lens |
| Certification: | FCC |
| Feature: | High Definition |
| Effective Distance: | ≧30m |
| Sensor Size: | 1/3 inch |
| Remote Control: | With Remote Control |
| Horizontal Resolution: | 960p |
Model | SV60-MAHD10A12-13 | ||
| Camera | Sensor | 1/3 "1.3M scan CMOS | |
| Pixels | 1280*960 | ||
| Zoom | 10x Optical Zoom, 10x Digital Zoom | ||
| 3D DNR | Low/Middle/Hight/Off | ||
| AGC | Auto / Manual | ||
| Electronic shutter | 1/2 - 1/20,000s | ||
| Day&Night | Auto/Day/Night | ||
| S/N(Y signal) | 50dB | ||
| White balance | Auto, indoor, outdoor, lamp, manual mode | ||
| Min.illumination | 0.1Lux (color); 0.01Lux (B/W) and 0 Lux (IR on) | ||
| Lens | Focus mode | Auto & Manual | |
| Focal length | 5.1mm~51mm | ||
| Zoom speed | About 3.5S | ||
| Viewing Angle | D: 64.2°±5%(Wide) ~7.3°±5%(Tele) H:51.8°(Wide) ~ 5.86°(Tele) V: 39.1°(Wide) ~ 4.4°(Tele) | ||
| Fuction | Horizontal Range | 360° | |
| Vertical range | 93° | ||
| Horizontal Speed | 200°/s | ||
| Vertical Speed | 80°/s | ||
| Preset | 128 | ||
| Preset time | 1 ~ 60S | ||
| Fuction | 360 scan /swing/Sequence | ||
| Group | 3 Group (each group 16 Presets, time and speed can be set) | ||
| Transmission distance | Coaxial cable transmission over 500 meters | ||
| Video standard | AHD standard | ||
| IR LEDs | 6PCS LED ARRAY | ||
| Power supply | DC12V/4A | ||
| Power consumption | <25W | ||
| Working | Indoor (-10ºC~+40ºC) outdoor (-40°C~+60°C) | ||
| Mount | Wall mount | ||
