| Prod Model: |
ET-HF-F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
40kg |
| Work Environment: |
Outdoor |
| Outpower: |
2-50watt |
| Gain: |
80-95db |
| Type: |
Signal Repeater |
| Standard: |
Standard |
| Lightning Protection: |
With Lightning Protection |
| Certification: |
ISO |
| Condition: |
New |
Product Description

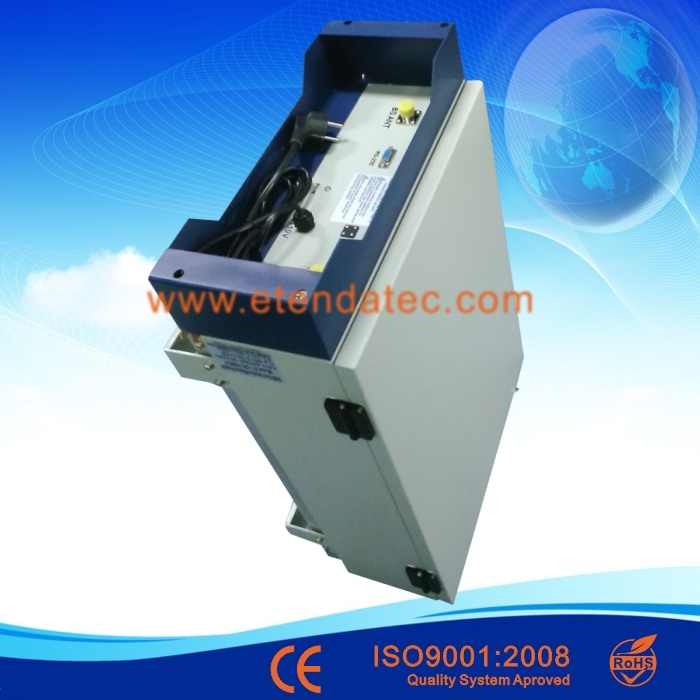

1-50W outdoor IP65 VHF RF Signal Booster Features:1) Waterproof professional Die-casting cabinet suitable in outdoor and indoor
2) Pole-installation, Wall-installation and Tower-installation are available
3) Cavity filter and IF SAW gives higher isolation, better gain flatness, higher stability, and lower noise figure;
4) Allowing for continuous gain adjustment and gain contrast;
5) ALC technology used to provide auto amplitude fixing.
6)
Press-key , Local PC GUI and remote GSM MODEM managementSpecifications| Item | Specification |
|
| Up-Link | Down-Link |
| Frequency range | 136 – 174 Mhz | 136 – 174 Mhz |
|
| 350 – 520 Mhz | 350 – 520 Mhz |
|
| 806 – 821Mhz | 851 – 866Mhz |
|
| Customized | Customized |
|
| Band width (-3dB) | available upon request |
|
| Downlink to Uplink Separation | 3Mhz min |
|
| Output Power | 30-37 dBm(1-5W) | 30-46 dBm(1-40W) |
|
| Nominal Gain | 65-95±3dB |
|
| Gain Flatness | ≤ 3dB (p-p) |
|
| MGC ( Step Attenuation ) | ≥ 31dB / 1dB step |
|
| AGC Rang | 0-30dB |
|
| Max. ALC level | ≥25dB |
|
Intermodulation attenuation
) | ≤-45dBc |
|
| Spurious emission | 9kHz-1GHz | ≤-36dBm |
|
| 1GHz-12.75GHz | ≤-30dBm |
|
| Noise Figure. | ≤5dB(at maximum output power) |
|
| Group delay | ≤5us |
|
| VSWR | ≤1.5 |
|
| Frequency stability | ≤ 0.01ppm |
|
| RF Connectors | N – female |
|
| Impedance | 50 Oms |
|
Supervising Specifications
| Self diagnostic platform | Microprocessor based |
| Alarms | Yes, amplifiers status, power amplifiers status, power supply failure, battery backup failure, temperature, AGC, RF overload, poor antenna isolation. |
| Local management and supervising | Built-in gain adjustment interface and alarms/status LEDs, PC access via RS-232 (OMS) |
| Remote management and supervising | Remote access via wireless GSM SMS modem OR GPRS Modem OR Ethernet, option RC (OMS) |
| AC Supply | 110/220 VAC or 12/24/28/48VDC |
| Housing | IP65 |
| Temp rang | -30 to +60 ºC |
