| Prod Model: |
omp 36/50/80/125/160/200/315/400/500 orbit motor |
| Markets: |
South America,Eastern Europe,Southeast Asia |
| Usage: |
Hydraulic Oil |
| Certification: |
ISO9001 CE |
| Application: |
Plastic Machine, Agriculture Machine |
| Motor Flange Shape: |
Square and Rhombus Flange |
| Motor Material: |
Cast Iron |
| Processing: |
Forging & Cutting &Phosphating |
| Motor Shafts: |
Straight, Splined and Tapered |
| Warranty: |
One Year |
| Motor Operate: |
with Electrical Machine/Pump /Cyclinder/Valve/ |
| Colour: |
Black or as Your Request |
| Type: |
Hydraulic Motor |
| Hydraulic Actuator: |
Hydraulic Motor |
Product Description

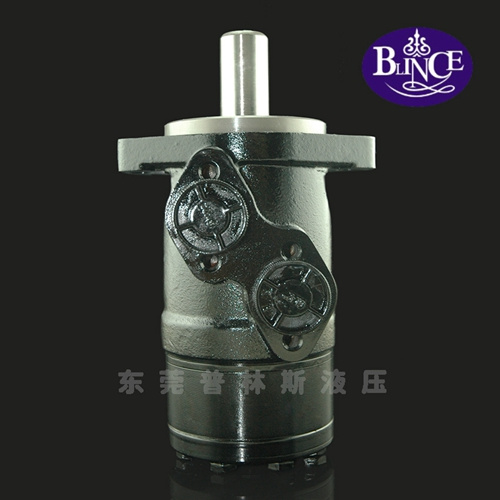

BMP120-2AD hydraulic orbit motor (151-0313)

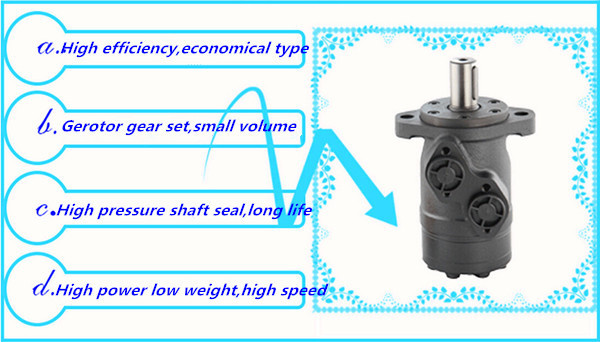

OMP series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weight.
Geometric displacement (cm3/rev.): 120.2
Max. speed (rpm): 490
Max. torque (Nm): 236
Max. output (kW): 10.0
Max. pressure drop (MPa): 14
Max. flow (L/min): 60
Flange: 2-Ø13.5 Rhomb-flange , pilot Ø82.5×8
Shaft:Shaft Ø25,parallel key 8x7x32
Port and drain port: G1/2 Manifold Mount 4×M8, G1/4
Blince company: Blince profssion supply all series hydraulic motor like OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY
/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series /V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor plscontact me. Thanks! !
Blince hydraulic motor perfect replaceParker hydraulic motor
White hydraulic motor
Eton hydrualic motor
M+S hydraulic motor
Amy chenTel: +8613560881920
| type | OMP
OMPH
36 | OMP
OMPH
50 | OMP
OMPH
80 | OMP
OMPH
100 | OMP
OMPH
125 | OMP
OMPH
160 | OMP
OMPH
200 | OMP
OMPH
250 | OMP
OMPH
315 | OMP
OMPH
400 | OMP
OMPH
500 |
| Geometric displacement | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 |
| Max.speed.(rpm) | con. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| | int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 |
| Max.torque(N.m | cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 383 | 375 | 360 | 385 |
| | int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 |
| Max.output(KW) | cont. | 8.0 | 10.0 | 10.0 | 11.0 | 10.0 | 10.0 | 10.0 | 8.5 | 7.0 | 6.0 | 5.0 |
| | int | 11.5 | 12.0 | 12.0 | 13.0 | 12.0 | 12.0 | 12.0 | 10.5 | 8.5 | 7.0 | 6.0 |
Max.pressure
Drop(Mpa) | cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| | int | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 |
| Max.flow(L/min) | cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| | int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| OMP250-2AD | OMP250-2AD |
| OMP250-2CD | OMP250-2CD |
| OMPH250-H2RS | OMP250-2ED |
| OMP250-2ED | OMP250-4BD |

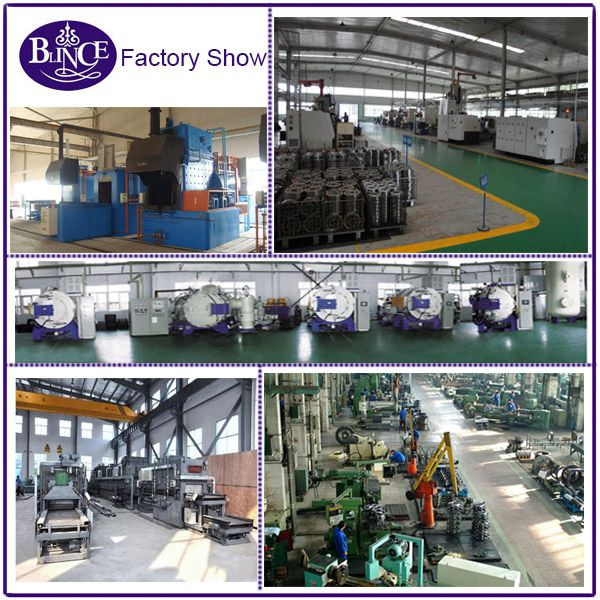

Established in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid m...MoreEstablished in 2004, Dongguan Blince Machinery & Electronics Co., Ltd. Specializes in the business of hydraulic motor, cycloid motor, vane pump and hydraulic valve. Located in Changan, Dongguan, Guangdong, we enjoy convenient access to major transportation networks. Our company covers an area of 30, 000 square meters and has around 361 people staff members. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. With stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
