| Prod Model: |
JL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Air Flow: |
22000 M3/H |
| Type: |
Ventilation Fan |
| Speed: |
1 Speed |
| Power Supply: |
Electric |
| Power: |
100W-300W |
| Timer: |
Without Timer |

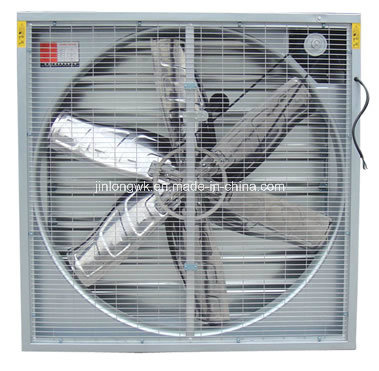

Product Description
Advantage:
1.Fan housing: strength fiberglass.
2.Shutters: good plastic
3.Fan Propeller: 6pcs or 3pcs blades of propeller made by mould pressing.
4.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
5.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
6.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
Exhaust Fan's Housing
corrosion resistant fiberglass housing
FRP molded impact resistant with U.V. protection for better durability, and life extra liner FRP resin inside for easy cleaning and minimal dirt and disease build-up and maximum air flow
flush mount design eliminates any protrusions or obstructions in the inside area
self draining sloped housing is quick and easy to clean FRP
FRP molded has smooth shaped and low air restriction
| Model | Diameter
blades
(mm) | Blades
speed
(r/min) | Motor
speed
(r/min) | Air
flow
( m³ /h) | Noise decibel |
power
(w) | Rated
voltage(v) | Height
(mm) | Width
(mm) |
| JLF(e)-830 | 720 | 660 | 1400 | 22000 | ≤60 | 550 | 380 | 830 | 830 |
| JLF(e)-900 | 750 | 630 | 1400 | 28000 | ≤65 | 370 | 380 | 900 | 900 |
| JLF(e)-1000 | 900 | 610 | 1400 | 30000 | ≤70 | 750 | 380 | 1000 | 1000 |
| JLF(e)-1100 | 1000 | 600 | 1400 | 32500 | ≤70 | 750 | 380 | 1100 | 1100 |
| JLF(e)-1220 | 1100 | 460 | 1400 | 38000 | ≤70 | 750 | 380 | 1220 | 1220 |
| JLF(e)-1380 | 1250 | 439 | 1400 | 44000 | ≤70 | 1100 | 380 | 1380 | 1380 |
| JLF(e)-15300 | 1400 | 325 | 1400 | 5580 | ≤70 | 1500 | 380 | 1530 | 15300 |
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
