| Prod Model: |
QW/WQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cast: |
Iron |
| Certificate: |
CE,CCC,ISO9001 |
| Shipping: |
by Sea |
| Material: |
Cast Iron |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Application: |
Sewage Pump |
| Theory: |
Centrifugal Pump |
| Type: |
Submersible Pump |
| Industry: |
Submersible Pump |
Product Description
WQ non-clog submersible sewage pump
Product introduction
WQ non-clog submersible sewage pump/drainage pump. Impeller, designed with hydraulic model and made by precision casting, has the advantages of energy-saving, anti-winding and non-clogging, etc. At the same time, this sewage pump has a unique effect in the carriage of solid particles and long fibers garbage. Single or dual impeller structure ensures the sewage pump has the higher efficiency when it has bigger flow. So this kind of sewage pump is an ideal drainage pumps for industries and cities.
Application and Installation
This pump is widely applied in many fields, such as industry, agriculture, mine, building construction, environment protection, etc. for example, mud water, grey water, sewage, excrement, domestic wastewater, etc. This pump is the ideal equipment for construction site, desilting of pool as well as irrigation and drainage in agriculture.
Operating Limits
1. Trans medium's PH: 6-8.5
2. Fluid temperature limit: <40 °C
3. Max ambient temperature: <40 °C
4. Operating depth: <5m
5. Pump working position: More than 0.5m over the bottom, should not be inserted into sludge.
Materials
Motor housing: Cast iron
Impeller: Cast iron
Motor wire: Copper
Mechanical seal: Silicon carbide- Graphite
Shaft: CS 45# or SS
Motor
1. 2-pole induction motor
2. 3-phase,50hz/60hz
3. Insulation Class: B
4. Protection: IP68

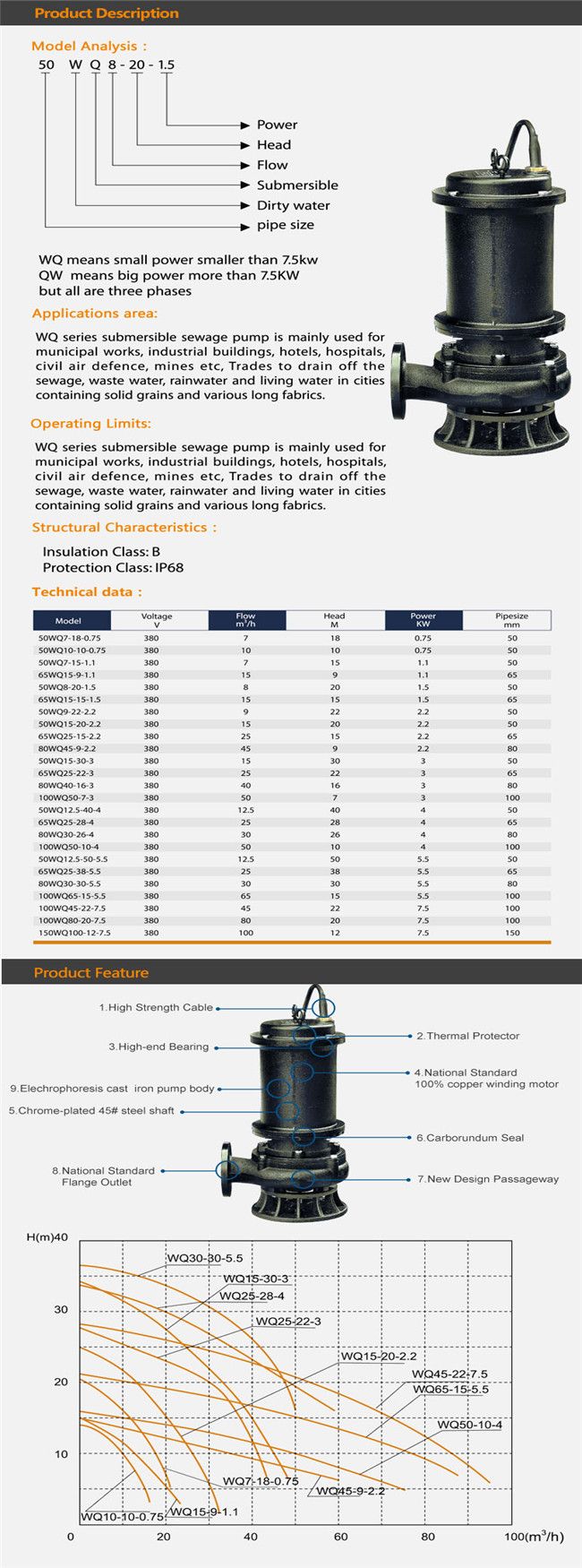

Model Instruction
WQ15-15-1.5
1.5: Rate power(kw)
15: Rated head(m)
15: Rated flow(m3/h)
WQ: Model code, and no "D" means three-phase
Technical Data
| Model | Voltage | Power(kw) | Flow | Head | Outlet |
| V | 50Hz | (m3/h) | (m) | (mm) |
| WQ15-9-1.1 | 380 | 1.1 | 15 | 9 | 65 |
| WQ15-15-1.5 | 1.5 | 15 | 15 | 50 |
| WQ25-10-1.5 | 25 | 10 | 65 |
| WQ9-22-2.2 | 2.2 | 9 | 22 | 50 |
| WQ15-20-2.2 | 15 | 20 | 50 |
| WQ25-15-2.2 | 25 | 15 | 65 |
| WQ45-9-2.2 | 45 | 9 | 80 |
| WQ15-30-3 | 3 | 15 | 30 | 50 |
| WQ25-22-3 | 25 | 22 | 65 |
| WQ40-16-3 | 40 | 16 | 80 |
| WQ50-7-3 | 50 | 7 | 100 |
| WQ12.5-40-4 | 4 | 12.5 | 40 | 50 |
| WQ25-28-4 | 25 | 28 | 65 |
| WQ30-26-4 | 30 | 26 | 80 |
| WQ50-10-4 | 50 | 10 | 100 |
| WQ12.5-50-5.5 | 5.5 | 12.5 | 50 | 50 |
| WQ25-35-5.5 | 25 | 35 | 65 |
| WQ30-30-5.5 | 30 | 30 | 80 |
| WQ65-15-5.5 | 65 | 15 | 100 |
| WQ100-9-5.5 | 100 | 9 | 150 |
| WQ12.5-60-7.5 | 7.5 | 12.5 | 60 | 50 |
| WQ30-40-7.5 | 30 | 40 | 65 |
| WQ65-25-7.5 | 65 | 25 | 80 |
| WQ80-20-7.5 | 80 | 20 | 100 |
| WQ100-12-7.5 | 100 | 12 | 150 |
| WQ40-50-11 | 11 | 40 | 50 | 80 |
Voltage 380V fluctuation for 10% more
Zhejiang Qifeng Pump Industry Co., Ltd. is a joint-venture enterprise. It was founded in 1991, major in design and product different pumps, such as submersible pump, pipe pump, peripheral pump, self-priming pump, centrifugal pump, swimming pool pump, canned motor pump, and so on. Our product has formed 14 series, including more than 80 sorts. Our company covering more than 12000 square meters working area, more than 200 employees.
MANAGEMENT&QC: Unique 3 steps tests, including motor test, pump test and overall unite test to guarantee the best quality.
EQUIPMENT: 5 advanced flow line production and an online self-measurement system.
Our aim is "High quality, high profit to create". We produce "KENFEI" series product with the features of exquisite technology, elegant and unique designs. Our products have been exported to more than twenty countries and regions, such as Southeast Asia, Middle East, USA, Europoean, South Africa, etc.
MARKETING WORK: Covering more than 35countries and areas around the world.
CERTIFICATES: Having apparently obtained international safety verifications from CE. COC. CCC etc
We are warmly welcome to our customers, old and new, both at home and abroad, to negotiate business with us.
