Product Description

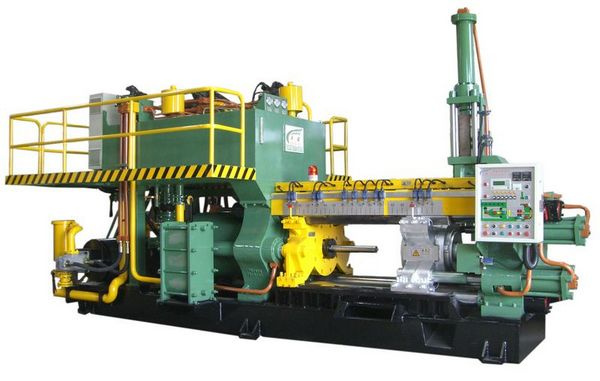

Aluminum extrusion press machine
The main feature of ZJ serial aluminum extrusion press is horizontal, four tie rods (pre-stressing force system), hydraulic system, PLC for electric power, four cylinders for locking the extrusion die, high flow for fast speed, semi-automatic control, easily operated,
Feature:
1. Stronger structure. Adopt high quality and thickness steel to make sure the whole set is firm and stable enough when the machine is running. The main cylinder adopts forged steel with heat treatment to extra-long service life. Meanwhile, the stronger structure of the whole set can prolong the lifespan of machine.
2. Pump: This extrusion press is equipped with variable piston pump with zero flow control function; It can automatically control the output of pump according to the change of pressure.
3. Electric power consumption is low and oil temperature does not easily rise up.
4. Extrusion working velocity is adjustable speed loop of 6 sections of velocity of electronic control. So speed control is also available.
5. The hydraulic cylinder with the function of overpressure protection, safety for operators.
6. Four pieces cylinders for die-locking, stronger locking and opening force, stable and comfortable container moving;
7Machine seat: Extra-rigidity design, welded jointing parts, with back fire treatment for hardening and strengthening.
|
Specifications |
|
|
|
1 |
Aluminum billet specifications |
|
|
Aluminum billet dimension |
Φ120mm × 600mm |
|
|
External diameter: |
Φ120mm |
|
|
Length: |
Φ600mm |
|
2 |
Extrusion system |
|
|
|
Main cylinder piston diameter |
780mm |
|
|
|
Total extrusion force |
210kg/cm² |
1087.35T (1196.09UST) |
|
|
Main cylinder for extrusion force |
210kg/cm² |
1002.95T |
|
|
Side cylinder for extrusion force |
210kg/cm² |
42.2T× 2=84.4T |
|
|
Container diameter |
Φ180mm |
|
|
Container close |
160kg/cm² |
37T× 2=74T |
|
|
Container open: |
160kg/cm² |
50T× 2=100T |
|
|
Shears cylinder diameter |
Φ150mm |
|
|
Shear force: |
160kg/cm² |
40T |
|
|
The force of cylinder of mold base |
160kg/cm² |
15T |
|
3 |
Stroke |
|
|
|
|
Main cylinder piston |
1350mm |
|
|
|
Container |
300mm |
|
|
|
Main shear |
560mm |
|
|
4 |
Theoretical velocity |
|
|
Fast forward speed of the main cylinder |
396mm/s |
(adjustable) |
|
|
Fast rewind speed of the main cylinder |
362mm/s |
(adjustable) |
|
|
Extrusion speed |
2-12 mm/s |
(adjustable) |
|
|
The speed of container close |
143 mm/s |
|
|
|
The speed of container open |
111mm/s |
|
|
|
The speed of shear down |
216mm/s |
|
|
|
The speed of shear up |
400mm/s |
|
|
5 |
Non-extrusion time |
less than 18 seconds per stroke |
