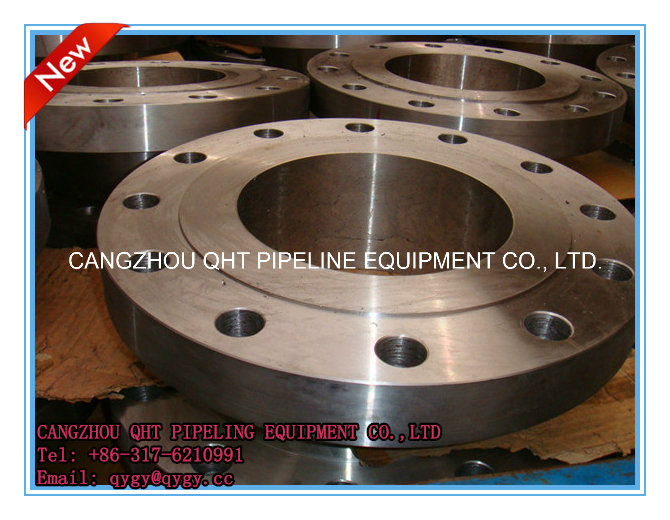

12crmov Alloy Steel Welding Neck Flanges

Name: 12crmov Alloy Steel Welding Neck Flanges
Brand: china-castingforging.com
SKU: 782554105
Availability: InStock
Rating: 4.4 (64 reviews)

Price:	US $ 1100-1400/Ton
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Ton
Pay Type:	L/C,T/T,D/P

Contact Supplier

CANGZHOU QHT PIPELINE EQUIPMENT CO., LTD.

Showroom Product Company Profile

Prod Model:	10" * 900#
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1/2"-200"
Technical:	Forging
Certificate:	ISO9001:2008, SGS, BV, API etc
Productivity:	500tons/Month
Standard:	BSW
Type:	Welding Flange
Material:	Alloy Steel
Manufacturing Way:	Casting

Product Description

Alloy Steel Flange:
Alloy flange is mainly used in the special characteristics of piping and pipelines, mostly for high-temperature & high-pressure position. The common materials are 12Cr1MoV, 15CrMo, P91, P22, 10CrMo910, etc.

1.Product details:

Materials	Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on
	P250GH, P280GHM 16MN, 20MN ,20#
	Stainless Steel: ASTM A182, F304/304L, F316/316L and so on
	Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on
Types	Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed
	Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
	Blind Flange/Blank flange, Lap Joint Flange /LJ Flange
	Socket Weld Flange/SW Flange Threaded Flange/Screwed Flange
	Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
	Custom Flange/Special Flange Hot/Cold/Electro Galvanized Flange
Standards	ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
	JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
	BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
	GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Size	DN15 (1/2") to DN5000 (200")
Pressure &Ratings	150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
	PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
	PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
	PN0.6Pa, PN1.0Pa, PN1.6. PN2.5, PN4.0, PN6.3. -GOST12821-80
	600kPa, 1000.1600.2500.4000.-SANS 1123
	5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
	TABLE D, TABLE E ,TABLE F-BS 10, AS2129
	CLASS D, CLASS E, CALSS F, AWWA C207
Technical	Forging
Surface Treatment	Rust Prevention , Black Paint Coating or Phosphate Treatment with Black Color
	Varnish Paint Coating, Varnish Oil Coating,
	Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30μm)
	Hot Dip Galvanizing Coating (Coating Thickness 200μm around)

2.Application & Type:

Application	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
	and general pipes connecting projects etc.

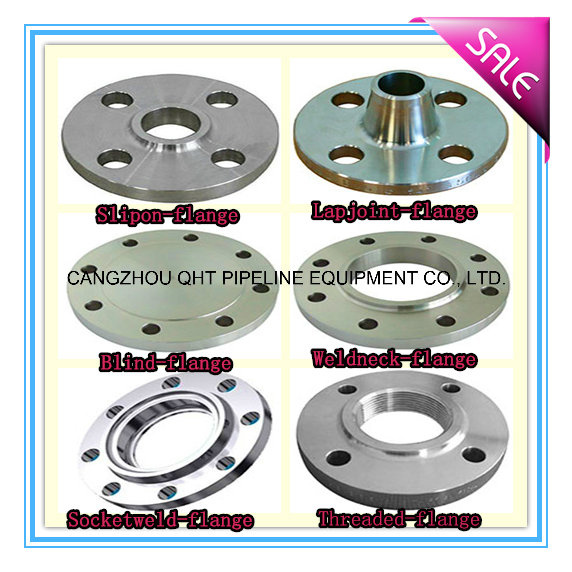

Type:

1) Weld neck flange(WN)
1, Preferred for high-pressure, subzero or elevated temperature
2, Hub is tapered and bored to match pipe's inside diameter so flow is not restricted, preventing turbulence and reducing erosion
3, Easily radiographed and provides excellent stress distribution

2) Blind Flange (BL)
1, Used to close ends of piping
2, Has no bore
3, Permits access to sealed lines

3) Lap Joint Flange (LJ)
1, Used where bolt alignment or access for cleaning is required
2, Similar to slip-on flange when used with lap joint stub end
3, Radius at intersection of flange face and bore to match lap joint stub end

4) Slip On Flange(SO)
1, Not normally used in high-stress applications due to low hub and weld attachment
2, Silps over outside of pipe
3, Inside of flange welded at hub and end of pipe

5) Socket Welding Flange (SW)
1, For small-diameter chemical processes, hydraulic and stream distribution lines
2, Similar to slip-on flange
3, Counter bore matches pipe bore, allowing unrestricted flow
4, Counter bore from hub side fits pipe's outer diameter - can insert pipe in socket with fillet weld at hub

6)Thread Flange (TH)
1, Used where welding would would be hazardous
2, Designed for low-pressure and non-cyclic applications
3, Bore is threaded to match pipe thread
4, Tapered to seal pipe and flanges

7)Other flanges
Orifice, Expander, Reducing, Lightweight, Studding Outlets, Long Weld Necks,Metric, Navy Drawings

3.Certificate & Inspection:

ISO9001:2008, SGS, BV, API etc.

Quality Control System-Well Equipments and Machinery-Well Workers and Engineers

4.QA & DOC:

Product Certificate, Chemical Composition Report, Mechanical Properties Report, UT Report, Heat Treatment Report, Dimensions Check Report.

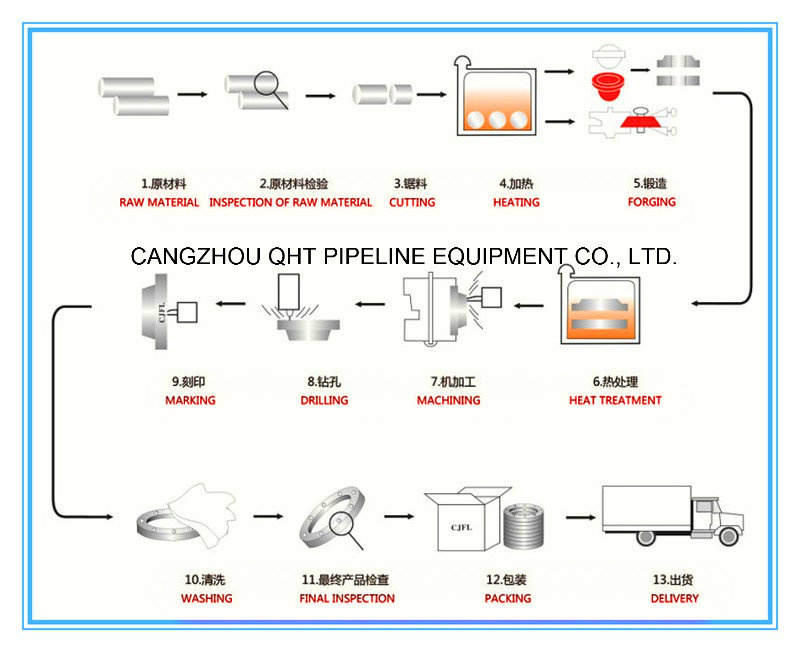

5. Production process:

6.Delivery Time:

According to customer's requirement(within 5-30 working days)

7. Productivity: 500Tons/Month

8. Other steel pipe fittings:

Descriptions		Size		Remarks
Elbow	45°/60°/90°/180°	1/2"-48"	Standard: ANSI; BS; JIS; DIN; MSS; etc
Flanges	PL/SO/WN/SW/BL/IF	1/2"-48"	Material: Carbon steel; Stainless steel; Alloy steel; Cast iron; etc
Reducer	CON/ECC	1/2"-48"	Structure Technique: Forged and casting flanges.
Tees	Equal/reducer	1/2"-48"	Surface Coating technique: Sand Blast; Lacquering;
Nipple	Threaded/Hex/ Round	1/2"-48"	Surface finishing: black, electro-galvanized, hot-galvanized
Union	Male/female	1/8"-6"	Pressure:3000#-9000#
Outlet	Weldolet/threadolet/socko let	1/8"-6"	Standard:MSS SP-97
Cap	BW CAP	1/2"-48"	Best price&high quality
Coupling	SW/Threaded	1/8"-6"	PLE;PSE;TLE,BSE;TOE
Plug	Square/hex/round	1/8"-4"	Large QTY&Lower price
Bushing	Round/Hex/Flush	1/8"-4"	Pressure:3000#-9000#
Swaged nipple	Threaded/Plain	1/8"-4"	SCH10S-SCH80

9. Others:

      1) Special design available according to requirement
      2)Anti-corrosion and high-temperature resistant with black painting
      3) All the production process are made under the ISO9001:2000 strictly .

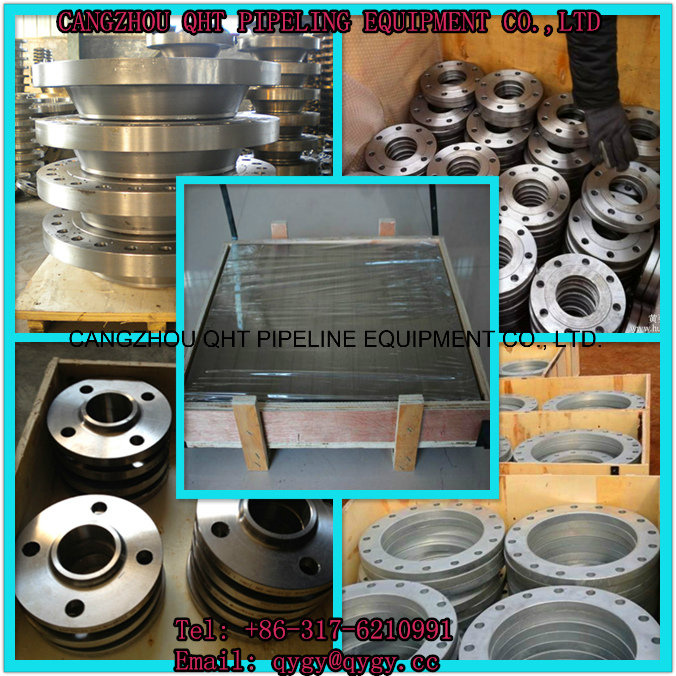

10.  Packing:

Anti-rust Oil, Transparent/Yellow/Black Anti-rust Paint,Zinc, Hot dipped Galvanized.

Fumigated Plywood/Wood Pallet and Case Wooden Pallets vs Wooden Cases or As Customers' Requirements.

11. Payment terms:
  1)  T/T;
  2) L/C at sight;
  3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the    forwarder;
4) 30% Deposit in advance and balance should be paid after you get the copy of B/L based on we nominate the forwarder.

12. Clients:

Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

Why Choose us:

1) Fully Machining Services:
Gringing parts , Machining parts, CNC milling and turning parts , CNC milling parts, CNC
metal parts, grinding parts, stamping parts, casting and forging parts, assembly service.

2) Various Machining Materials:
Metal parts, stainless steel parts, alloy steel parts  ,brass parts, bronze parts, copper
parts, aluminum parts, plastic parts, ect.

3) Various Finishes:
Anodizing, Electroplating, Polishing, Powder Coating, Blacken, Hardening, Painting and
many other treatment of the parts.

4)Quality Assurance :
IPQC inspect each precision grinding parts during every processing step; 100% inspection before shipment by micrometer, height gauge, projector measuring machine, coordinate
measuring machine(CMM), ect. Any disqualification will be responsible by us.

5) Advantage:
1>.Non-standard/standard/OEM/ODM/customized service provided
2> No MOQ, no quantity limited
3 >Fast lead time
4> Can meet DIN,JIS,ASTM,AISI,BS,GB standard
