Product Description

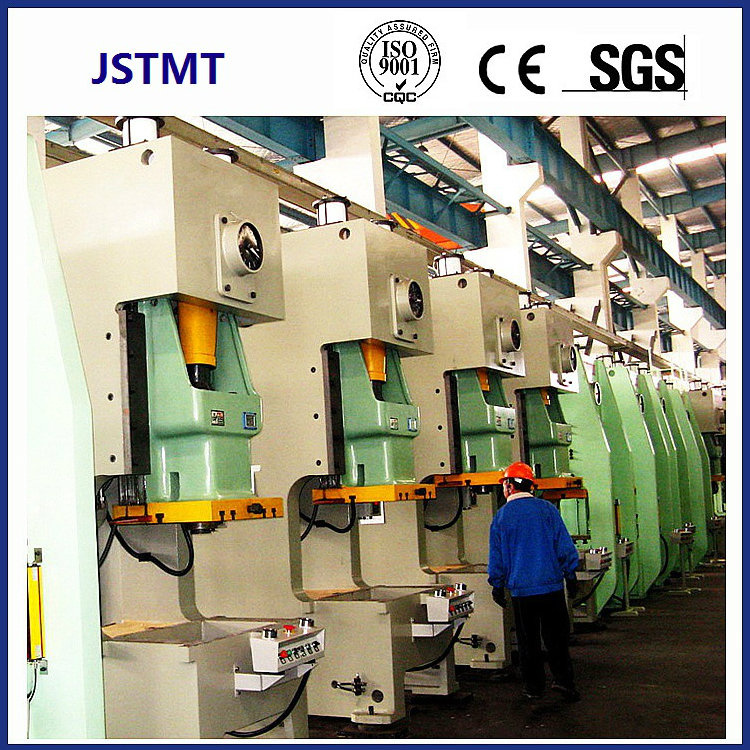

160ton Power Press, Pneumatic Power Press, C Type Power Press (J23) - China Power Presses, Power Press Machine(JH21-160):
Power Press Feathers:
1. Steel-welded frame, high rigidity and less deformation.
2. Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die.
3. Pneumatic dry combination fdction clutch-brake, Iow noise, long service life, to ensure reliable safety and flexible action.
4. Hydraulic overload protection device achieving high sensitivity in effectively protectingagainst overload, to ensure convenient and reliable operation
5. Automatic grease lubrication system, to ensure smooth operation of the machine
6. PLC electrical control system allows various auto-equipment reprogrammed accord-LNG to different requirements and perform various functions, to ensure high reliabilityand high adapability.
7. Emergent stop, inching, single and continuous movement.
8. Photo electric protector, transmission output axle, feeder, air cushion and other op-tional accessories are available for the power press subject to the useris denands.
Models specification of C-Frame Fixed Table Power Presse ( JH21 Series):
| Parameters | R | Unit | JH21-
25 | JH21-
45 | JH21-
60 | JH21-
80 | JH21-
125 | JH21-
160 | JH21-
200 | JH21-
250 | JH21-
315 |
| Nominal pressure | Pe | KN | 250 | 450 | 600 | 800 | 1250 | 1600 | 2000 | 2500 | 3150 |
| Nominal pressure stroke Sp | Sp | mm | 3 | 4 | 4 | 5 | 6 | 6 | 6 | 6 | 7 |
| Slide stroke | S | mm | 80 | 120 | 140 | 160 | 180 | 200 | 250 | 250 | 250 |
| Stroke frequency | Fixed | n | times | 100 | 80 | 70 | 60 | 50 | 45 | 45 | 30 | 30 |
| Variable | /min | 60-100 | 50-80 | 45-70 | 40-60 | 35-50 | 30-45 | 25-45 | 20-30 | 20-30 |
| Die height | H2 | mm | 250 | 270 | 300 | 320 | 350 | 400 | 450 | 500 | 500 |
| Die Height Adjustment | t | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 120 |
Distance between slide center
and machine | C1 | mm | 210 | 225 | 270 | 310 | 350 | 390 | 430 | 450 | 450 |
| Vertical columns distance | d1 | mm | 450 | 500 | 560 | 620 | 680 | 720 | 900 | 980 | 980 |
| Slider bottom size | L-R | a | mm | 360 | 410 | 480 | 540 | 620 | 700 | 880 | 950 | 950 |
| F-B | b | mm | 250 | 340 | 400 | 460 | 520 | 580 | 650 | 700 | 700 |
| Size of handle hole | Dia | d | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 |
| Depth | I | mm | 65 | 60 | 70 | 65 | 90 | 100 | 100 | 130 | 130 |
| Size of worktable | L-R | C | mm | 720 | 810 | 920 | 950 | 1070 | 1170 | 1390 | 1500 | 1540 |
| F-B | D | mm | 400 | 440 | 520 | 600 | 680 | 760 | 840 | 880 | 880 |
| Thickness of worktable | H3 | mm | 80 | 110 | 130 | 140 | 155 | 165 | 180 | 190 | 190 |
| Worktable height | H1 | mm | 780 | 800 | 900 | 900 | 900 | 900 | 920 | 920 | 1000 |
| Size | F-B | A | mm | 1346 | 1435 | 1540 | 1765 | 2040 | 2305 | 2690 | 2660 | 2720 |
| L-R | B | mm | 945 | 1075 | 1200 | 1200 | 1320 | 1420 | 1540 | 1640 | 1680 |
| H | H | mm | 2120 | 2391 | 2570 | 2725 | 3035 | 3215 | 3810 | 3785 | 3865 |
| Anchor bolts distance | F-B | a1 | mm | 830 | 950 | 1100 | 1210 | 1510 | 1670 | 2020 | 2150 | 2140 |
| L-R | b1 | mm | 690 | 745 | 840 | 920 | 1040 | 1140 | 1360 | 1460 | 1500 |
| Power of electric motor | Model | Y100L2
-4 | Yl32S
-4 | Yl32S
-4 | Yl32M
-4 | Yl60M-4 | Yl60L
-4 | Yl80M
-4 | Y200L2
-6 | Y225M
-6 |
| Power | KW | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 |
| Weight (Approximate) |
| KG | 2380 | 3500 | 5150 | 7950 | 10350 | 15400 | 20500 | 23600 | 27600 |
Jadestone Machine Tool Co., Ltd is a high Technology Enterprise specializes in the Field of Metal Sheet Fabricating Industry with Highest Quality Standards 9001: 2001 and Powerful Facility and Productivity.
With Years of Exporting Experiences, we Devote and leading in Manufacturing, Research, Marketing and Puissant Ocean Freight capacity global in Metal Cutting, Bending Machine, CNC Punching Machine, Cast Iron and Moulds Design. Our sales network stretches all over the world, with our business conception of Honesty, Creation. Quality. And after Service. To optimize maximum benefits for various Customers with those High performance products, which awards highly praises and repeat orders continuously from different regions.
Apply Territory:
Our products are widely used in Decor, Metallurgy, Boat & Auto Industries. Elevator, and outside construction building.
Products Ranges:
CNC Press Brake
CNC Shearing Machine
Hydraulic Guillotine Shear
(Option with: Estun, Delem, Cybelec, Italy controller )
Punch Press( CNC punch and Power Press. Hydrauic Press)
Tooling Set for Machine model (Amada. Durma. LVD. Haco. Trumpf...)
Drilling Machine and Milling Machine
Production Line, Uncoiled, Cutting, Bending and Punching. Or can be separated ordered.
Shipments:
Shipments to European, North America. South America. Middle East, South-East Asian and Ocean Countries globally.
After Services:
Provide with technical Services. Training service. Maintenance services. Spare parts in Warranty.
Within 24 hours online Service
