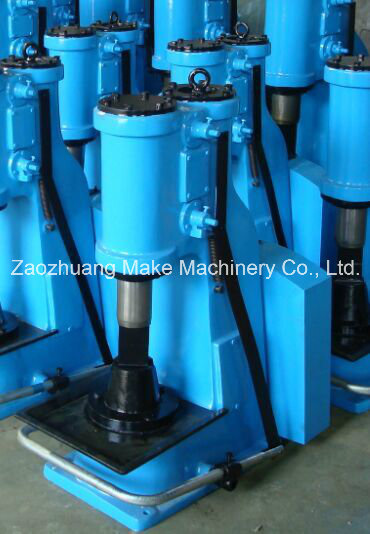

16kg Power Die Air Forging Hammer with CE Approved
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
C41-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
1.5kw |
| Max Hit Force: |
0.18kj |
| Height Of Working Area: |
180mm |
| Speeds Of Motor: |
1440rpm |
| Forging Forming Method: |
Mold Forging |
Product Description
· Dealing directly with the manufacture- no middle man!
· The most competitive pricing in the market.
· High quality control standards, such as ISO, CE
· Guaranteed delivery time.
· Prompt attention to the customer inquiries.
· Diverse services for your needs, including sourcing other machinery, inspection goods for you by our engineers, product process tracking and good.
| SPECIFICATION | UNIT | C41-16(Integrated) |
| Max. hit force | kj | 0.18 |
| Height of working area | mm | 180 |
| Hit frequency | times/min | 258 |
| Dimension of top & bottom die surface(L*W) | mm | 70*40 |
| Max. square steel can be forged | mm | 20*20 |
| Max. round steel can be forged(Diameter) | mm | 22 |
| Motor power | kw | 1.5 |
| Speeds of Motor | r.p.m | 1440 |
| Total weight(N.W/G.W) | kg | 240/265 |
| Overall dimensions(L*W*H) | mm | 660*420*970 |
The main products include machine tools like Plano Miller/Plano Milling Machine/Gantry Milling Machine/Planer Milling machine, Conventional Milling Machine & Milling/Drilling Machine, Vertical Lathe, Horizontal Lathe, Radial Drilling Machine, Vertical Drilling Machine, Gear Shaper & Hydraulic Shaper, Press, Shearing Machine, Press Brake, Saw Machine, Riveting Machine, Air Hammer, etc; Accessories like Vice, Angle Clamp, Slotting Head, DRO, Dividing Head, Rotary Table, Grinding wheel balancer, Universal Boring Head, Clamp kits, etc. And the other product range is garage equipments like Cylinder(Blocks) Boring Machine/Fine Boring Machine, Cylinder Honing Machine, Brake Drum Boring Machine, Brake Lathe/Brake Drum(Disc) Cutting Machine, etc.
All of them have adopted modernized ISO Quality Management System, sound operational procedures as well as effective service system. All the commodities are carefully produced and we bear in mind that products with consistent good quality are crucial to the ongoing success of your operations.
