| Prod Model: |
SJ180 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Cold chamber die casting machine
2. Weight of feeding metal per time: 2.2kg
3. Copper, aluminium, magnesium

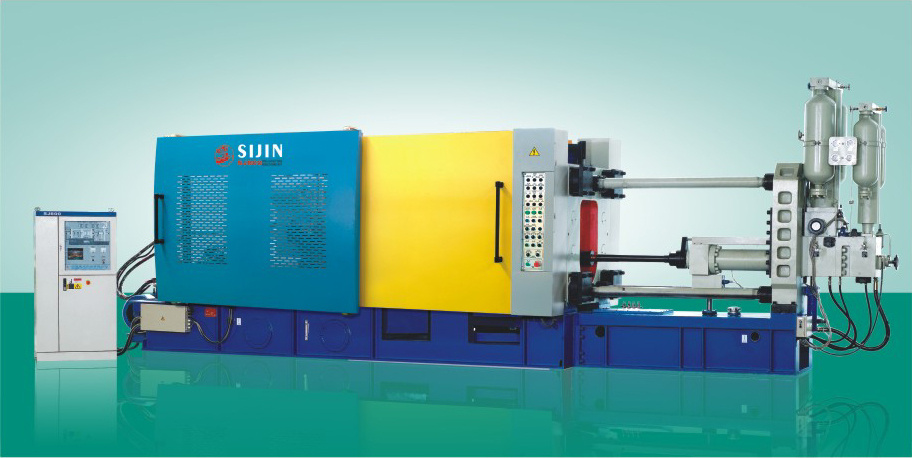

Cold chamber die casting machine
The machine is suitable for some industrial parts, such as aviations, cars, motorcycles, telecommunication meters and household electrical appliances.
It is an ideal equipment to produce mass aluminum, magnesium, copper and other non-ferrous metals, but also suitable for producing cast parts which is difficult-casting, high-quality and complex structure.
Besides, injection system adopts third classis injection speed and first classis pressurized structures.
High performance: The maximum dry shot speed over 7m/s, and pressurization and creation duration less than 30ms
High reliability: The machines adopt PLC programmable controller and control the transmission that the hydraulic pressure drove, and the machines are designed and produced according to world-leading structure and manufacturing workmanship for die casting machines, reliability and durability.
High-speed production: Die locking force and injection force adopt the proportion of conditioning systems, and keep the machines always in the best work state. So these machines realize high-speed production, and production speed by over 15%.
|
Specifications /Mode |
Unit |
SJ180 |
|
Die locking force |
KN |
1800 |
|
Inner space between tie bars(H×V) |
mm |
480*480 |
|
Tie bar diameter |
mm |
85 |
|
Die thickness(min-max) |
mm |
200-550 |
|
Die stroke |
mm |
380 |
|
Ejection stroke |
mm |
85 |
|
Ejection force |
KN |
108 |
|
Injection force |
KN |
265 |
|
Injection position |
mm |
0,-140 |
|
Diameter of injection chamber |
mm |
50,60,(70) |
|
Weight of feeding metal per time(AL) |
Kg |
2.2 |
|
Casting projected area |
cm2 |
160-450 |
|
The distance of pushing injection cutting block |
mm |
135 |
|
Injection stroke |
mm |
355 |
|
Circle period |
S |
7 |
|
Pipe line pressure |
Mpa |
14 |
|
Motor power |
KW |
15 |
|
Oil tank capacity |
L |
500 |
|
Machine weight |
Kg |
7500 |
|
Overall dimensions(L×W×H) |
mm |
5640 *1320 *2600 |
NINGBO SIJIN MACHINERY Co., Ltd is a high&new-tech enterprise in Ningbo, China, which located in Ningbo National High&New-Tech Zone. Our company owns more than 20, 000 square meters of standardized factory houses, with several large processing centersand a large group of domestic&international advanced mechanical processing equipments. We possess the advanced management and the abundant technical strength. We are enquired with the powerful research, development and manufacture capabilities to high precisiondie-casting devices and the multi-station speedy screw formers. Our products have passed IS09001: 2000 Quality Supervision System Certification and CE Safety Certification.? The Products R&Dpersists in the strategy of high starting point and high quality.? All the ex-factory die-casting machines and speedy screw formers go through the rigorous inspections and testing. In this way, the overall quality always in a leading position in this industry. Since the 1990s', the company started to cooperate with Haitian Group which is the largest plastic injection machine manufacture base in China. In order to match a complete supply with the plastic injection machine parts, we have absorbed a great number of the advanced managing experience. At present, we own two series more than twenty varieties of? "Sijin"? All computer control cold, hot chamber die- casting machines, the complete specifications of multi-station speedy screw former serial goods.? The products are wide-spreading all over the country. They also export to the Middle East, Europe, America, Southeast Asia and so on.
The company always adheres to the managing concept of? "pragmatic, keep improving, be newer, forge ahead". We attract a large number of the talents to join us by the broad developing space.? We have successively cooperated with Zhejiang University, Shanghai University Production, Study&Research Center to set up Engineering Technical Center and offer the strong technical support for R&D of a full series of high precision die-casting machines and multi-station green environmental protection speedy screw formers.
"Infinitely enhancing the added value of vast users"? Is the objective eternally pursued by us.? The company is always engaged in supplying the most effective and quality mechanical equipments with the most superior cost performance to the users. We help the users constantly increase the productivity, reduce the cost and finally reinforce the market competitive power of the users.? Considerate and rapidly-reacted before; MID and after sale service are the vigorous support for us to continuously satisfy and exceed the clients' requirements. All for the users out of our chastened potentials and accumulated experience.
