| Prod Model: |
JMDY200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hydraulic Press: |
Power Operated Hydraulic Press |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Warranty Period: |
One Year After Delivery |
| Voltage: |
as Your Requirement |
| Color: |
as Your Requirement |
| Forging Forming Method: |
Mold Forging |
Product Description

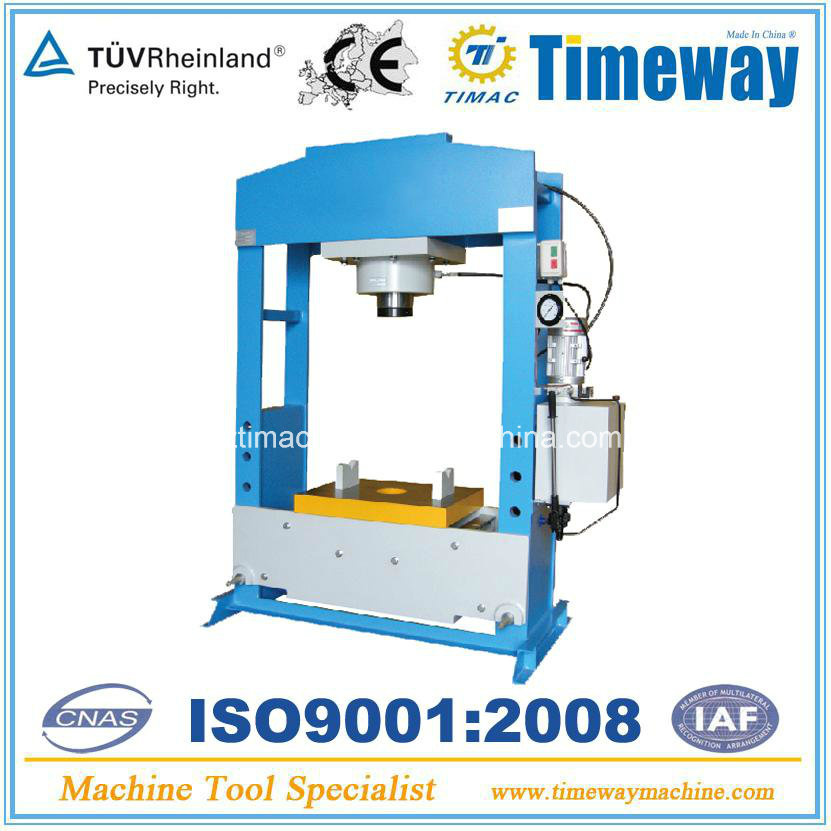

Power Operated Hydraulic Press
Features:
1. Optimally designed steel-frame structure, is sturdy and durable.
2. Single piston double-acting hydraulic oil cylinder, is durable.
3. Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible.
4. Beam of work platform moves lifting device from up to down, is convenient and easy.
5. Electric pump, manual compensation, easy to operate.
| Specification | Unit | JMDY50 | JMDY60 | JMDY100 | JMDY160 | JMDY200 | JMDY300 |
| Max. pressure | KN | 490 | 588 | 980 | 1568 | 1960 | 2940 |
| Hydraulic pressure (Electric / Manual) | Mpa | 20/25.5 | 20/26 | 20/25.5 | 20/25.5 | 20/24.5 | 20/23.5 |
| Stroke of cylinder rod | mm | 250 | 250 | 300 | 300 | 300 | 300 |
| Working speed(Electric) | mm/s | 3/h4 | 2.6/h3.6 | 2.5/h3.5 | 2.4/h3.6 | 1.8/h2.7 | 1.2/h1.7 |
| Adjustment distance of worktable | mmxn | 150x4 | 150x5 | 150x5 | 150x5 | 150x5 | 200x3 |
| Motor power | kw | 2.2 | 2.2 | 3 | 4 | 4 | 4 |
| Machine length (A) | mm | 1026 | 1076 | 1380 | 1376 | 1586 | 1626 |
| Machine width (B) | mm | 700 | 700 | 760 | 870 | 900 | 1020 |
| Machine height (C) | mm | 1805 | 1863 | 2030 | 2200 | 2290 | 2320 |
| Max. distance between two frames (D) | mm | 700 | 750 | 1000 | 1000 | 1200 | 1200 |
| Min. distance between piston to worktable (E) | mm | 304 | 368 | 185 | 283 | 267 | 334 |
| Weight | kg | 520 | 730 | 990 | 1653 | 2450 | 3190 |
ZHENGZHOU TIMEWAY MACHINE TOOL Co., Ltd. is a professional machine tool supplier.
Our factory is the joint-stock enterprise, has 50 years of machine tool development, and manufacturing history, is the largest machine tool manufacturer in central China, is the "National Torch Plan Key High-tech Enterprise", "China Industry Leading Enterprise", "China Machinery Industry 500 ", China's machine tool industry" well-brand Top Ten Enterprises ".
The factory occupies more than 500 acres, built a foundry, machining, heat treatment, assembly, painting, logistics and other domestic advanced production lines, with vertical machining centers, horizontal machining center, five-sided machining centers, large boring and milling machine, large German rail grinder, Zeiss coordinate measuring instrument, gear detector and laser interferometer and other advanced equipment, instruments and a total of more than 600 sets.
Our product mainly cover conventional lathe, CNC lathe, CNC oil country lathe, vertical lathe, milling machine, CNC machining center, drilling machines, grinding machines, shaping/slotting machines, sawing machines and related accessories & tools, etc.
With many years' experience in machine production and export, as well as skilled staff members, we believe we can supply more and more quality machines to clients from different countries and regions, and can make more and more friends globally.
Our exclusive mission: Supply clients with quality machines, competitive prices and reliable services!
Our top motto: Satisfy clients, satisfy ourselves!
