Z14 series jolting squeeze molding machine

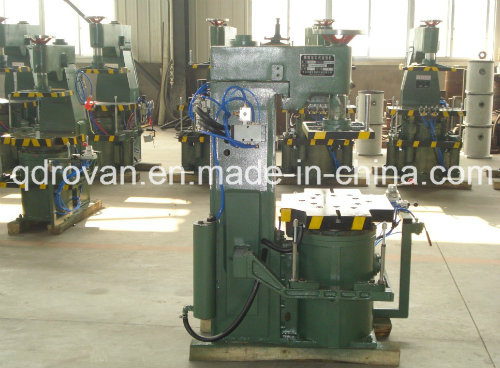

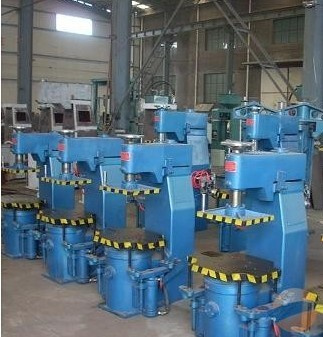

Z145WA/B Microseism Jolt Squeeze Molding Machine For Foundry
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB90 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
7.Technical parameter:
Name | Z143WA | Z145WA | Z145WB |
Foundry flask size (mm) | 500*400*200 | 500*450*200 | 550*450*200 |
Worktable (mm) | 560*420 | 600*550 | 700*550 |
Jolting load(kgf) | 200 | 300 | 300 |
Compressive stress (kgf) | 4200 | 6800 | 6800 |
Compress process(mm) | 200 | 160 | 160 |
Moulding process(mm) | 160 | 200 | 200 |
Productivity(case/h) | 40-60 | 40-60 | 40-60 |
Jolting cylinder diameter(Φmm) |
| 150 | 150 |
Consumption of free air(m³/case) | 0.25 | 0.4 | 0.4 |
Outline dimention L*W*H (mm) |
| 1300*800*1700 | 1200*800*1680 |

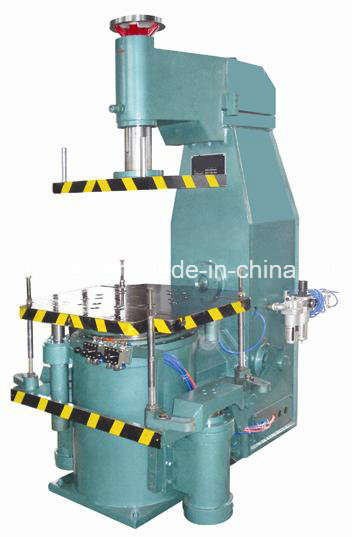

Z146W/Z148W Microseism Jolt Squeeze Molding Machine For Foundry
1.The machine using the fuselage box structure basket to improve the body of the steel.
2.It adopt microseism squeeze molding technics used to significantly increase the pressure and the strength to make up hardness HB85 sand box more than one level to increase surface roughness, make the quality of the other products stable.
3.Shock part of it with a buffer spring, effectively reduce the impact of machine-to-base.
4.The machine adopt cylinder, crank, connecting rod, synchronizing shaft achieve molding synchronously.
5.Control part, all pneumatic components used to achieve the overall functionality, simple operation, easy maintenance.
6.It is easy to operate, visual sand, the operational procedures can be humane and effective to increase productivity.
7.Technical parameter:
Item | Z146W | Z148WB |
Foundry flask size (mm) | 600*500*250 | 800*700*400 |
Worktable dimension(mm) | 700*550 | 900*700 |
Jolting load(kgf) | 400 | 700 |
Compressive stress(kgf) | 8300 | 17000 |
Compress process(mm) | 150 | 200 |
Moulding process(mm) | 220 | 250 |
Productivity(case/h) | 40-60 | 40-60 |
Jolting cylinder diameter(Φmm,) | 150 | 620 |
Outline dimention L*W*H(mm) | 1100*850*1800 | 1760*1180*2280 |
