| Prod Model: |
UM-40AB-MF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
40kw |
| Frequency: |
20kHz |

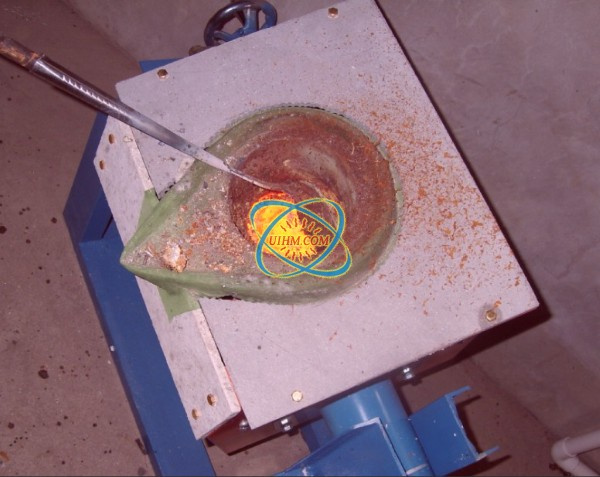

| Furnace Type: |
Tilting |
| Forging Forming Method: |
Free Forging |
Product Description
UIHM IGBT MF, RF, HF and UHF induction heating equipment is widely used in the following industries:
(A) heat treatment industry (hardening, annealing, tempering and stress relieving):
1. Hardware tools high-frequency hardening heat treatment, such as; Vise, hammer, locking pliers, wrenches, screwdrivers
2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: Crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft
3. Hydraulic components, such as: A rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.
4. Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment
5. Variety of woodworking tools, such as: Ax, planer quenching
Wheels of a variety of automotive, motorcycle, marine and engineering equipment, machine axis IF quenching, large parts of the annealing, tempering and stress relieving.
(B) the welding industry (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: Welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tool
Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed
(C) forging industry
1. Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging
2. Hardware tools such as pliers, wrenches before forging heating
3. Solder with solder tail caudal peduncle cone drill head forging
4. A extrusion molding on the stainless steel container.
(D) the precious metal smelting industry
The sample melting of steel, iron, copper, aluminum and other tests, as well as gold, silver and other precious metals smelting
UM Series press feed screw barrel induction heating equipment, the main application industries:
1, the plastics and rubber industry, such as: Plastic film blowing machine, drawing machine, injection molding machines, blow molding machines, blow molding machines, plastic machines, molding machines, bag making machine, pipe production line, plate production line, granulating machine, plastic pressure machine, foaming machine rubber extruder, vulcanizing machine, cable extrusion machine, etc.
2, the pharmaceutical and chemical industry, such as: Medicine dedicated infusion bag, plastic equipment production lines, chemical industry liquid heating duct
3, the energy, the food industry, such as: Crude oil pipeline heating, food machinery, such as Roasting Machine need for electric heating equipment
4, the building materials industry, such as: Gas pipeline production line, plastic pipe production line, PE plastic rigid flat net, geotextile mesh unit, automatic hollow molding machine, PE honeycomb board production line, single-double wall corrugated pipe extrusion production line, composite cushion film crew rigid PVC pipe, foam core pipe production line, PP extrusion transparent sheet production line, extruded polystyrene foam pipe, PE stretch film plant
5, printing equipment, dry heat
6, other similar industry heating
|
Type |
Power Supply |
Input Current |
Output Power |
Max. Frequency |
Input Power |
Cooling Water |
Normal Size(cm) |
Net Weight(kg) |
|
UM-25AB-MF |
28KVA |
37A |
25KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 8 L/Min, <50 ºC |
Main: 64 X 28 X 55
Head: 51 X 26 X 41 |
38+32 |
|
UM-40AB-MF |
42KVA |
60A |
40KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 8 L/Min, <50 ºC |
Main: 64 X 28 X 55
Head: 51 X 26 X 41 |
40+32 |
|
UM-60AB-MF |
63KVA |
91A |
60KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 9 L/Min, <50 ºC |
Main: 78 X 37 X 62
Head: 56 X 26 X 47 |
54+42 |
|
UM-80AB-MF |
89KVA |
120A |
80KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 10 L/Min, <50 ºC |
Main: 106 X 60 X 72
Head: 85 X 42 X 65 |
85+65 |
|
UM-100AB-MF |
100KVA |
150A |
100KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 10 L/Min, <50 ºC |
Main: 106 X 79 X 70
Head: 86 X 42 X 65 |
100+70 |
|
UM-120AB-MF |
128KVA |
180A |
120KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 12 L/Min, <50 ºC |
Main: 106 X 70 X 87
Head: 85 X 42 X 75 |
115+75 |
|
UM-160AB-MF |
170KVA |
240A |
160KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 15 L/Min, <50 ºC |
Main: 106 X 70 X 87
Head: 85 X 42 X 75 |
135+85 |
|
UM-200AB-MF |
220KVA |
300A |
200KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 20 L/Min, <50 ºC |
Main: 130 X 115 X 80
Head: 95 X 50 X 85 |
280+120 |
|
UM-250AB-MF |
280KVA |
375A |
250KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 25 L/Min, <50 ºC |
Main: 160 X 116 X 80
Head: 156 X 50 X 85 |
340+150 |
|
UM-300AB-MF |
320KVA |
450A |
300KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 30 L/Min, <50 ºC |
Main: 200 X 130 X 80
Head: 160 X 60 X 90 |
400+200 |
|
UM-500AB-MF |
550KVA |
750A |
500KW |
20KHz |
380VAC, 50Hz, Three Phase |
>0.2 MPa, 50 L/Min, <50 ºC |
Main: 260 X 130 X 90
Head: 200 X 100 X 90 |
520+260 |
UIHM (United Induction Heating Machine Limited), founded in 2000, is a private high-tech company. The company is located in the Guangdong Province in the Zhujiang delta which is famous of China's factory.
We have experience of producing induction heating machines for more 10 years.
We produce Ultra High Frequency (>=400kHz), High Frequency (100kHz~400kHz), Radio Frequency (30kHz~100kHz), Medium Frequency (2kHz~20kHz) Induction heating machines and different Supporting Facility of Induction Heating Machine.
We have established a developed R&D and production system. It is supported by advanced engineers and professional workers, who are especially engaged in researching and developing the machinery of medium or high frequency induction heating machine. Since it owns a strong technique development power, the company insist on producing new product and new craftwork to assure its lead on technique in this field.
Under the effort of several years, we has produced series of high quality, various categories and advanced capability production. And we can also exclusively produce these productions on your requirement to meet you need.
We have a wholesome distribution network. Our production has reached America, Europe and southwestern Asia area. It also build up a lot of offices to provide prompt and quick service to its consumers, to provide after-sale service.
