| Prod Model: |
SS752-500/SS754-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operational Method: |
Continuous, Continuous~ |
| Structure: |
Three-Legs Suspended Structure |
| Operation Pressure: |
No Pressure |
| Movement Way: |
Extracting or Squeezing |
| Heating Mode: |
No Need Heating |
| From Min. Capacity To Max. Capacity: |
From 25kg to 500kg |
| Capacity In Dia In Mm: |
From 500mm to 1500mm |
| Capacity In Dia In Inch: |
From 20'' to 60 |
| Material: |
Stainless Steel 202 or 304 or 316 Grade |
| Certificates: |
ISO CE |
| Dewatering Capacity: |
From 25kg to 500kg |
| Dewatering Speed: |
From 1000rpm to 750rpm |
| Motor Power: |
From 1.5kw to 10kw |
| Specification: |
From Dia 500 to 1500mm |
| Dimension: |
2000*2000*1020mm |
| Net Weight: |
From 220kg to 2800kg |
Product Description

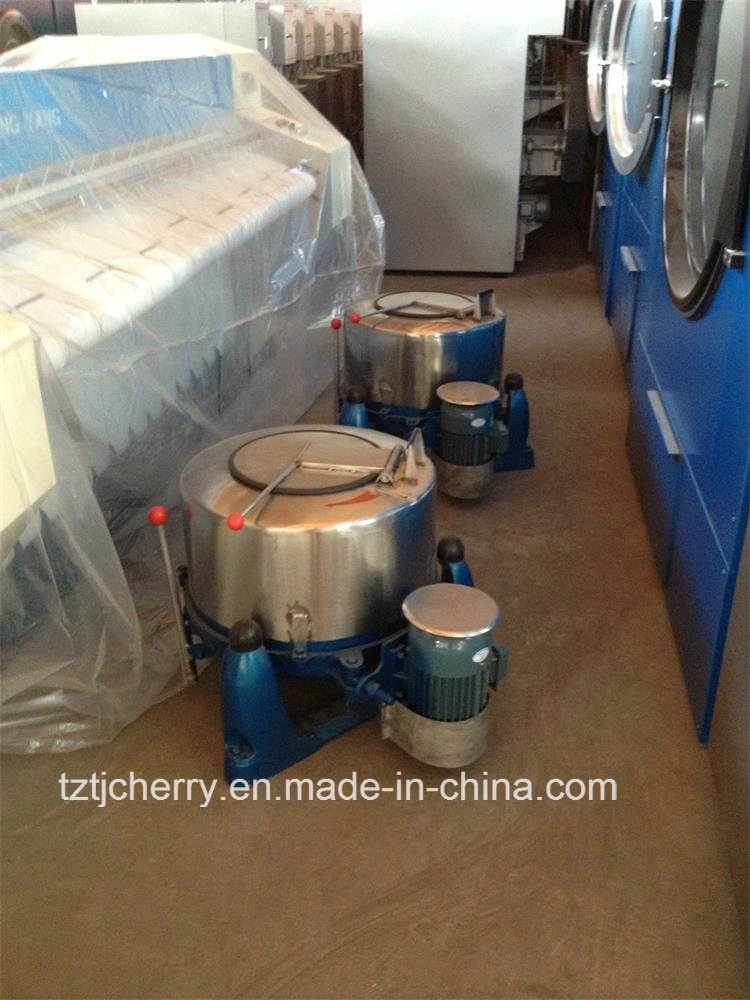

SS751-754 series extracting machine:
1. Extracting machine, Industrial extracting machine, Commercial extracting Machine, Hydro extractor, Dewatering machine, Industrial dewatering Machine, Automatic extracting machine, Hydro extracting machine
2. Three-legs suspended structure consists of the following parts: Triangle basement, casting steel legs, drum, outer body, motor and brake device in the machine which can be stopped in short time.
3. Independent three legs suspended instruction can avoid shock caused by unbalanced loading.
4. Equipped with special brake arms which is durable and reliable make the machine safer.
5. The motor will start with slow speed then to the required speed gradually. Then drum will be driven by triangle rubber belt, running smoothly and synchronously.
6. Stainless steel inner drum and body.
7. High efficiency, easy operation, low noise and safety, and used widely in the field, such as hotel, restaurant, laundry house, water washing plant, and laundry equipment for garment, fabric, apparel.
8. The drum size is from 500mm to 1500mm and its capacity is from 25kg to 500kg.
9. CE and ISO9001 certificates.
10. Packing: With wooden box
| model | capacity
(kg) | motor
power
(kw) | Rotate speed
r/min | drum diameter
(mm) | Drum height
(mm) | overall dimensions
(mm) | weight
( kg) |
| SS752-500 | 25 | 1.5 | 1000 | 500 | 260 | 1000*1000*650 | 220 |
| SS752-600 | 45 | 2.2 | 1000 | 600 | 300 | 1250*1250*700 | 420 |
| SS753-800 | 80 | 4 | 910 | 800 | 340 | 1500*1500*800 | 720 |
| SS751-1000 | 130 | 5.5 | 900 | 1000 | 380 | 1800*1800*900 | 1050 |
| SS754-1200 | 220 | 7.5 | 750 | 1200 | 480 | 2000*2000*1020 | 1500 |
| SWE301-150 | 500 | 10 | 750 | 1500 | 600 | 2550*1950*1400 | 2800 |
Taizhou Tongjiang Washing Machinery Factory is specializing in producing textile washing machines with various specifications available.
Our main products include industrial washing machine, extracting machine, fully-automatic washer and extractor, drying machine, ironing machine, carpet washing machine and laundry equipment, etc. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants, hospitals and laundry houses.
Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.
Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.
You are welcome to visit our factory and order our products.
