| Prod Model: |
BLS-LXB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Centrifugal Pump |
| Structure: |
Single-Stage Pump |
| Fuel: |
Electric |
| Application: |
Milk Transfer Pump |
| Flow: |
1-80m3/H |
| Voltage: |
110-600V |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Usage: |
Milk Food Beverage Pharmacy Dairy |
Product Description

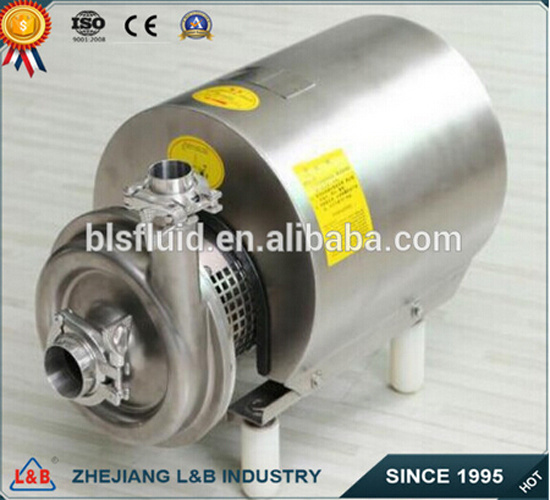

milk transfer pump
Material:SS304,SS316L
ISO9001:2008
Reliable quality,beatiful surface
BLS Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard:DIN,SMS,JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
Model | (t/h)
Flow | (M)
Head | (KW)
Power | (mm)
Inlet/Outlet Diameter |
| BLS-3-15-0.75 | 3 | 15 | 0.75 | 38/32 |
| BLS-3-20-1.1 | 3 | 20 | 1.1 | 38/32 |
| BLS-5-24-1.5 | 5 | 24 | 1.5 | 51/38 |
| BLS-5-32-2.2 | 5 | 32 | 2.2 | 51/38 |
| BLS-10-24-2.2 | 10 | 24 | 2.2 | 51/38 |
| BLS-10-32-3 | 10 | 32 | 3 | 51/38 |
| BLS-15-24-3 | 15 | 24 | 3 | 51/51 |
| BLS-20-24-4 | 20 | 24 | 4 | 51/51 |
| BLS-20-35-5.5 | 20 | 35 | 5.5 | 63.5/51 |
| BLS-30-24-5.5 | 30 | 24 | 5.5 | 63.5/51 |
| BLS-30-35-7.5 | 30 | 35 | 7.5 | 63.5/51 |
| BLS-40-24-7.5 | 40 | 24 | 7.5 | 76/63.5 |
| BLS-50-24-7.5 | 50 | 24 | 7.5 | 76/63.5 |
| BLS-50-35-11 | 50 | 35 | 11 | 76/63.5 |
| BLS-80-30-15 | 80 | 30 | 15 | 89/76 |
| BLS-80-40-18.5 | 80 | 40 | 18.5 | 102/89 |
Zhejiang L&B Fluid Equipment Co., Ltd. (the former name SIFANG Machinery Factory) is found in 1995. the company become a modernized Enterprise which have design, exploitation, manufacturing, project, equipment and technology, Wenzhou L&B Fluid Equipment Co., Ltd., lies in Wenzhou Binhai Industrial zone of Chinese Valve, and have a large scale for machine equipment and exporting & importing right now. We are a leading enterprise in high-precision hygiene grad valves, pipe fitting and pump and tank.
Wenzhou L&B Fluid Equipment Co., Ltd., have special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields. We have advanced CNC lathes imported from Japan. We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard). Our products can get to the international standard and meet the requiement of GMP, so they are widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc., exported to America, Europe, the Middle East.
Wenzhou L&B Fluid Equipment Co., Ltd., have an experience cooperated with the international leading enterprise and know the quality requirement, So we have advanced system for quality controlling and have advanced testing system and equipment to guarantee better quality. "Quality is Life, Technology is Development" is our Business philosophy Good quality and nice serve win the praise from the clients.
We adopt continuously aduvanced technology and absorb experts and strengthen the inner management to enlarge enterprise team and to win the market, to provide the clients nice serve. Wenzhou L&B Fluid Equipment Co., Ltd are sincerely looking forward to establish nice and long-term cooperation with the clients from inner and oversea to establish good future.
