| Prod Model: |
BHR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
All |
| Material: |
Natural Rubber |
| Fuel: |
Diesel/Electric |
| Applications: |
Mining, Power Plant, Metallurgy |
| Cooperation: |
OEM |
| Way Of Payment: |
Negotiation |
| Lead Time: |
20~30 Days |
| Theory: |
Centrifugal Pump |
| Structure: |
Single-Stage Pump |
| Factory: |
Yes |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Impeller: |
Closed or Open |
Product Description

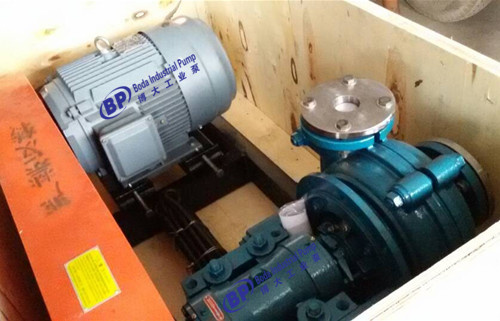

BHR Rubber Slurry Pump
Name: BHR Rubber Slurry Pump
Pump Type: Centrifugal
Power: Motor/Diesel
Discharge Size: 1-18 inch
Capatiy: 0-1000(l/s)
Head: 0-70m
Description:
BH(R) series centrifugal slurry pumps and spare parts can fully interchage with world famous brand. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and impellers, which are all interchangeable within a common costing assembly.
Typical Application:
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand and Gravel Handling
Structure Drawing:
| Pump Model | Allowable Max. Power(kw) | Clear Water Performance | |
| capacity Q | Head H(m) | speed n(r/min) | Max.eff. η% | NPSH (m) | Impeller Dia(mm) |
| m3/h | l/s |
| 1.5/1B-BHR | 15 | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | | |
| 2/1.5B-BHR | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5.5 | 178 |
| 3/2C-BHR | 30 | 36-75.4 | 10-21 | 13-39 | 1300-2100 | | 2-4 | 213 |
| 4/3C-BHR | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 245 |
| 4/3D-BHR | 60 |
| 6/4D-BHR | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 365 |
| 6/4E-BHR | 120 |
| 8/6E-BHR | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 510 |
| 8/6R-BHR | 300 |
| 10/8ST-BHR | 560 | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4-12 | |
| 12/10ST-BHR | 560 | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | |
| 14/12ST-BHR | 560 | 1152-2520 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | |
| 16/14TU-BHR | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 |
Shijiazhuang Boda Industrial Pump Co., Ltd is a corporation working for international pump market in P. R. C. It mainly operates pump & pump driven equipments, pump parts & resistance wearing castings, others hydraulic machinery, accessories etc. The products contain slurry pumps, API 610 petrol-oil & chemical pumps, waters pumps which have tens of series, more than one hundred varieties, thousands of models. They are widely used in mining, metallurgy, coal mining, electric power, petroleum, chemical, water supply and drainage industry and so on.
Boda is specialized in the manufacture and sales of slurry pump and pump parts. The slurry pumps are designed for the harshest abrasive and corrosive pumping environments. They can be made of high chrome, a wide variety of elastomers or the latest in ceramic materials for longer service life and higher efficiencies. Also they are parts interchangeable with one of the most recognized brands worldwide in the slurry pump business.
It is our eternal pursue to do our best to meet the customer's requirements. We are always maintaining the operation principle "First class quality, Advanced technique And Best service". We receive the reputation of several firms in the world for high quality, fair price, in time delivery. Our company has a company tenet ' Moral Team, Good Quality Product, Brand Service' and a principle 'Quality is No. 1, Customers are Paramountcy' in order to provide clients an excellent product and satisfied service.
