Prod Model: |
W11-30X3000MM |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Plate Rolling |
Controlling Mode: |
CNC |
Precision: |
Precision |
Type: |
Large Machine Tool |
Automatic Grade: |
Mechanical |
Product Description

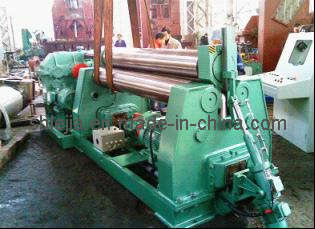

MAIN BODY STRUCTURE
The foundation for equipment main body structure is composed of the upper roll installment, the lower roll installment, the supporting roller installment, the main drive, drop end installment.
Upper roll installment and holding-down device
The upper roll installment by the upper roll, the upper roll bearing seat and so on is composed.
The upper roll material quality is the 45# steel forging, intermediate frequency quenching processes HRC38-42, the upper roll both sides bearing seat placement sliding bearing. The upper roll sliding bearing uses the SF-2 compound materials.
The holding-down device provides the power by the vice-electrical machinery, through the speed reducer, the worm gear worm bearing adjuster, the lead screw nut machinery transmission torque, drives the upper roll to reciprocate. The worm gear, the nut material quality is zinc base alloy ZA27; The worm bearing adjuster material quality is the 45# forging, quenching and retempering treatment HB245-285.
Lower roll installment
The lower roll installment by the lower roll, the lower roll bearing seat, the lower roll gear, the lower roll sliding bearing and so on is composed. Lower roll primarily action roller, through master drive output gear, lower roll gear, transmission torque to lower roll.
The lower roll material quality is the 45# steel forging, intermediate frequency quenching processes HRC38-42; The lower roll gear material quality is the 45# steel, quenching and retempering treatment HB245-285, the tooth face high-frequency quenching processes HRC40-45. The lower roll sliding bearing uses the SF-2 compound materials.
Main drive
The main drive by the electrical machinery, the gear speed reducer, the brake and so on is composed.
Drop end installment
Drop end installment is to take out the finished cylinder or shell.
Left & right stander and chassis
Welding parts and the inner stress is eliminated via vibration.
ELECTRIC CONTROL SYSTEM
Equipment electrically controlled system by electrically controlled cabinet, operation control console. Power source 415V/50Hz. The main switch has the short circuit protection and the main electrical machinery's over-load protection function. The electrical machinery is reversing by the exchange contact device control; The strong electricity control primary device including the circuit breaker, the fuse, the contact device, the thermal relay, the button, the switch, the indicating lamp and so on uses the DELIXI (CHINT) series completely.
In order to protect the operator and equipment's safety transports the moving parts terminal in the equipment to settle respectively has the limit switch as well as is equipped with in the fixed side rack stops the button anxiously.
On the control cubicle is equipped with completes the product volume system process completely control push-button, the indicating lamp and so on, by to complete machine work management and each active status control.
FEATURES
Upper roll and lower roll's parallelism adjustment
The upper roll and lower roll's parallelism through the lackey coupling adjustment, the synchronized precision is high.
Equipment's structure succinct practical, the operation maintenance is convenient.
S/N |
Description |
W11-30×3000mm 3R |
1 |
Max rolling width |
3000mm |
2 |
Working roll length |
3050mm |
3 |
Max. rolling Thickness(mm) |
30mm |
4 |
Mini rolling diameter in full load (mm) |
Φ1200mm |
5 |
Plate yield limit (Mpa) |
≤245Mpa |
6 |
Upper roll diameter(mm) |
480mm |
7 |
Lower roll diameter(mm) |
400mm |
8 |
Center distance of two lower rolls(mm) |
600mm |
9 |
Rolling speed(m/min) |
Around 5m/min |
10 |
Main motor power(kw) |
55kW |
11 |
Vice motor power(kw) |
2kW |
12 |
Machine dimension(mm) |
7400×2300×2600 |
Shanghai Lejia CNC Machine Co., Ltd. is a national new technological enterprise and national important "Torch Plan" implementation organization with integration of research and development, machinery manufacturing, tools designing and building, sales and import and export authority rigths. We are professional manufacturing company holding many domestic and international certificates.
Manufacture ranges: CNC Press brake Machine, shearing machine, CNC-Punch, and Slotting Machine, Rolling bending machine, Straightening, Unrolling, Shearing Production Line and normal Forging Machinery. And pressbrake tools. Shearing blade. Punch tools, etc. The products are awarded highly by the clients with the fame of those precise, reliable and high qualified products produced by the state -in- art manufacturing techniques, which are of reasonable price and excellent after-sale-service.
Our Company is dedicated to contribution for nation by sustainable promotion and improvement in the field of CNC machinery, CNC Machinery Tools and-Cutter-localization.
