| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Ton |
| Pay Type: | T/T,Western Union |
| Prod Model: | 3003 6061 7050 8011 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | 3003 6061 7050 8011 |
| Thickness: | 0.2mm~3.0mm |
| Width: | 10mm~300mm or as Required |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Type: | Aluminum Strips |
| Application: | Glass Wall |
| Surface Treatment: | Mill Finish |
| Alloy: | Alloy |
| Temper: | O - H112 |
| Certification: | ASTMB |
| Shape: | Coil/Strip |
| Grade: | 3003 6061 7050 8011 |
| Technique: | Cold Roll |
Quick Detail:
Product name | alloy | temper | thickness(mm) | width(mm) | Inner Diameter | Application | Processing way |
aluminum strip | 1070 1060 1050 1145 1235 1100 1200 3003 8011 | H18 H26 H14 H24 H22 O | 0.2mm~3.0mm | 10mm~300mm | 75mm,150mm, 300 mm, 505mm | All kinds of industry aplicaiton | DC or CC |
Description:
Specifications of Aluminium Strip / Foil :
1. Grade
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
8000 Series: 8006 8011 8079 etc.
2. Thickness: 0.20mm-320mm
3. Width: 8mm-2400mm
4. Length: 1220 or per customer's request
5. Temper: all tempers, H1X, H2X, H3X, O, HXXX
6. Continuous casting and hot rolled both available
Roofing Coil |
| |||||
Alloy | Temper | Thickness (mm) | Width(mm) | Tensile Strength(Mpa) | Elongation |
|
8011 | H18/H26 | 0.200~0.400 | 1000~1300 | 140 | ≥1.5% |
|
0.401~0.550 | 155 | ≥1.0% |
| |||
0.551~0.800 | 155 | ≥3% |
| |||
3003 | H26 | 0.200~0.400 | 170.0~210.0 | ≥2.0% |
| |
0.400~0.800 | ≥3.0% |
| ||||
|
|
|
|
|
|
|
Aluminum Foil Stock |
| |||||
Alloy | Temper | Thickness (mm) | Width(mm) | Tensile Strength (Mpa) | Elongation |
|
1235 | H14 | 0.20~0.50 | 900~1250 | 115.0~135.0 | ≥2.0% |
|
8011 | H14 | 0.20~0.50 | 155.0~165.0 | ≥3.0% |
| |
|
|
|
|
|
|
|
Decorative Coil/Sheet | ||||||
Alloy | Temper | Thickness(mm) | Width(mm) | Tensile Strength (Mpa) | Elongation | T Bend |
1100/8011 /3003 | H16/H18 /H26 | 0.100.50 | 300--1250 | 155~230 | ≥2.0% | within 2T |

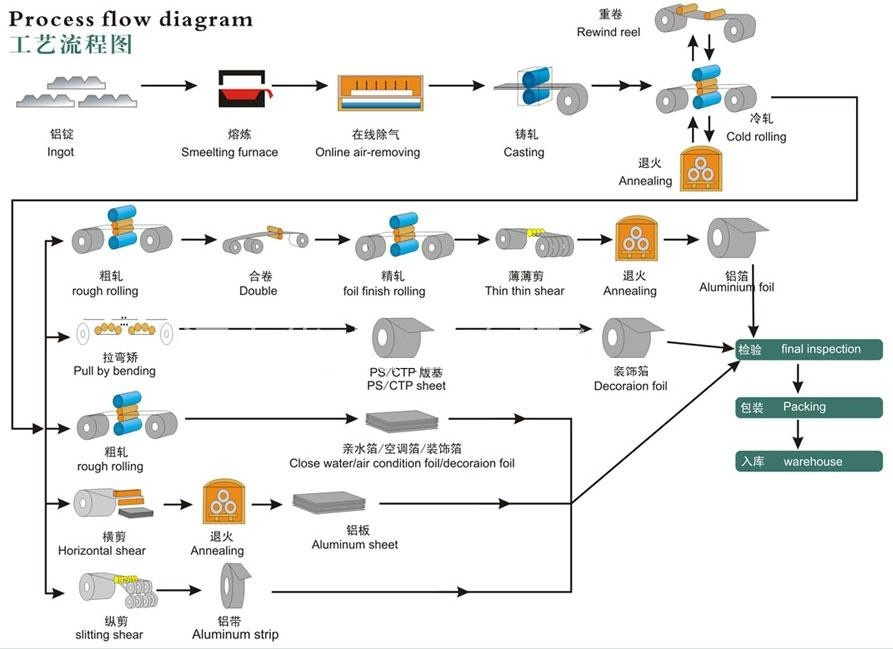

Manufacturing of Aluminium Strip / Foil
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet
