| Prod Model: |
30T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting&Forging Machine |
Product Description
1. Computer integrated control
2. Seat in seat out cylinder
3. Hydraulic mold asjustment
4. Automatic lubrication system
5. Special pressure relief device
|

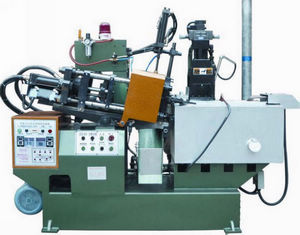

hot chamber die casting machine parameter |
|
Unit |
Specification |
Item |
Unit |
Specification |
Item |
|
Clamping Force |
KN |
300 |
Volume of Crucible(Zinc) |
KG |
85 |
|
Diameter of Di-Cylinder |
mm |
60 |
Oil Pump Flow |
L/min |
41 |
|
Tie Bar Diameter |
mm |
46 |
Accumulator Volume |
L |
16 |
|
Opening Stroke |
mm |
140 |
Oil Tank Volume |
L |
180 |
|
Space between Tie Bars (H*W) |
mm |
260*260 |
Dry Cycle Time |
s |
3.5 |
|
Die Thickness (Min.~max.) |
mm |
150~300 |
Heating Power of Spray Nozzle |
KW |
1.2 |
|
Stroke of Injection Cylinder |
mm |
90 |
Heating Power for Material Melt |
KW |
9~12 |
|
Diameter of Injection Plunger |
mm |
38 |
Fuel Oil Use for Material Melt |
KG/H |
1.5 |
|
Injection Force |
mm |
30 |
Motor Power |
KW |
7.5 |
|
Diameter of Cylinder |
mm |
65 |
Hydraulic Pressure |
Mpa |
8~10 |
|
Effective Shot Weight |
g |
150~220 |
Overall Dimensions |
mm |
2800*1000*1900 |
|
Traverse Stroke |
mm |
220 |
Machine Weight |
t |
1.4 |
Founded in 1990, Dongguan Jintai Die Casting Machine Co., Ltd. is an enterprise mainly manufacturing and dealing with 15T, 20T and 30T zinc alloy hot chamber die-cast machines, Our machines and various components produced by our company are suitable for small die-casting hardware pieces and pulling heads and sheets.
Due to advanced manufacturing equipment and technology, rational production design and well-chosen raw materials, precise processing, reliability and long service life as well as stringent quality control and high quality endless pursuit, our products have been enjoying popularity in the markets for years and are sold to many provinces and cities such as Guangdong, Guangxi, Fujian, Sichuan, Jiangxi, Shandong, Hebei, Jiangsu and Zhejiang.
Since our establishment, we have been adhering to our principle of "Survive via Quality and Create Effects via quantity as well as the policy Technology Introduction and Proprietary Technical Research and Development". We persist in our motto of "to develop new products, raise the technical concentration level of products, strengthen employees' sense of quality and offer products at favorable price for customer satisfaction achievement".
Sticking to our tenet of "operation philosophy Quality and Good Will Go First", we are willing to cooperate with various customers tightly for mutual development and benefits in the future. We also appreciate your support and are deeply convinced that we are your preferred investment partner. Please contact us for business negotiation!
