| Prod Model: |
TL-1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
Flange |
| Surface Treatment: |
Without Treatment |
| Head Type: |
Allotype |
| Material: |
["Low Carbon Steel, Low Carbon Steel, Low Carbon S", "Low Carbon Steel, Low Carbon S"] |
Product Description

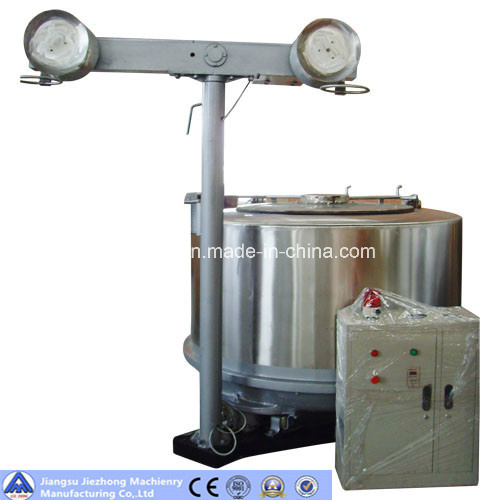

Hydro extractor, spin dryer, laundry dryer, dewatering machine, spinning machine, centrifuging machine
This hydro extractor isto do water extracting job after the fabric is washed
Features:
The drum of this machine is made of stainless steel
Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
The extracting speed of this machine is from 950 rpm to 750rpm
The capacity of this spinning machine is 210kg, and it will make the material inside dried by its high Centrifugal speed
The capacity of this hydro extractor series can be 40kg 60kg 90kg 120kg 210kg
Equipped with special brake arms which is durable and reliable make the machine more safe.
The motor will start with slow speed and reach supposed speed gradually, the drum will be driven by triangle rubber belt, running smooth and synchronous.
Specification of Invert Hydro Extractor
Model: TL1500
Motor power: 8kw
Diameter of drum: 1500mm
Overall dimensions: 2550*1400
Weight: 2100kg
Description of this Machine
1. Hydro Extractor Capacity: 40kg-650kg
2. Perfect quakeproof, auto controlling and safe system
3. Stainless steel drum and shell.
4. Hydro extractor of taizhou haifeng machinery manufacturing co, . Ltd: The diameter of the machine could be Φ 600mm, Φ 800mm, Φ 1000mm, Φ 1200mm, Φ 1500mm. Three legs suspended machine is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.
|
Specif |
Motor power(kw) |
Diamcter of dram mm |
Overall dimensions mm |
Weight
(kg) |
|
TL752-500(30kg) |
1.5 |
500 |
950×600 |
300 |
|
TL752-600(50kg) |
2.2 |
600 |
1220×700 |
500 |
|
TL753-800(90kg) |
4 |
800 |
1720×840 |
800 |
|
TL751-1000(120kg) |
5.5 |
1000 |
1830×850 |
1400 |
|
TL754-1200(210kg) |
7.5 |
1200 |
2100×1050 |
1800 |
|
TL301-1500(350kg) |
8 |
1500 |
2550×1400 |
2100 |
|
TL-1800(650kg) |
12 |
1800 |
2700*1560 |
2300 |
Jiangsu Jiezhong Machinery Manufacturing Co., Ltd is one of the leading manufacturers of industrial and commercial laundry equipments in China for years. In 2013, Jiezhong became the only one cooperative partner of Accurate Technologies in Thailand. Since then, Jiezhong has the right to sell the Image brand to domestic and foreign countries. Also, Jiezhong has been engaged with customers from a wide varity of industries, invested time and energy in our customers' maintenance and development, offering products and service designed to face the challenges we meet every day.
As a professional manufacturer, our products are widely recognized and trusted by customers all over the world and are applied in hotels, hospitals, military, laundry companues, for its superb quality, reasonable prices and stylish designs. Our main products are: Washer extractor, barrier washer, tumble dryer, ironing machine, and folding machine. Also we sell Image brand products from Thailand named tunnel washer, deep chest ironer and towel folding machine. To ensure high quality, our company spares no expense to the introduction of international advanced equipment, such as laser cutting machines.
We take full responsibility of repair, replacement, if serious quality problems happen during the term of service. Our company is commented to providing the best solution for your laundry. We have served thousands of satisfied customers around the market, enjoying a high reputation both at home and abroad.
Nevertheless, we welcome your visit and are looking forward for future cooperation for mutual benefits.
