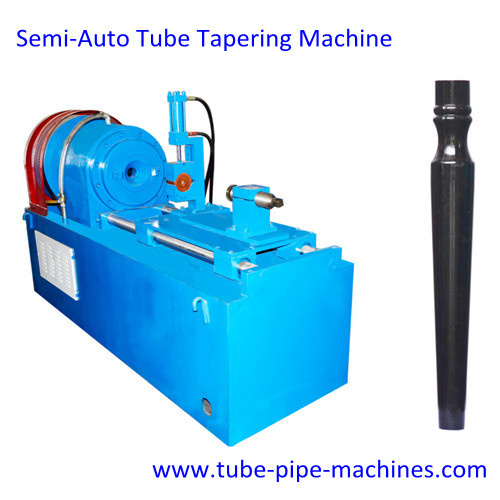

38-140 Semi-Auto Tube Tapering Machine

Prod Model:	RG-S38-140
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Main Features:
Easy to operate.
Easy to maintin.
Wide working range.
Requires no special location.
Canbe designed according to cutstomers'reqirements.
Common uses for the tapering machine include:

Rails or balustrades
Furniture legs
Furniture frames
Lighting frames
Lighting poles
Flag poles
Bicycle parts
Tapering machines can be set up with manual, semi-auto or fully automatic feeding. This should not impact the work that the machine is capable of performing when managing different jobs. They function by using four die rotary hammering mechanisms to taper a tube to its final form. As the tube is fed into the machine, it will be swaged by the dies to taper it into the desired form, which will be set according to the specifications on the control mechanism. Each model can also be customized based on the taper length or diameter of pipe that the customer will be working with.

A high quality tapering machine will use tools that move the dies in and out, offering as many as 3000 blows per minute to hammer the tube into the desired shape. Most tapering machines can manage carbon steel, titanium, copper, iron, aluminum, or carbon steel with consummate ease. The restriction on the capabilities of the machine will revolve more around the thickness and gauge of the pipe to be tapered. As these restrictions will be listed on the capabilities of the machine so you should choose the model which is most appropriate for your needs.

The main advantage of using a tapering machine over a rotary swaging machine is that in this case the grain structure of the pipe which is fed into the machine will remain intact due to its shorter size. This will help to increase the length of the tube and create some additional thickness to the walls rather than removing or compromising the material. Jobs that will require you to create additional strength for the pipe you are working with, are perfect to use this machine.

You can use a tube tapering machine with hot or cold materials based on the horsepower and motor size specified in the machine. The thickness of the pipe and the strength of the material to be tapered will also impact how the materials should be prepared to create a clean tapered edge. You will need to determine how each type of material will lengthen or thicken when it is tapered to ensure that the altered pipe is suitable for the project once the pipe is installed, particularly if they will be providing stability or balance for furniture or similar items.
