Product Description

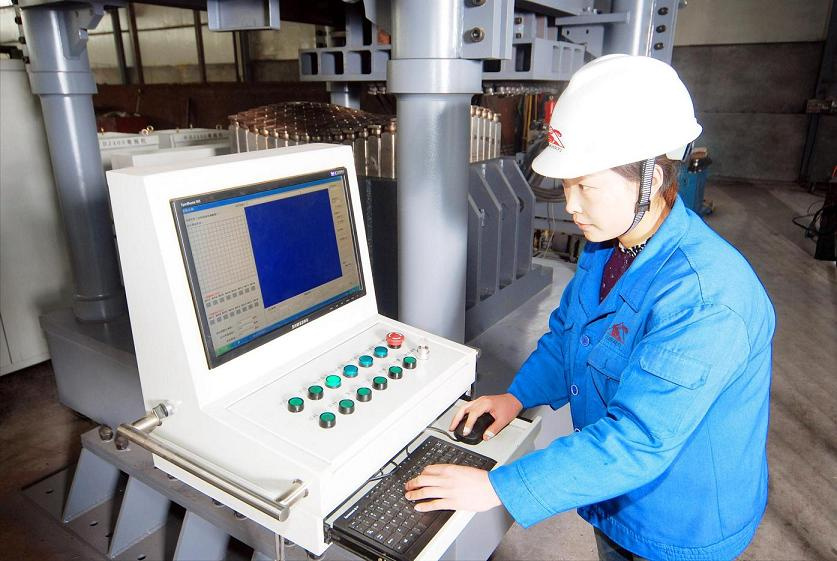

The ship hull plates are of doubly curved plates. 3D CNC plate bending machines let you produce the 3D curved plates in an easier way instead of line heating.
Please note that the max. Thickness of the plate is 25mm, and the max. Wodth is 2500mm.
|
No. |
Item |
Unit |
Models |
|
SKWB -1500 |
SKWB- 2000 |
SKWB- 2500 |
SKWB- 3000 |
|
1 |
Plate |
Max. Width (B) |
mm |
1500 |
2000 |
2500 |
3000 |
|
Max. Thickness(T) |
mm |
16 |
20 |
25 |
30 |
|
Max. Length(T) |
mm |
As per the requirement of customers |
|
2 |
Forming shape |
|
3D curved: Pillow-shape and Saddle-shape |
|
3 |
Yield strength( ) |
N/mm 2 |
235; 345 |
|
4 |
Minimum bending radius (r) |
mm |
R≈0.9 B |
|
5 |
Dimension of square press head |
mm |
105×105 |
135×135 |
165×165 |
195×195 |
|
6 |
Number of press head in upper die (hydraulic power drive) |
set |
16×16 |
16×16 |
16×16 |
16×16 |
|
7 |
Total width of the upper die |
mm |
1680 |
2160 |
2640 |
3120 |
|
8 |
Number of press headin lower die (motor drive) |
set |
17×17 |
17×17 |
17×17 |
17×17 |
|
9 |
Working pressure of hydraulic power station |
MPa |
Max 25 |
|
10 |
Precision of forming |
|
Chinese shipbuilding quality standard GB/T4000-2005 |
