| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Ton |
| Pay Type: | T/T,Western Union |
| Prod Model: | 1100 3003 5052 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: | 1100 3003 5052 |
| Thickness: | 1.5mm to 6mm |
| Width: | up to 1500mm |
| Length: | up to 6000mm |
| Package: | Export Standard Packing or Customers' Demand |
| Place Of Origin: | Shenzhen,China |
| Delivery: | 7-30 Days After Deposit |
| Type: | Aluminum Sheets |
| Application: | Glass Wall |
| Shape: | Flat |
| Surface Treatment: | Mill Finish |
| Alloy: | Alloy |
| Temper: | O - H112 |
| Certification: | ASTMB |
| Grade: | 1000 Series-7000 Series |
| Technique: | Hot Rolled, Cold Rolled, etc |
Quick Detail:

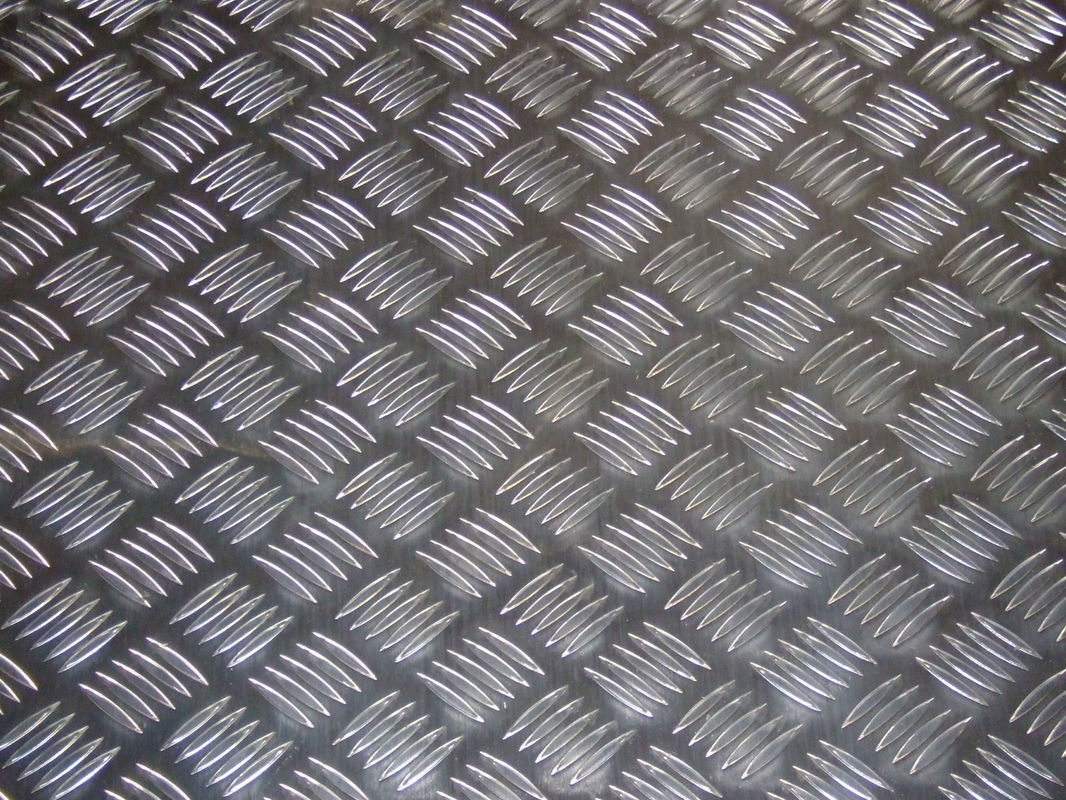

embossing Aluminum Tread Sheet | |
Alloy | 1100,1060, 3003, 5005 5052 |
Temper | H14,H18,H24,H32 |
Thickness (mm) | 1.5mm to 6mm |
Width (mm) | Up to 1500mm |
Length (mm) | Up to 6000mm |
Standard | EN standard ASTM standard |
MOQ | 5ton |

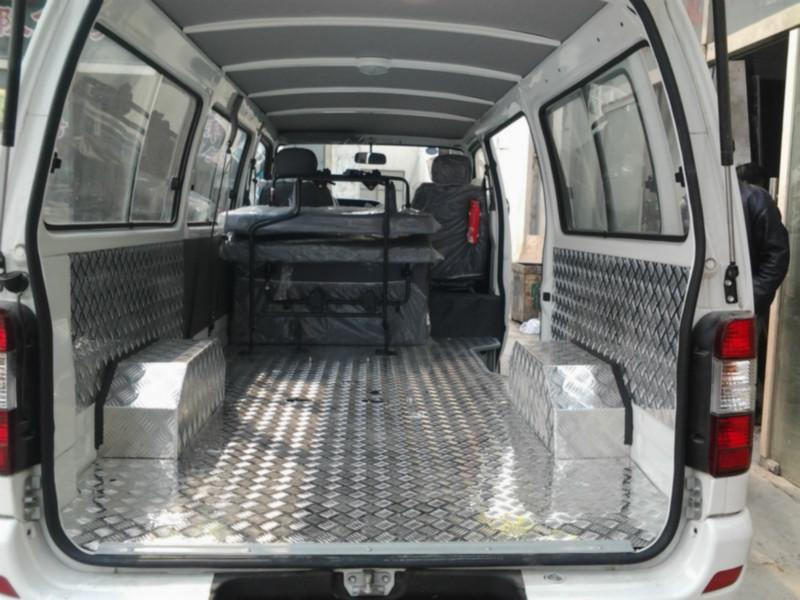

Application | 1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall 2)Household appliances: refrigerators, microwave ovens, audio equipment, etc. |
Description:
Specifications of Aluminum Plate:
1. Grade
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
8000 Series: 8006 8011 8079 etc.
2. Thickness: 0.20mm-320mm
3. Width: 8mm-2400mm
4. Length: 1220 or per customer's request
5. Temper: all tempers, H1X, H2X, H3X, O, HXXX
6. Continuous casting and hot rolled both available
Catalogue
Product Name | Alloy | Temper | Thickness | Width |
Anodized Aluminum Sheet | 1060,1070,1100,3003,3004,3005, 5083,5086,5154,6063,7075,8011 | H1X,H2X,H3X,O,HXXX | 0.20-10mm | 600-2000mm |
Aluminum Tread Plate | 1060,1100,3003,3105, 5052,5083,5754,6061, etc. | H12,H14,H16,H18,H22,H24, H26,H32,H34,H36,H38,O, etc. | 1-6mm | 1600mm max |
Aluminum Checker Plate | 1060,1100,3003,3105, 5052,5083,5754,6062, etc. | H12,14,H16,H18,H22,H24, H26,H32,H34,H36,H39,O, etc. | 1-7mm | 1600mm max |
Aluminum Diamond Plate | 1060,1100,3003,3105, 5052,5083,5754,6063, etc. | H12,H14,H16,H18,H22,H24, H26,H32,H34,H36,H40,O, etc. | 1-8mm | 1600mm max |
Embossed Aluminum Sheet | 1060,1100,3003,5000,2A12, 6061,6063,7075,8011, etc. | T6,O,H12,H14,H16, H18,H22,H24,H32, etc. | 0.2-200mm | 200-2200mm |
Copolymer Coated Aluminum Sheet | 1145,8011 | soft | 0.15-0.20mm (Coating thickness: 0.015mm) | 15-2400mm |

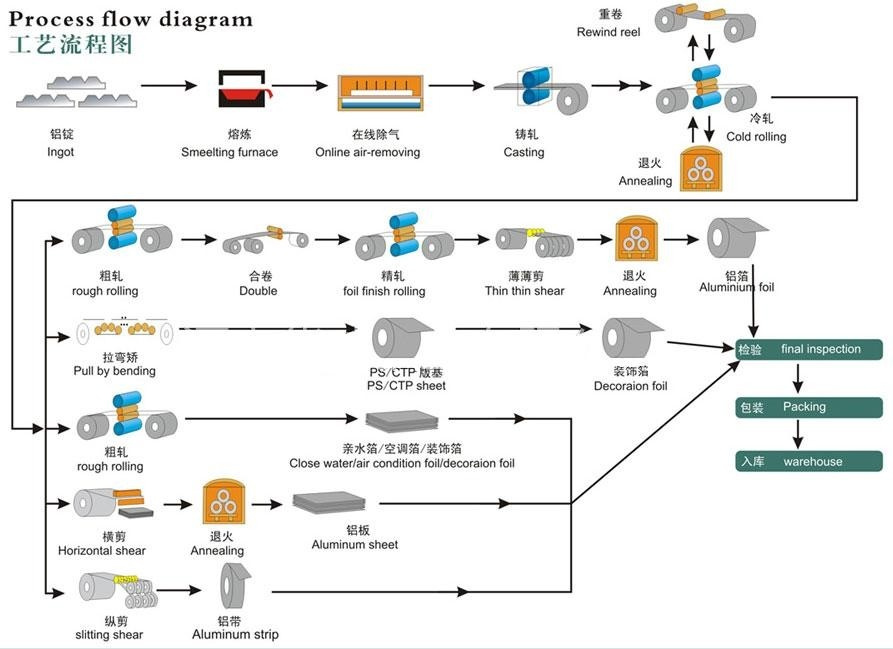

Manufacturing of Aluminum Sheet:
Ingot + Master Alloy → Melting → Holding Fumace → Continuous Casting → Cold Rolling(Mediate Annealing) → Horizontal shear → Annealing → Aluminum Sheet
