| Prod Model: |
SSDHL0.5-01D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Please Offer Us The Pantone Which You Would Like |
| Feature: |
Insulating |
| Running Mode: |
Moving |
| Structure: |
Hook Crane |
| Installation: |
Chain Hoist |
| Type Of Work: |
Light Level |
| Application: |
All Situations |
Product Description

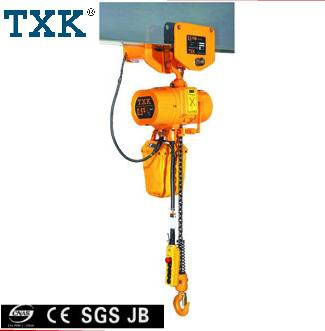

0.5T electric chain hoist with motorized trolleyModel: SSDHL0.5-01
Capacity(ton): 0.5
Lifting Speed(m/min): 6.8
Power (Kw): 1
Phase: 3
Voltage: 200V-600V
Chain Diameter (mm): 6.3
Chain Strips (piece): 1
Details of products:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.
|
Size Specification |
|
Model |
H |
A |
B |
D |
E |
|
SSDHL0.5-01S |
635 |
460 |
230 |
288 |
178 |
|
SSDHL0.5-01D |
650 |
545 |
260 |
288 |
178 |
|
SSDHL01-01S |
650 |
520 |
260 |
300 |
176 |
|
SSDHL01-01D |
650 |
582 |
280 |
300 |
176 |
|
SSDHL1.5-01S |
770 |
615 |
295 |
430 |
265 |
|
SSDHL1.5-01D |
770 |
670 |
313 |
430 |
265 |
|
SSDHL02-01S |
770 |
615 |
295 |
430 |
265 |
|
SSDHL02-01D |
770 |
670 |
313 |
430 |
265 |
|
SSDHL02-02S |
815 |
520 |
260 |
300 |
236 |
|
SSDHL02-02D |
815 |
582 |
280 |
300 |
236 |
|
SSDHL2.5-01S |
830 |
615 |
295 |
430 |
265 |
|
SSDHL2.5-01D |
830 |
670 |
313 |
430 |
265 |
|
SSDHL03-01S |
830 |
615 |
295 |
430 |
265 |
|
SSDHL03-01D |
830 |
670 |
313 |
430 |
265 |
|
SSDHL03-02S |
930 |
615 |
295 |
430 |
320 |
|
SSDHL03-02D |
930 |
670 |
313 |
430 |
320 |
|
SSDHL03-03S |
940 |
520 |
260 |
350 |
205 |
|
SSDHL03-03D |
940 |
582 |
280 |
350 |
205 |
|
SSDHL05-02S |
1015 |
615 |
295 |
430 |
325 |
|
SSDHL05-02D |
1015 |
670 |
313 |
430 |
325 |
|
Single Speed Technical Parameters |
|
Model |
SSDHL |
|
0.5-01S |
01-01S |
1.5-01S |
02-01S |
02-02S |
2.5-01S |
03-01S |
03-02S |
03-03S |
05-02S |
|
capacity(t) |
0.5t |
1t |
1.5t |
2t |
2t |
2.5t |
3t |
5t |
|
Lifting speed(m/min) |
7.2 |
6.6 |
8.8 |
6.6 |
3.3 |
5.4 |
5.4 |
4.4 |
2.2 |
2.7 |
|
Motor power(Kw) |
0.8 |
1.5 |
3 |
3 |
1.5 |
3 |
3 |
3 |
1.5 |
3 |
|
Rotation speed(r/min) |
1440 |
|
Insulation grade |
F |
|
Power supply |
3P 220V-690V |
|
Control voltage |
24V/36V/48V |
|
No. of chain |
1 |
1 |
1 |
1 |
2 |
1 |
1 |
2 |
2 |
2 |
|
Spec. of load chain |
Φ 6.3 |
Φ 7.1 |
Φ 10.0 |
Φ 10.0 |
Φ 7.1 |
Φ 11.2 |
Φ 11.2 |
Φ 10.0 |
Φ 7.1 |
Φ 11.2 |
|
Net weight(Kg) |
47 |
61 |
108 |
115 |
73 |
115 |
122 |
131 |
85 |
151 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Dual Speed Technical Parameters |
|
Model |
SSDHL |
|
0.5-01D |
01-01D |
1.5-01D |
02-01D |
02-02D |
2.5-01D |
03-01D |
03-02D |
03-03D |
05-02D |
|
capacity(t) |
0.5t |
1t |
1.5t |
2t |
2t |
2.5t |
3t |
5t |
|
Lifting speed(m/min) |
7.2/2.4 |
6.9/2.3 |
9.0/3.0 |
6.9/2.3 |
3.3/1.1 |
5.4/1.8 |
5.4/1.8 |
4.5/1.5 |
2.4/0.8 |
2.7/0.9 |
|
Motor power(Kw) |
0.8/0.27 |
1.8/0.6 |
3.0/1.0 |
3.0/1.0 |
1.8/0.6 |
3.0/1.0 |
3.0/1.0 |
3.0/1.0 |
1.8/0.6 |
3.0/1.0 |
|
Rotation speed(r/min) |
1440 |
|
Insulation grade |
F |
|
Power supply |
3P 220V-690V |
|
Control voltage |
24V/36V/48V |
|
No. of chain |
1 |
1 |
1 |
1 |
2 |
1 |
1 |
2 |
2 |
2 |
|
Spec. of load chain |
Φ 6.3 |
Φ 7.1 |
Φ 10.0 |
Φ 10.0 |
Φ 7.1 |
Φ 11.2 |
Φ 11.2 |
Φ 10.0 |
Φ 7.1 |
Φ 11.2 |
|
Net weight(Kg) |
54 |
74 |
144 |
150 |
86 |
148 |
159 |
168 |
102 |
184 |
