| Prod Model: |
SJ |
| Position Of Pump Shaft: |
Vertical Pump |
Product Description
CHINA AOLI MACHINERY GROUP

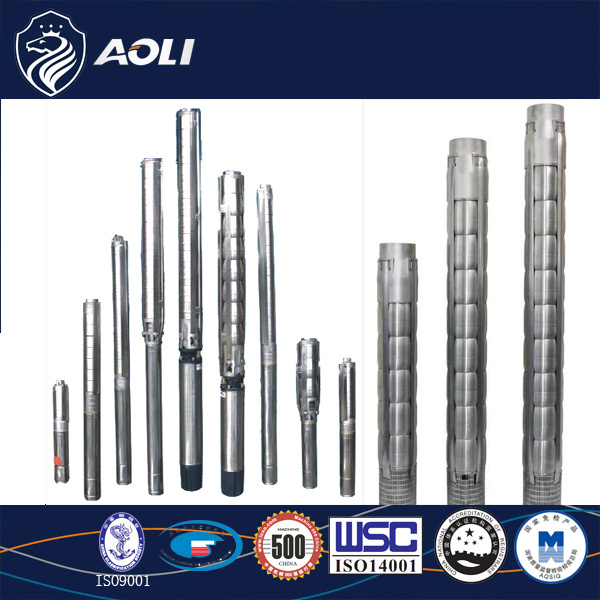

6 inch stainless steel deep well submersible pump Performance:
*For water supply.
*For irrigation
*For civil and industrial applications
*For deep well
6 inch stainless steel deep well submersible pump Operating Limits
Water temperature up to 35 Centigrade
Minimum internal diameter of well: 150mm
Maximum sand quantity into the water: 25g/m3
6 inch stainless steel deep well submersible pump Structural Charactristics:
Material:
1, Top Bracket: Casting Stainless Steel( AISI304ss)
2, Bushing: High Grade Stainless Steel Added wih Special Hardening Material(AISI304ss)
3, Intermedate Bearing: Polyurethane
4, Diffuser: Casting Stainless Steel( AISI304ss)
5, Impeller: Casting Stainless Steel( AISI304ss)
6, Neck Ring: Casting Stainless Steel( AISI304ss)
7, Shaft: (1)AISI304ss (2)AISI316ss
8, Bottom Bracket: Casting Stainless Steel( AISI304ss)
9, Suction Strainer: AISI304ss
10, Coupling: Stainless Steel( AISI304ss)
Motor:
Rewindable motor
Three-phase: 380-415V
Auto Micro Computer, on request.
Special features on request
Three-phase: 220-240V
Other voltages.
Frequency 60Hz.
Other mechanical seal.
The length of cable over than 1.5m.
*Insulation class B.
*The thermal cutout relay (motor protector) is incorporated in single phase motors.
*Protection IP 68.
Delivery casing with built-in non-return valve
Voltage and frequency available on request.
The data below is a part of our products,we can choose the perfect pump for you according to your requirements.
Please feel free to contact us if you have any question.
Contact Details:
David Song
Sales Manager
Tel: +86-21-39170017(direct), Fax: +86-21-39170010
Mob: +86-(0)13816987562
Shanghai Aoli Pump Manufacture Co., Ltd is located in 718 Shengxin Rd(S), Nanxiang Hi-tech Development Park, covering a floor area of 52, 200m2 and a building area of 39, 800 m2. It now has more than 1000 employees and three major wholly-owned subsidiaries including Shanghai Aoli Electromotor Co., Ltd, Shanhai Aoli Valve Manufacure Co., Ltd and Shanghai Meide Pump Manufacture Co, Ltd. Its products boasts excellent performance and quality, thus gaining various professional and honorable cerificates.
Shanghai Aoli is the one of Top 500 of the machinery industry and Top 20 of the pump industry in China. It took the lead in the sector in passing the accreditation of ISO 9001: 2000 international Quanlity Management System. The company has the top-level performance testing centre of water pump in China and over 300 sets of advanced production and inspection equipment. At present, it is developing over 20 major series of products under over 10, 000 specifications and an anuual output of more than 120, 000 sets.
Our products are very popular by the clients from South-east Asia, Middle East, Nothern America and European. We had a total annual amount more than 12, 000, 000 USD in the near 2006. We are sincerely looking forward to establishing business relation with your esteemed company.
Major Products Series:
I. Single stage Centrifugal Pump Series.
---- ALG series vertical centrifugal pump
---- ALW series horizontal type centrifugal pump
---- ALGB series detachable vertical centrifugal pump
---- SG series pipe pump
---- PBG type canned pipeline pump
---- ZX series self-priming pumps
II. Multistage Centrifugal Pump Series
---- ALDM series multistage high-rise feed water
---- ALDG series vertical pipeline multistage centrifugal pumps
---- ALDF series stainless steel vertical multifugal centrifugal pumps
---- ALDW series horizontal multifugal centrifugal pumps
III. Sewage Pump Series
---- QW series submersible high efficiency non-clogging sewage pumps
---- YW series submerged high efficiency non-clogging sewage pumps
---- GL & LW series ordinary high efficiency non-clogging sewage pumps
---- ZW series self-priming non-block sewage pumps
---- JYWQ series automatic agitating sewage pumps
IV. Chemical Pump Series
---- QBY series air-driven and DBY series electic diaphgragm pumps
----CQ series magnetic driven pumps
---- AFB and FB series stainless steel anticorrosion pumps
---- FSB series fluoroplastic alloy centrifugal pumps
---- FS series glass reinforced plastic centrifugal pumps
V. Oil Pump Series
VI. Fire Pump Series
---- XBD-ALG series veritcal single stage fire pump
---- XBD-ALG series veritcal multistage fire pump
---- XBD-HL Series constant pressure fire pump
V. Pump Electrical Control Cabinet Series
---- ALBK series variable frequency control cabinets
---- ALRK series intelligent soft start control cabinets
---- ALDK series double power switch control panels
VI. Water Supply Equipment Series
---- ALCW series intelligent non-negative pressure constant flow water supply
---- ALCB-s series full automatic variable frequency constant pressure wanitary water supply equipment
----AlCB-X Series Full Automatic variable frequency constant pressure fire control water supply equipment
