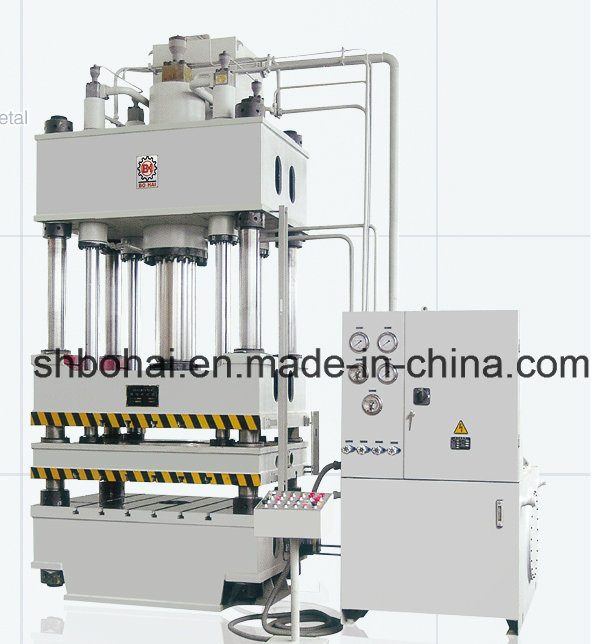

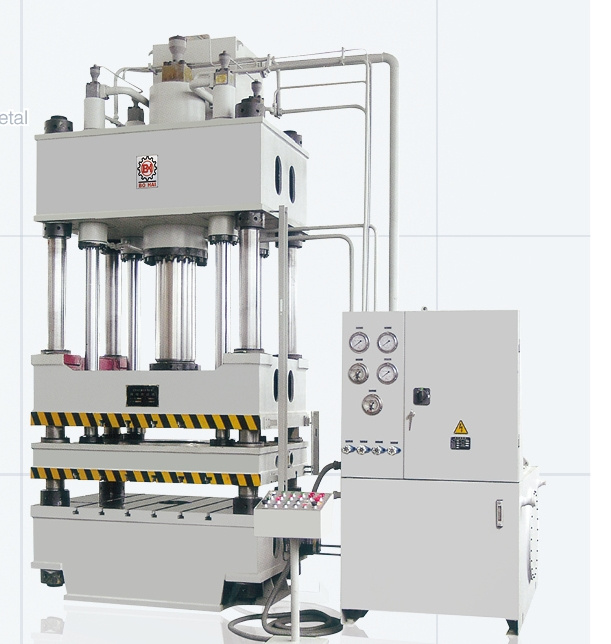

Y28 Double-Action Hydraulic Drawing Press
(1)Features of Y28 Double-Action Hydraulic Drawing Press : 1.Computer Optimized Design, 3-beam&4-column structure or Gantry-Style structure 2.Gantry-style structure with high rigidity; Four-column structure with simple, economic and practical working 3.Drawing and Blankholder Slider be linked, Reach to Single action process 4.Safety protection system with mechanic, electric and hydraulic interlock, such as Oil cylinder cavity supporting loop, Cylinder cavity interlocking circuit with high safety and reliability 5.Control system based on PLC, sensitivity, reliability and flexibility

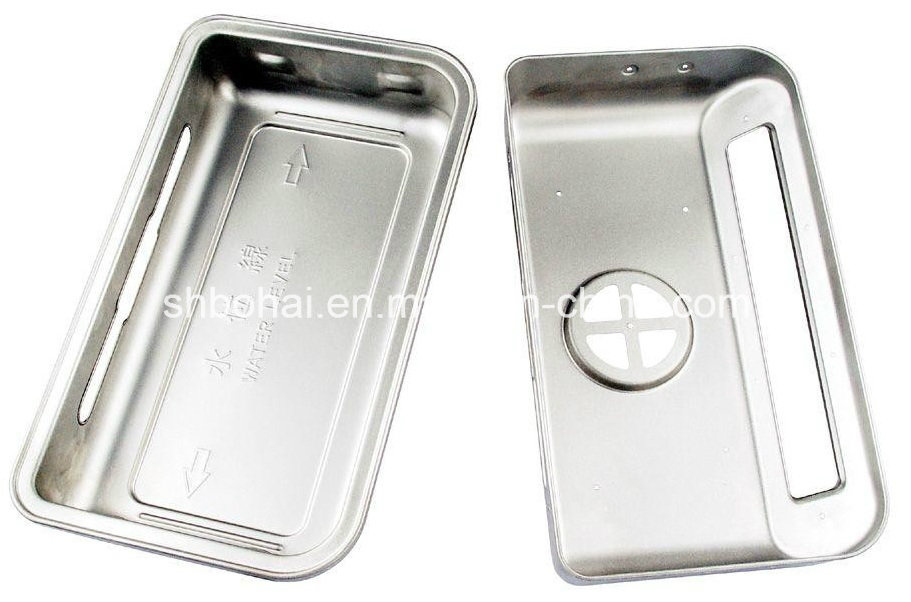

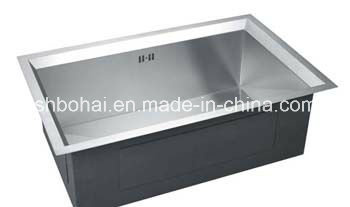

(2)Applications of Y28 Double-Action Hydraulic Drawing Press : Suitable for all deep drawing process, especially in the following fields: 1.Pressure Vessel, Drawing and forming for barrel and head cap 2.Deep drawing for Stainless steel sink 3.Drawing for long work piece, like bath 4.Drawing and Forming for Big automobile panel and parts
(3)Optional configuration of Y28 Double-Action Hydraulic Drawing Press a.Proportional regulation for slide speed and force; b.Proportional regulation for cushion force; c.Light curtain safety device; d.Oil heating/cooling unit; e.Industry touching screen monitor; f.Displacement sensor; g.Floating guide-way and rolling bracket for die exchange; h.non-recycling column slide device; i.Working area lighting;Power Socket
(4)Technical Specification of Y28 Double-Action Hydraulic Drawing Press
Item
Unit Type
Y28- 100/150
Y28- 100/180
Y28- 200/300
Y28- 400/600
Y28- 500/800
Slider Drawing Force
kN
1000
1000
2000
4000
3150/5000
Slide Blank Holder Force
kN
500
860
1000
2000
3000
Ejecting Force of Ejector
kN
350
350
300
530
1000
Knock-out Force of Tensile Slider
kN
250
250
470
800
1100
Knock-out Force of Blankholder Slider
kN
300
300
630
850
Centre drilling size of Blankholder slider
mm
φ330
φ380
φ500
800*800
2400*1400
The MAX.Operating Pressure of Liquid
MPa
25
25
25
25
25
The MAX.Distance from Tensile Slider to Working table
mm
1000
1365
1530
2190
1600
The MAX.Distance from Blankholder Slider to Working table
mm
500
800
800
1300
1600
The MAX. Stroke of Tensile Slider
mm
630
630
710
800
1000
The MAX. Stroke of Blankholder Slider
mm
200
350
350
720
1000
The Stroke of Ejection Cylinder
mm
/
/
/
600
350
Active Size of Tensile Slider
Left-Right
mm
630
630
900
700
2300
Front-Back
mm
630
630
900
700
1400
