| Prod Model: |
LM-768 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

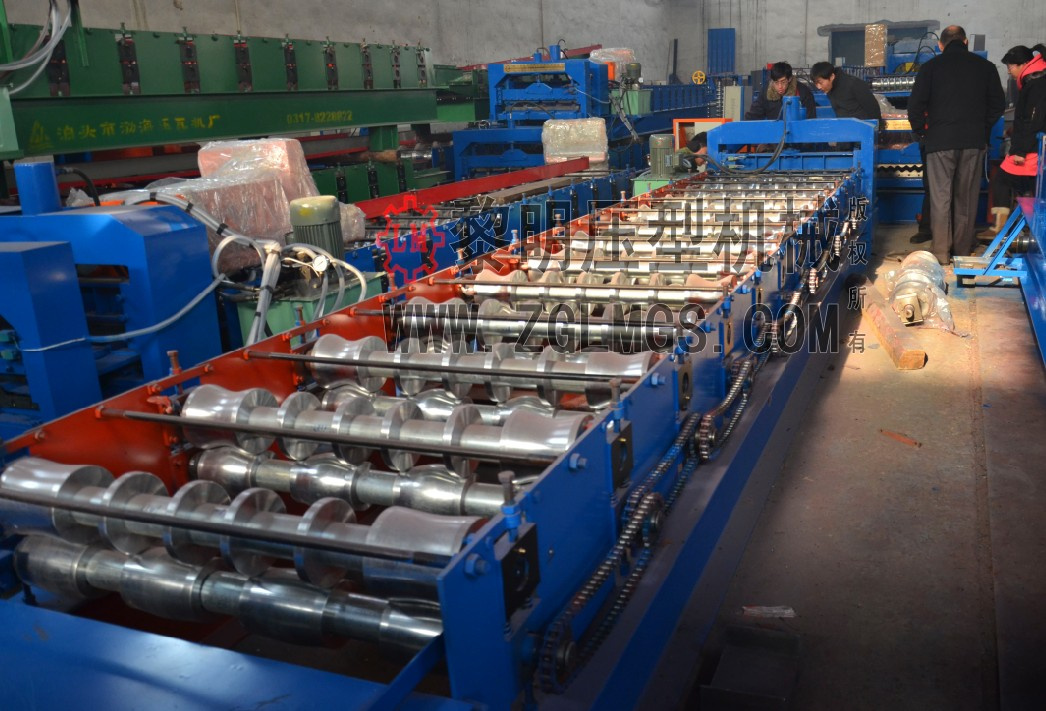

768 Glazed Tile Roll Forming Machine Line
1. Profile
1.1 Feeding width: 1250mm
1.2 Effective width: 1000mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow
Decoiling--feeding---forming---cutting---products receiving
3. Manual Decoiler
3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1250mm
3.3 Carrying capacity: 5T
4. Forming Device
4.1 Number of forming steps: 15 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 4kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phase
5. Cutting Device
5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62° C
5.3 cutting system: Advanced hydraulic drive, automatic cutting after
Forming, no distorting or wasting, high level safety factor.
6. Controlling Device
6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2
7. Hydraulic
7.1 Advanced hydraulic system from Taiwan
7.2 Power: 3kw
8. Simple output frame
Simple frame, 3 pcs of 6m
9. Spare parts
9.1 easy damaged parts: Conk 2 pcs, fuse-link 4 pcs
9.2 rubber mat 1 pcs
9.3 bolt spanner 1 pcs
10. Payment and terms
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
11. Warranty
One year, and we will provide the technical support for the whole life.
