| Prod Model: |
8/6 E-AHR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mqq: |
1 Set |
| OEM: |
Accept |
| Certificate: |
ISO 9001, CE |
| After Sales: |
Yes |
| Color: |
Blue, Yellow, Green or as Customer's Request |
| Material: |
Wear-Resistant Metal or Rubber |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description

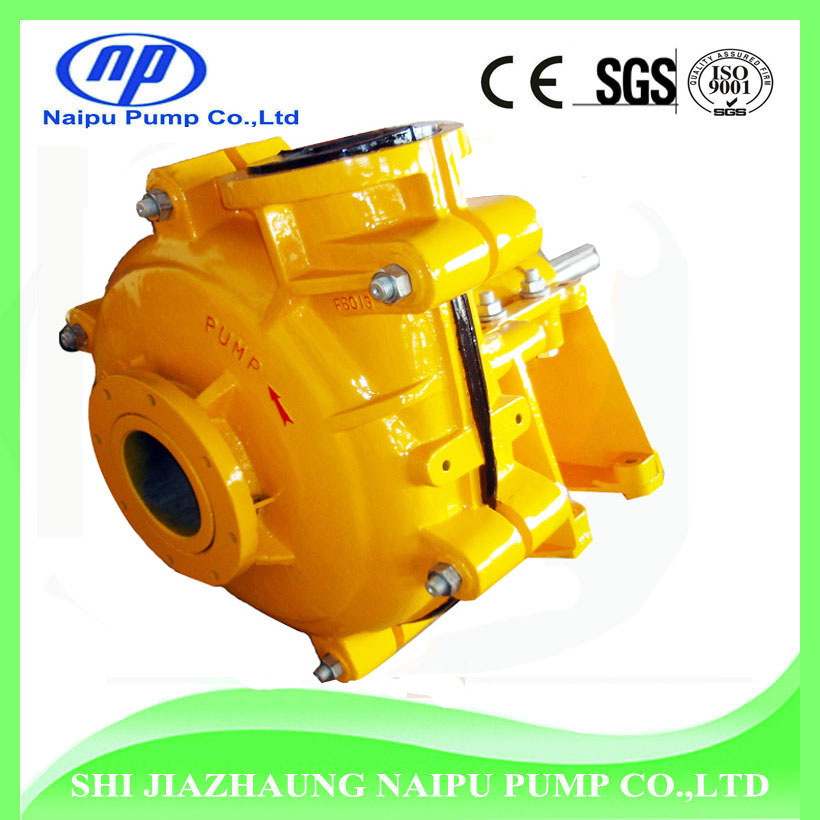

8/6 E-AHR Rubber liner Slurry Pump
Company profile
Shijiazhuang Naipu Pump Co.,ltd is one of largest factory for slurry pump, sand gravel pump, and dredging pump.
Our pump Can totally interchange AH HH M L SP AF G ,ZJQ , ZG , ZJB , ZJ and so on series.
We also can supply OEM Order for spare parts
Description:
Name: NP-AH(R),M,HH Slurry Pumps
Pump Type: Centrifugal Horizontal, single or multistage Slurry Pump
Material : High chrome or Rubber
Drive Type: ZVz/CRz/CV/DC
Power: Motor / Diesel
Discharge Size: 1 to 18 inch
Capacity: 0-1000 (l/s)
Head: 0-70(m)
NP-AH SLURRY PUMP PERFORMANCE PARAMETERS
Type |
Allowable Mating Max. Power(Kw) |
Clear Water Performance |
Impeller |
Capacity/Q m³/hr |
Head/m |
Speed/rpm |
Max Efficiency/% |
NPSH/m |
Nos of Vane |
Impeller Diameter/mm |
1.5X1-NP-AH |
15 |
12.6--28.8 |
6--68 |
1200--3800 |
40 |
2--4 |
5 |
152 |
2X1.5-NP-AH |
15 |
32.4--72 |
6--58 |
1200--3200 |
45 |
3.5--8 |
5 |
184 |
3X2-NP-AH |
30 |
39.6--86.4 |
12--64 |
1300--2700 |
55 |
4--6 |
5 |
214 |
4X3-NP-AH |
30 |
86.4--198 |
9--52 |
1000--2200 |
71 |
4--6 |
5 |
245 |
6X4-NP-AH |
60 |
162--360 |
12--56 |
800--1550 |
65 |
5--8 |
5 |
365 |
8X6-NP-AH |
300 |
360--828 |
10--61 |
500--1140 |
72 |
2--9 |
5 |
510 |
10X8-NP-AH |
560 |
612--1368 |
11--61 |
400--850 |
71 |
4--10 |
5 |
686 |
12X10-NP-AH |
560 |
936--1980 |
7--68 |
300--800 |
82 |
6 |
5 |
762 |
14X12-NP-AH |
560 |
1260--2772 |
13--63 |
300--600 |
77 |
3--10 |
5 |
965 |
16X14-NP-AH |
1200 |
1368--3060 |
11--63 |
250--550 |
79 |
4--10 |
5 |
1067 |
18X16-NP-AH |
1200 |
2520--5400 |
13--57 |
200--400 |
85 |
5--10 |
5 |
1370 |
Feature:
1. centrifugal slurry pumps and spare parts can fully interchange with world famous brand.
2. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries.
3. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
Application:
centrifugal mining slurry pump are widely used in mining, power, metallurgy, coal, deading, building material and other industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
Any requirement , welcome to contact me.
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
