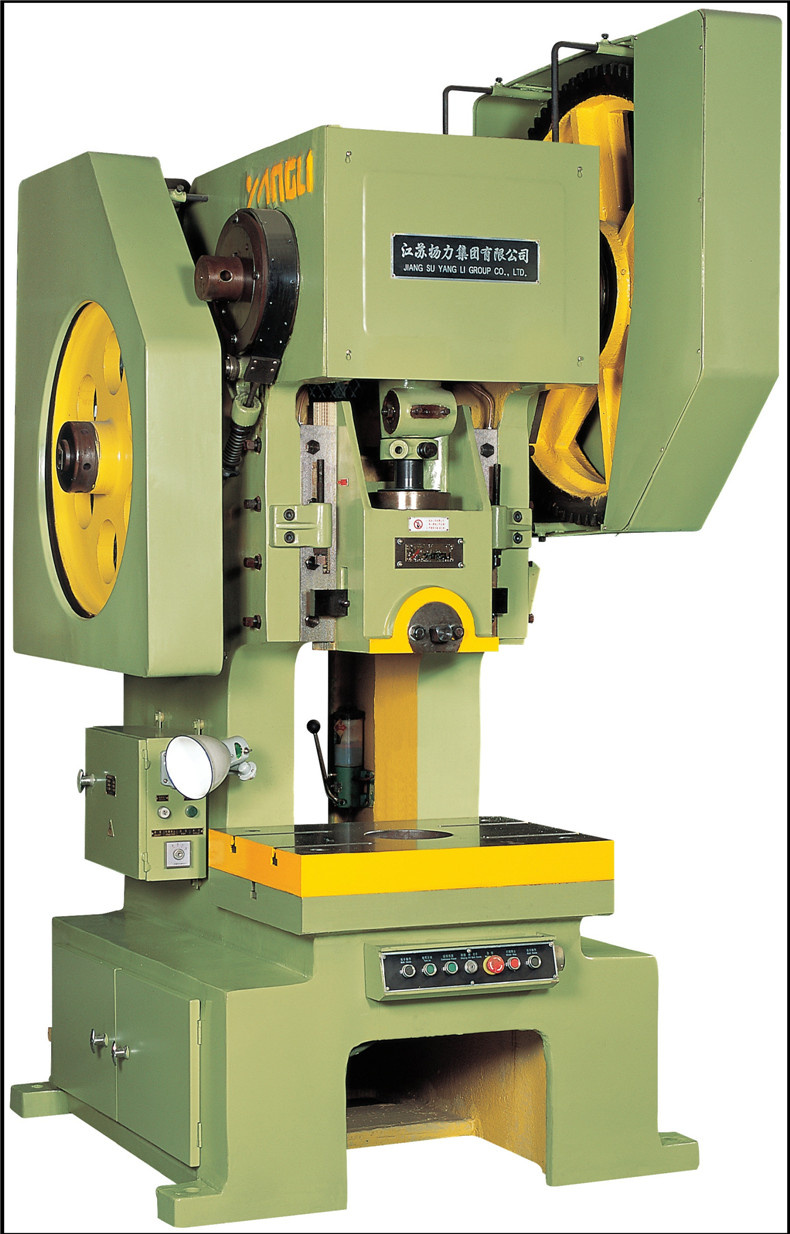

80t Hydraulic Punch Press Power Press Machine (J23-80D)

Prod Model:	J23-80D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	800kn
Nominal Force:	5mm
Slide Stroke:	10-130mm
Max . Die Height:	45mm
Die Height Adjustment:	80mm
Between Slide Center&Farm:	270mm
Bloster(Fbxlr):	520mm*860mm
Type:	General Punching Machine
Controlling Mode:	CNC
Automatic Grade:	Automatic
Power Source:	Electric

Product Description

1. Structure and features
This kind of press is universally used for plate processing,which is applied to shearing, punching,blanking, bending and shallow stretch. The series has structural features as follows:
   The body of the press adopts casting structure with excellent anti-vibration.
   The crankshaft of is placed horizontally, flywheel is palced outside, easy to be maintained.
   The press adopts single key rigidity clutch.
   The sturcture of the slide is like casting case with high rigidity. Inside the slide, there is a shearing block protector, whose structure is simple and after it is overloaded. The safe discs will be ruined. Thus, it protects the press and moulds from being harmed.
 Slide set height adopts handy adjustment with disply and easy to adjust.
 Trianle guide with simple structure and convenient to adjust.
 The press is also set with bimanual operation button and foot peadl to realize continuous, single and adjustment.
 The press is developed at the base of tradtional single turnkey rigidity clutch press and it is in conformity with national compulsory safety standard.
Die cushion optional.
Electrical grease lubrication system is optional.

Below are all models and specifications



		JC23-6.3D	J23-10D	J23-16D	J23-25D	JG23-40D	JC23-63D	J23-80D
capacity	kn	63	100	160	250	400	630	800
nominal force	mm	2	2	2	2.5	4	4	5
slide stroke	mm	0-40	0-60	0-70	0-80	20-120	20-120	10-130
spm	min-1	170	145	125	60	55	50	45
max. die height	mm	105	130	170	180	220	260	270
die height adjustment	mm	20	35	30	45	70	80	80
between slide center&farm	mm	110	130	170	210	260	260	270
bolster(fbxlr)	mm	200x310	240x360	320x480	400x600	480x710	480x710	520x860
bolster opening(dia. xfbxlr)	mm	Φ60	Φ120x20 xΦ100	Φ100	Φ120	Φ220x25 xΦ180	Φ220x45 xΦ180	Φ220x45 xΦ180

bolster thickness	mm	40	50	60	70	80	90	100
bolster opening(dia. xfbxlr)	mm	Φ140x11 xΦ160	Φ130x90 xΦ180	Φ210x160 xΦ240	Φ180x130 xΦ260	Φ200x150 xΦ300	Φ250x200 xΦ340	Φ250x200 xΦ340
slide area(fbxlr)	mm	120x140	150x170	180x200	210x250	270x320	280x320	280x380
shank hole (dia. xdpth)	mm	Φ30x55	Φ30x55	Φ40x60	Φ40x70	Φ50x70	Φ50x80	Φ60x75
max. inclined angle	°	30°	30°	25°	25°	25°	25°	20°
between columns	mm	150	180	220	260	300	350	410
motor power	kw	0.75	1.1	1.5	2.2	4	5.5	7.5
outline size(fbxlrxh)	mm	780x610 x1505	915x700 x1690	1150x900 x1910	1325x990 x2140	1600x1180 x2310	1810x1350 x2640	1810x1410 x2790
net weight	kg	360	600	1080	1900	3180	4218	5240
