Product Description

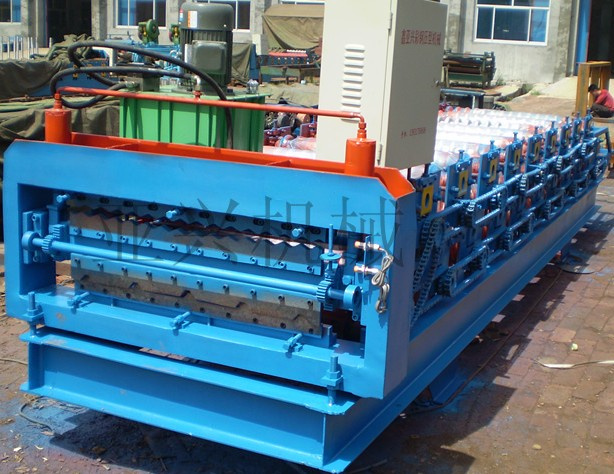

The whole process is computer-controlled. It is the necessary equipment for producing the two kinds of tile profile for industrial workshop and warehouses, super market and so on. This double-layer saves much production cost and cheap to produce two profiles.
Lower cost High efficiency
Reliable working Low energy consumption
Main structure is made of high tensile strength H beam, with precision welded and good rigidity.
Shaft, roller and all components are manufactured precisely to have long lifetime.
Efficient design, easy maintenance and operating.
Forming machine parameter
Feeding width: 1000mm/1000mm
Thickness: 0.3-0.8 mm
Machine dimension: 15000mm× 1400mm × 1500mm
Motor power: 3.0KW
Hydraulic station power: 3 KW
Production line speed: 10-18m/min
Machine weight: 3.5T
Forming row: 9 rows for 850 layer, 11 rows for 840 layer
Roller: #45, chrome
Voltage: 380V/50-60Hz
Shaft, axis: φ 75
Medium plate: 14mm
Main frame: 300 H steel
Wheel, chain: 1 inch
Electrical system: PLC (color-touched-screen)
Frequency converter
Encoder
Machine advantages: Surface is smooth and tidy without abrade, firm bonding after forming and cutting.
Components
Feeding station: One set.
Function and feature: Put the raw material (steel plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming machine: One set
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard planting, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Rolling galvanization thickness: 0.05 mm
Rolling material: Forging Steel 45#
Hydraulic station: One set
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4.0kw
Hydraulic oil: 40#
Forming part: One set
The sheet goes through the main roll forming machine to be formed the certain tile and then goes into the forming part and be press the final tile sheet.
Automatic cutting: One set
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
It contains one set of cutting tools, one hydraulic tank
Material of the cutting blade: Gcr12
Computer controller: One set
It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: Automatic and manual one. The system is easy to operate and use.
Processing precision: Within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
PLC is Taiwan Taida
Transducer brand is Taiwan Taida
The seller should provide Chinese and English language screen.
Other components:
Chain: 1 PCS
Hydraulic oil pipes: 2 PCS,
Electromagnetism valves: 1 PCS
Limit switch: 2 PCS
Packing method
Main machine is nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Sales-term
Payment term: 30% when signing the contact, the rest of payment must be paid when delivery.
After-sale service
If customer needs installation and adjustment instruction, we could send personal technicians for help, but the transportation and, accommodation cost and worker's salary will be paid by buyer.
Delivery time
20 working days since getting deposit.
