| Prod Model: |
FDYX87-292-858 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

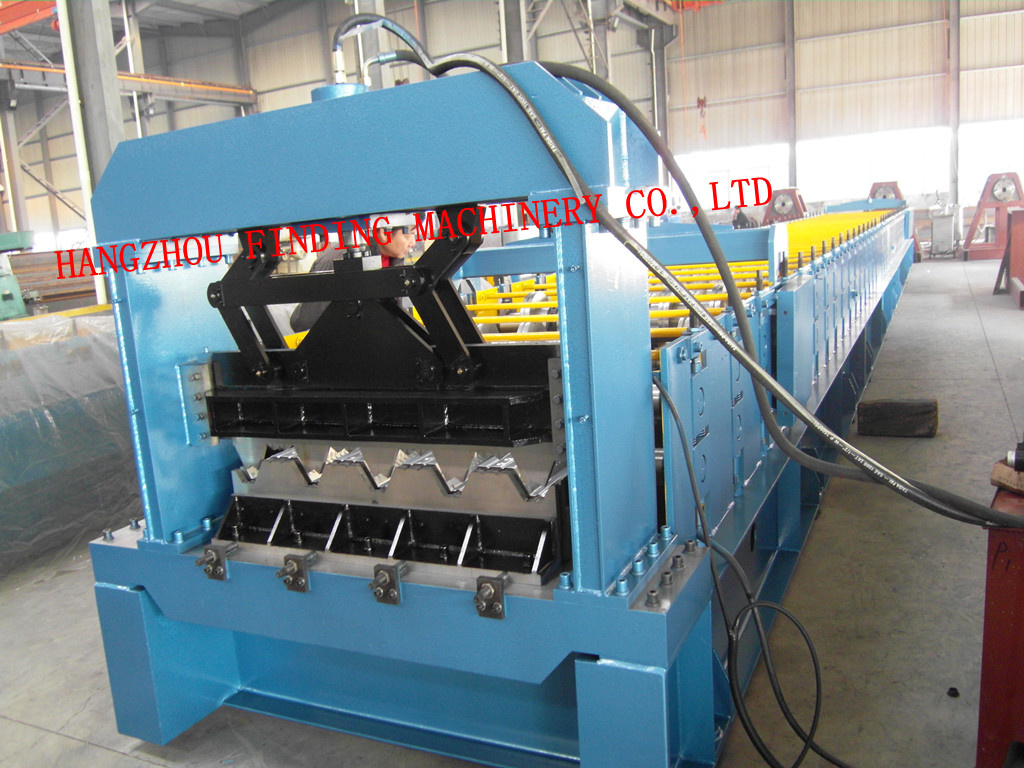

Our product: 858 mm galvanized Floor Roll Forming Machine CE
The metal deck produced by this machine has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduce the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Machine's components
Deck forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, hydraulic station, PLC control system and support table.
Main technical parameters
1. Suitable material: Color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.8-1.2mm
3. Forming speed: About 10-12m/min
4. Power Requirement: Main motor power: 18.5Kw(Depend on final design)
Hydraulic station power: 5.5Kw(depend on final design)
5. Uncoiler's loading capacity: Max. Capacity: 5000kgs(can be increased to be 10T)
6. Controlling system: Mitsubishi PLC&converter
7. Voltage: 380 V 3 phase 50Hz or as per the customer's requirement.
Hangzhou Finding Co., Ltd, is a Group company, we have our own factory to make steel roll forming machine, such as tile forming machine, corrugated steel sheet forming machine, c or z purline machine, floor decking sheet forming machine, sandwich panel machine line, cut to length machine line, shutter door forming machine, embossing machine, etc.
Factory to make Steel coils( GI, PPGI, GL, PPGL )
Factory to make corrugated steel sheet
Factory to make EPS and PU sandwich panel
Factory to make solar cell and solar panel
Success of our company comes from success and development of our customers. We bear this in mind in the whole process from design, product research and development to after-sales service.
