| Prod Model: |
none |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Casting Method: |
Sand Casting |
| Deformation Temperature: |
HOT CASTING |
| Molding Style: |
CASTING |
| Molding Technics: |
SAND CASTING |
Product Description

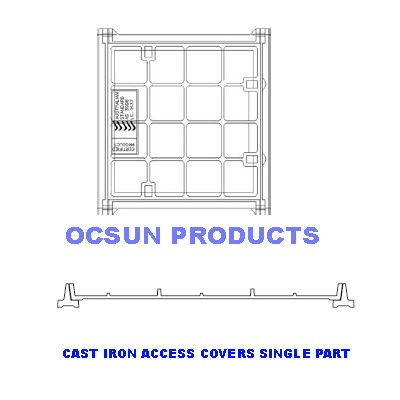

Ductile Iron Cast Access Covers with ISO, EN Standard.
Type: Concrete Infill
Class: B
Load capacity: 80KN
Model: Single part
| Part No. | Clear Opening | Overall cover size | Overall Frame Size | Cover Depth | Frame Depth | Mass KG |
| 300x300LD-C | 300X300 | 348X345 | 440X410 | 38 | 55 | 26 |
| 450X450LD-C | 450X450 | 498X495 | 590X560 | 38 | 55 | 31 |
| 600X450LD-C | 600X475 | 648X520 | 740X585 | 38 | 55 | 48 |
| 600X600LD-C | 600X600 | 648X645 | 740X710 | 38 | 55 | 58 |
| 600X750LD-C | 600X775 | 648X820 | 740X885 | 38 | 55 | 77 |
| 750X450LD-C | 750X450 | 798X495 | 890X560 | 38 | 55 | 61 |
| 750X750LD-C | 750X750 | 798X795 | 890X860 | 38 | 55 | 88 |
| 900X450LD-C | 900X450 | 948X495 | 1040X560 | 38 | 55 | 75 |
| 900X600LD-C | 900X600 | 948X645 | 1040X710 | 38 | 55 | 84 |
| 900X750LD-C | 915X762 | 963X807 | 1055X872 | 38 | 55 | 98 |
| 900X900LD-C-2P | 900X945 | 948X990 | 1040X1055 | 38 | 55 | 150 |
Qingdao Ocsun Industrial Co, Ltd was founded in 2000, he is a comprehensive company incorporated industry, science and trade.
Ocsun supplies a large variety of metal products for vehicle, machinery, construction industry. Ocsun deals with products according to customer's drawings and/or samples especially for casting, metal forming, machining, etc.
During about 15-year development, Ocsun has built a market net covering more than 10 countries and regions in the world and owns factories for steel fabricating, foundry for different castings, machining shop, further more, Ocsun has built up cooperation relationship with more than 400 suppliers in China.
"Quality & Service" is our motto. Ocsun has been certificated according to ISO 9001: 2000. He also produces with TUV standard. Ocsun introduced corresponding quality management systems and service management system to control products quality and improve the service.
It is our great pleasure to provide customers with qualified products, amiable service and develop together with our customers.
