| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
Product Description
Valve Closure, Valve Bonnet
Nominal Size: DN1"-48"(DN25-1200)
Pressure Rating: ANSI 150-2500(PN16-420)
Base Material:
-Ferrite Steel: ASTM A105, A105N; A350 LF2
-Austenitic Steel: A182 F304, F304L, F316, F316L, F317, F317L, F321
-Duplex, Super Steel: A182 F51/F53/F55/F60
-Nickel Alloy Steel: Monel, Inconel, Hastelloy,
-Precipitation Hardening Steel: 17-4pH/A564 Gr. 630
NDT Test: Radiographic test (RT), Ultrasonic Test (UT), Dye penetrant test (DT), Magnetic particle Test (MT)

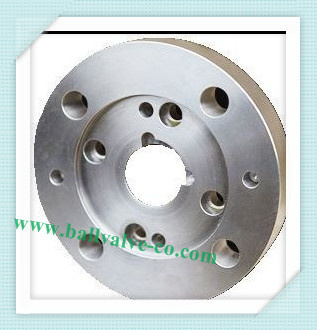

AEA VALVE, Special mechanical working of complete Valve Forgings: Valve ball, Seat Ring, Valve body, valve closure (Bonnet, Tailpiece, Endpiece), Adapter Flange(Support Flange, Support Plate, Gland Flange), Lower Trunnion(Bearing retainer)^
Specialist of ball valves, AEA VALVE was founded in the year of 1989, which is located in Wenzhou. More than 100 staffs and 60 sets of various facilities, such as Machining Center, CNC, Grinding Machine.
The experience and the know-how acquired during all these years, together with continuous investments in the design of ball valves, has made AEA VALVE a worldwide recognized company in the sector of industrial valve.
The perfect technical and modern facilities that allow us to offer the appropriate solutions for each application according to our customer needs, controlling the entire process of design and production of the AEA articles in accordance with the quality assurance procedures ISO 9001.
ENP (Electroless Nickel plating) on surface of forgings (ball, seat, body, closure, flange, etc. ), according to customers' specification and requirements, guaranteeing the right thickness and hardness required, The ENP assures a highly resistant components to corrosion and wear and a very low friction coefficient thanks to the self-lubricating feature of phosphorus. Finally, a polishing assures a thin and right roughness.
Especially, rich experience on special coating on surface, any options according customers' requirements: Stellite Coating, Nickel Coating, Tungsten Carbide Coating & Chromium Carbide Coating through HVOF process.
After grinding and lapping, provide Metal-to-Metal coated complete Kits: Ball and seats are lapped together, ensures "Zero leakage".
AEA VALVE always states that our initial goal was to become a leader in the ball valve and component market worldwide.
