| Prod Model: |
RTV-1040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
RTV1040 |
| Color: |
Transparent |
| Mixing Ratio: |
10:1 |
| Mixed Viscosity: |
65000 Cps |
| Working Time: |
60 Mins |
| Curing Time: |
8-12 Hours |
| Hardness: |
40 Shore a |
| Shrinkage: |
<0.1% |
| Elongation: |
>350% |
| Material: |
Silicone Rubber |
| Appearance: |
Liquid |
Product Description

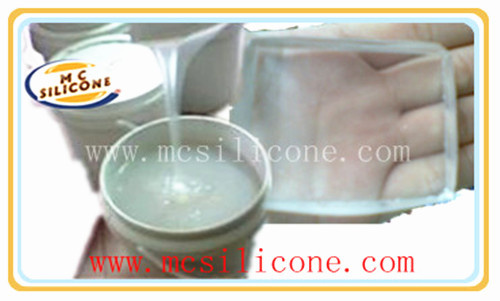

Description MC Silicone addition cure molding silicone rubber is a two component elastomer cross-linking at room temperature. The polymerization can be accelerated by heat. The silicone components are delivered as liquids, which once mixed and cured transform into a transparent, elastic and resistant material. Polymerization occurs without formation of heat.
Features High Transparency
High tear and tensile strength
Long shelf life with low shrinkage
Easy mixing

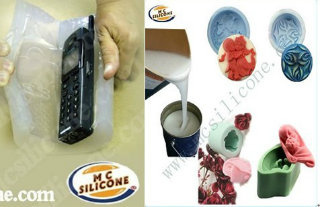

ApplicationsLabel manufacturing, Molding applications requiring low shrinkage e. G. Toys, jewelry, automotive, rapid prototyping etc.
Typical properties Item No.: RTV1040A/B
Color Transparent
Specific Gravity(g/cm3, approx. ) 1.1
Proportion(A: B) 100: 10
Mixing viscosity(at 23° Capprox. )65000
Max working time(at 23° C, minutes) 60
De-molding time(at 23° C, hrs, approx. ) 8-12
Hardness (after 24 h) 40 Shore A
Tensile Strength(Mpa, after 24 h) 5-6
Elongation (%) ≥ 350
Tear Strength (N/mm) 27
Using Instruction1-Take 100g of part A and add 2g of part B and mix the silicone rubber and curing agent evenly.
2-vacuum pumping
Without exception, this step takes less than 10 minutes. Otherwise, it will cause , and no more further steps will be available
3-Pouring mold or block mold of silicone rubber
The pouring way is an easy way to make molds, it's slowly and evenly pour into the mixed silicon rubber into the square frame. After the cross linking reaction.
Storage & Shelf lifeWhen the silicone rubber is stored at or below 30 centi degree in the original unopened containers, Silicone Base and Curing agent have a usable life of 10 months from the date of production. After 10 months stockpiles use the Stir to mix the Part A silicone for some minutes, then the silicone can be use again, no influence for other performance.
Packaging & Shipping| Part A base silicone | 5kg, 20kg/drum, 25kg/drum or 200kg/drum |
| Part B CA30 Curing Agent | 250g, 800g/bottle, 1kg/bottle |

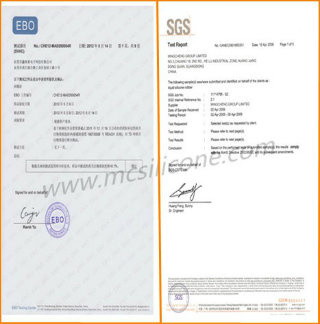

Certificates
Order infomation
- MOQ: 200KG
- Trade term: EXW FOB CFR CIF
- Delivery time:ONLY ONE DAY FOR SAMPLE CALL, 5-20 Working Days for Mass Order
We are manufacturer, and specialized in manufacturing different hardness, different viscosity silicone rubber series, we are competitive in price with good quality.
Should you have any question, please feel free to contact SophieMINGCHENG GROUP LIMITED | Item no. | RTV1040 |
| Color | Transparent |
| Viscosity | 65000 cps |
| Mix ratio | 100:10 |
| Pot life | 60 mins |
| Curing time | 12-24 hrs |
| Hardness | 40 shore A |
| Tensile strength | 5 Mpa |
| Elongation | 350% |
| Tear Strength | 27 N/mm |
| Shrinkage | 0.1% |
We are manufacturer, and specialized in manufacturing different hardness, different viscosity silicone rubber series. We can offer all kinds of silicone rubber for your request! Any interesting, please feel free to contact us. Welcome to join us, We will always at your service.
