| Prod Model: |
XBC-IS50-32-125 XBC-IS200-150-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
50mm ~ 200mm |
| Material: |
Cast Iron |
| Structure: |
Single-stage Pump |
| Power: |
Electric |
| Type: |
Blade Pump |
| Theory: |
Centrifugal Pump |
| Application: |
Water Pump |
Product Description

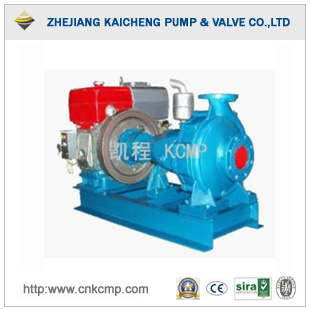

Agricultural irrigation diesel water pump
Capacity: 8-460m3/h
Head: 5 ~ 125m
Speed: 1450 ~ 2200 r/m
Material: Cast iron
General :
IS single stage single suction centrifugal clean water pump
1,Application : industry and city draining and the farmland irrigation.
2,Media : clean water or similar to clean water liquid with the
3,Max temperature is 80°C
4,Max inlet pressure is 0.6MPa.
5,Capacity range: 8-460 m3/h
6,Head range: 4--125m
Type description :
IS100-65J-200A
IS-single stage single suction centrifugal clean water pump
100-the inlet diameter(mm)
65-the outlet diameter(mm)
J-J refer to the reduction of the speed
200-the nominal name of the impeller(mm)
A-A,B,C refer to the first, the second, the third trim after the impeller respectively.
Structure type :
The XBC-IS single stage single suction centrifugal drainage water pump is horizontal installation,
the horizontal axial inlet and upward radial outlet.The structure of the pump is cantilever.
It can take out the rotors parts without disassembling the inlet and outlet pipes when repairing.
The pump is connected by the common flexible coupling or length flexible coupling with motor.
The shaft sealing of the pump is soft packing sealing.
The pump is the single-row radial ball bearing, dilute oil lubricate
The rotating direction :
Viewed from motor, the rotating direction of the pump is clockwise.
The main parts materials:
The materials of the flow parts are common gray casting iron.
| Pump Name | Agricultural irrigation diesel water pump |
| Capacity | 8-460m3/h |
| Head | 5 ~ 125m |
| Temperature | -80~450degree |
| Material | Cast iron, 304\304L\316\316L\ |
| Application | It is the water supply equipments for abnormal circumstances absence of electrical source (city electrical). Fire fighting equipment and mine enterprise emergency equipment. |
| Certificate | CE, ISO9001 |
| Contact Method | Contact Person: Viva Huang
Mob: 0086-15258697556/ 18968971616 |
