| Prod Model: |
ET-30A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Matched Engine: |
5-6PS |
| Spraying Pressure: |
20-35(Kg/Cm2) |
| Motor: |
3-5HP |
| Type: |
Pump |
| Drainage & Irrigation Mode: |
Sprinkler Irrigation Equipment |
| Application Field: |
Agriculture |
Product Description
Model | ET-30A |
| Matched engine | 5-6PS |
| Motor | 3-5HP |
| Plunger no. &dia. &stroke | 3X30X20(mm) |
| Spraying pressure | 20-35(kg/cm2) |
| Suction | 30-40 (L/min) |
| Speed | 800-1000(R. P. M) |
| Weight | 12(Kg) |
| Packing size | 425x305x380(mm) |

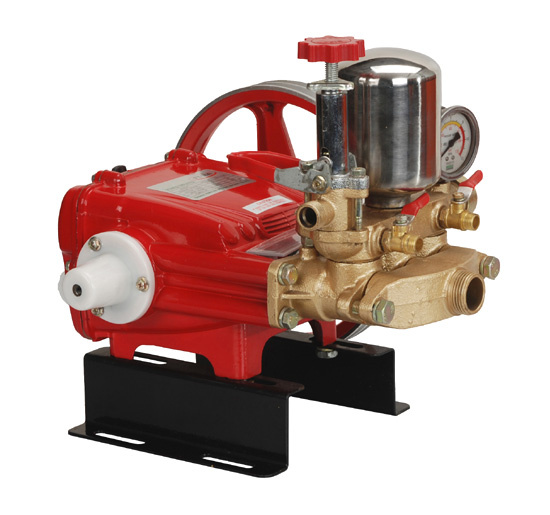

This power sprayer (plunger pump), generally powered by a gasoline engine or motor, is widely used
in agricultural and horticultural plant protection, suitable for large spraying operations in orchards,
coffee, ground crops etc. It is a heavy duty and high efficient sprayer unit. It can also be used for
washing vehicles etc.
Features:
1) Main parts made of cast iron, sturdy construction.
2) Stainless steel plunger.
3) Connecting rod made by die-casting aluminum.
4)All working parts are lubricated by oil bath to prevent overheat.
5) Can develop pressure up to 35kg/cm2 (500psi).
6) With safety valve to ensure safe working and the pressure can be regulated.
7) Manual pressure relief valve, easy to maintain.
8) Each unit supplied with pulley, suction hose, overflow hose and strainer.
9) Each unit supplied with a parts kit (gaskets and rings, tools, etc.)
