| Prod Model: |
AH, M, HH, SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mqq: |
1 Set |
| OEM: |
Accept |
| Certificate: |
ISO 9001, CE |
| After Sales: |
Yes |
| Color: |
Blue, Yellow, Green or as Customer's Request |
| Material: |
Wear-Resistant Metal or Rubber |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Single-Stage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description

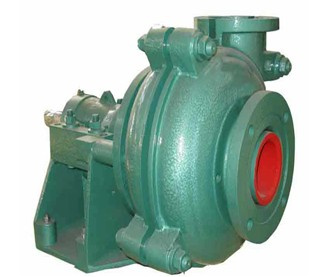

AH, M, HH, ZGB, G mining Horizontal Slurry pumps
1) Slurry Pump Feature
1. NP-AH series centrifugal slurry pumps and spare parts can fully interchange with world famous brand.
2. These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries.
3. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
2) Typical Applications
Minerals Flotation Processing
Electric Factory Coal Preparation
Coal Washing
Chemical Medium Processing
Effluent Handling
Sand And Gravel Handling
3) Naipu Main pump
We could provide the products as follows:
ZJ(R) ZJM, ZJ(H) Slurry Pump
ZJD lower Abrasive Slurry Pump
ZJG slurry pump
ZG Series Slurry Pump
ZJW Feeding Pump
Gravel sand Pump
WS series Dredging Pump
ZJL(R)Series vertical slurry Pump
ZJQ submersibel slurry Pump
Froth slurry pump
Slurry Pump spare parts.
Abrasive-resistant OEM Part
4) Materials of Construction
Liners:
Standard: Chrome Alloy, Natural Rubber,
Options: Ferralium, Hastelloy C, 316 SS, W151, Polyurethane, Neoprene, Butyl, Viton, Nitrile, EPDM, Hypalon
Impellers:
Standard: Chrome Alloy, Natural Rubber,
Options: Ferralium, Hastelloy C, 316 SS, W151, Polyurethane, Neoprene, Butyl, Nitrile, Hypalon
Casing:
Standard: SG Iron
Options: SG Iron Various grades
Base:
Standard: SG Iron
Options: MS Fabricated, Cast Iron
Expeller:
Standard: Chrome Alloy Or SG Iron
Options: NI Resist, Ferralium, Hastelloy C, Polyurethane, 316 SS, W151
Shaft Sleeve
Standard: SG Iron
Options: EN56C, Ferralium, Hastelloy C, Titanium, 316 SS, 304 SS
Seals:
Standard: Rubber and Nitrile
Options: Ceramic, Stellite, Chrome Oxide, Nordel, Neoprene, Viton
For More Information, Welcome to Contact with us Directly.
|
AH Series Slurry Pump Performance Chart |
Pump
Model |
Allowable
Max. Power |
Clear Water Performance |
|
|
Capacity Q |
Head
H(m) |
Speed
n(r/min) |
Max.Eff.
η% |
NPSH
(m) |
Impeller
Dia. |
|
m3/h |
l/s |
|
|
1.5/1B-AH |
15 |
12.6-28.8 |
3.5-8 |
6-68 |
1200-3800 |
40 |
2-4 |
152 |
|
2/1.5B-AH |
15 |
32.4-72 |
9-20 |
6-58 |
1200-3200 |
45 |
3.5-8 |
184 |
|
3/2C-AH |
30 |
39.6-86.4 |
11-24 |
12-64 |
1300-2700 |
55 |
4-6 |
214 |
|
4/3C-AH |
30 |
86.4-198 |
24-55 |
9-52 |
1000-2200 |
71 |
4-6 |
245 |
|
4/3D-AH |
60 |
|
6/4D-AH |
60 |
162-360 |
45-100 |
12-56 |
800-1550 |
65 |
5-8 |
365 |
|
6/4E-AH |
120 |
|
8/6E-AH |
120 |
360-828 |
100-230 |
10-61 |
500-1140 |
72 |
2-9 |
510 |
|
8/6R-AH |
300 |
|
10/8ST-AH |
560 |
612-1368 |
170-380 |
11-61 |
400-850 |
71 |
4-10 |
686 |
|
12/10ST-AH |
560 |
936-1980 |
260-550 |
7-68 |
300-800 |
82 |
6 |
762 |
|
14/12ST-AH |
560 |
1260-2772 |
350-770 |
13-63 |
300-600 |
77 |
3-10 |
965 |
|
16/14UT-AH |
1200 |
1368-3060 |
380-850 |
11-63 |
250-550 |
79 |
4-10 |
1067 |
Shijiazhuang Naipu Pump Co., Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities...
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R). NP-M. NP-HH. NP-SP(R). NP-G series slurry pump, NP-ZG. NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers' technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of China and far to southeast Asia, Noth America, South America, Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08, R12, R26, R33, R38, R55, S03, S12, S31, S21, S51, S52 U01 and etc), wear resistant metal material( A05, A07, A33, A49, A61 and etc), Corrosion Resistant stainless steel material (201, 304, 316, 316lL and etc ), fully meet customers' request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
