Air Dryer Body Die Casting Die

Name: Air Dryer Body Die Casting Die
Brand: china-castingforging.com
SKU: 702314442
Availability: InStock
Rating: 4.6 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Ningbo Beilun Xinlin Electromechanical Mould Co., Ltd

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Application:	Communication Industry
Material:	Steel

Product Description

Product Introduction:

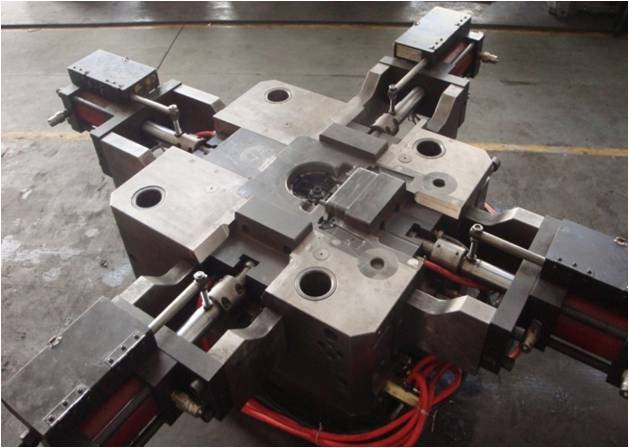

the Automotive Air dryer Body die casting die or mold is a closed vessel into which molten Aluminum is injected under high pressure and temperature, then rapidly cooled until the solidified Air Dryer Body part is sufficiently rigid to permit ejection from the mold.

Properties:
Products: Automotive Air Dryer Body die casting die
Products for Customer: WABCO
Number of Cavities in the tool: 1
Machine Size die will run in=500T
Cavity Steel: DIEVAR
Retainer die steel: P20
Cooling: Water/Oil Cooling
Demoulding: Hydraulic Slides or Mechanical Columns Service life: 100,000

Aluminum Die Casting Mold Product Data

Item	Description
Die casting mold Parts	Die Casting Mold Products Model		XinLinMold
	Die Casting Mold Products Molding technics		Die casting mold
	Part material:		ADC12,A380, ,A390 and many other aluminium alloy are all acceptable., Magnesium alloy
	Die Casting Mold Products Dimension		As drawings or samples
Die Casting Molds	Die Casting Mold Cavity		Single or Multiple
	Die Casting Mold Material		H13, DIEVAR, 8407, SKD61, 45#steel, etc.
	Die Casting Molds Heat treatment		Hardened, Nitriding
	Die Casting Molds Hardness		HRC50~55
	Die Casting Molds feature		Advanced design, Novel structure, High precision, Quality materials, Long lifetime, Short delivery time
Die Casting Mold Making Equipment and Die Casting Moulds Checking Machine	CNC precision Machining, Die Casting Moulds engraving machine, CNC forming machine, CNC turning, EDM, Linear cutting machine, Die spotting machine(100~300T), Die casting machine(180T~800T), Lathe, Grinding machine; CMM, Material detector, Hardness test device, spectrograph,etc.
Die Casting Mold Design Software	CAD, UG, Pro/E, JSCAST of Japan,, etc.
Die Casting Molds Quality certification	ISO9001:2008
Die Casting Moulds Advantage	Die Casting Molds Quality		Insist on making every detail carefully always
	Die Casting Molds Price		reasonable and competitive price
	Die Casting Molds Delivery Time		Never later than the delivery time in contract
	Die Casting Molds Service		1. 6X8 hrs Helpline 2. Commissioning 3.Training 4.Technical On-Site Support 5.Repairs 6.Spare Parts Distribution 7.Tele-service 8.Condition of your machine 9. Maintenance
	Die Casting Molds R&D		Plentiful experience and skillful technique on die casting
	Die Casting Molds Team		United and positive team

Aluminum Die Casting Mold Making Process. How to make die cast molds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2.Negotiation	the quality, price, material, delivery time, payment item, ect.
3.Place an order	according your own design or you chooses our design.
4. Mould	1. Mold Design 2. Mold Making a. CNC Machining b. Cavity Heat Treatment ( Quenching) c. Grinding d. CNC Fine Machining e. EDM (Electron Discharge Machining) f. WEDM(wire electrical - discharge machining) g. Cavity Polishing h. Assembly Mold, Mold Spotting 3. Trial Mold 4. Mold Delivery
5. Sample shoot		If the first sample come out is not satisfied customer, we modify the mould and until meet customers satisfactory.
↓
6.Products in store		If your quantity is beyond our storage, we will provide lead time to you.
↓
7. Delivery		Delivery goods by sea or by air, according customers requirement.

Ningbo Beilun Xinlin Electromechanical Mould Co., Ltd. Is located in Chunxiao, Beilun, Ningbo where has a world-famous port and is well-known as 'Land of Die-casting Moulds'. We have two plants, one is in Chunxiao, the other is in Daqi High grade Mould park.

The company was founded in 2003 and in the same year it passed the strict certification of ISO9001 quality management system. The company has more than 20 senior technical personnel and specializes in design and manufacture of various precision aluminium, magnesium and vacuum die-casting moulds and also has a production capacity of 200 sets of medium and large die-casting moulds annually.

Now the company has successfully provided many sets of die-casting moulds as support parts for a number of foreign-funded enterprises in China, including GF and SEW in Suzhou, BSH and ZF in Nanjing, Sensus in Yangzhou, WABCO in Jinan and BorgWarner and ABB in Beijing. Also the company's die-casting moulds have been exported to many foreign companies such as Ariston in France, Polaris in USA and TVS in India.

Hardworking makes us be excellent and strictness makes our clients be satisfying. We will keep on improving our work in order to exceed our customers' expectations.
