Air Expanding Shaft
| Price: |
US $ 150-200/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
Anodized, Chrome |
| Diameter: |
From25-320mm |
| Length: |
Max Can Reach 4m |
| Alex Material: |
Steel |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
| Material: |
Steel, Aluminum |
Product Description
Ruian Chuangbo Machinery Co., Ltd.

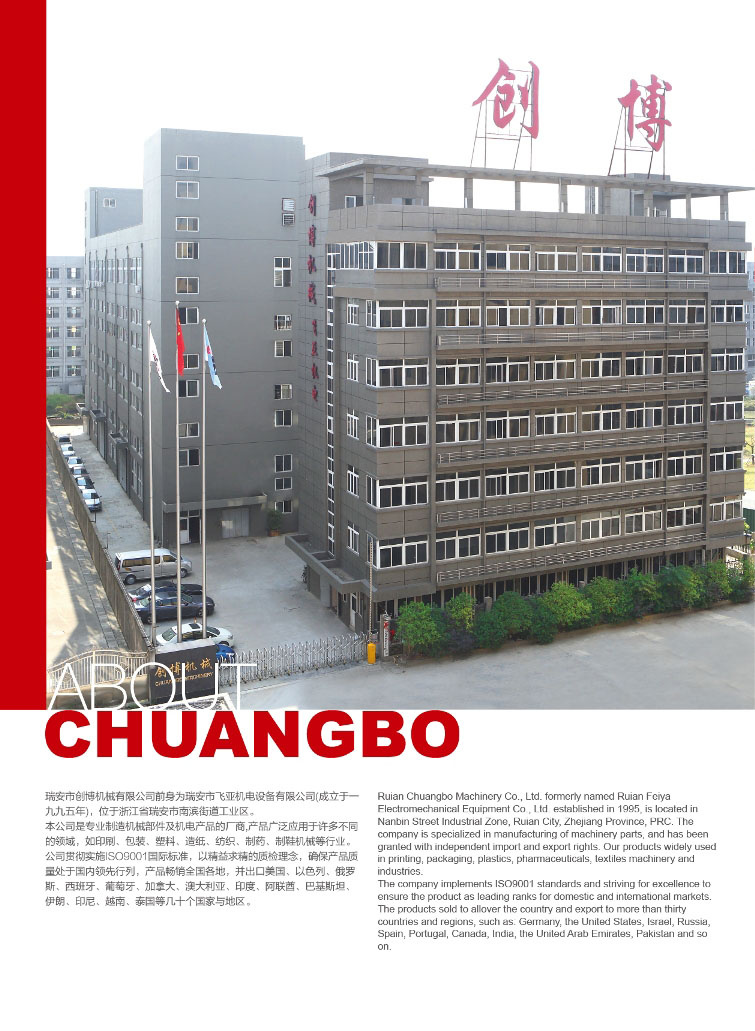

Formerly named Ruian Feiya Electromechanical Equipment Co., Ltd.Established in 1995, is located in Nanbin Street Industrial Zone, Ruian City, Zhejiang Province, PRC.The company is specialized in manufacturing of machinery parts, and has been granted with independent import and export rights.Our main products include aluminum guide roller series, curved roller series, air expand shaft series, centrifugal fan series, axial fan series, torque electric motor and controller series, frequency motor series, magnetic brake / clutch and tension controller serious , pneumatic diaphragm pump serious, electric ink pump serious, low speed permanent magnet synchronous motor serious and so on.Widely used in printing, packaging, plastics, pharmaceuticals, textiles machinery and industries.
The products sold to allover the country and export to more than thirty countries and regions, such as:Germany, the United States, Israel, Russia, Spain, Portugal, Canada, India, the United Arab Emirates, Pakistan and so on.Air shaft / Differential shaft

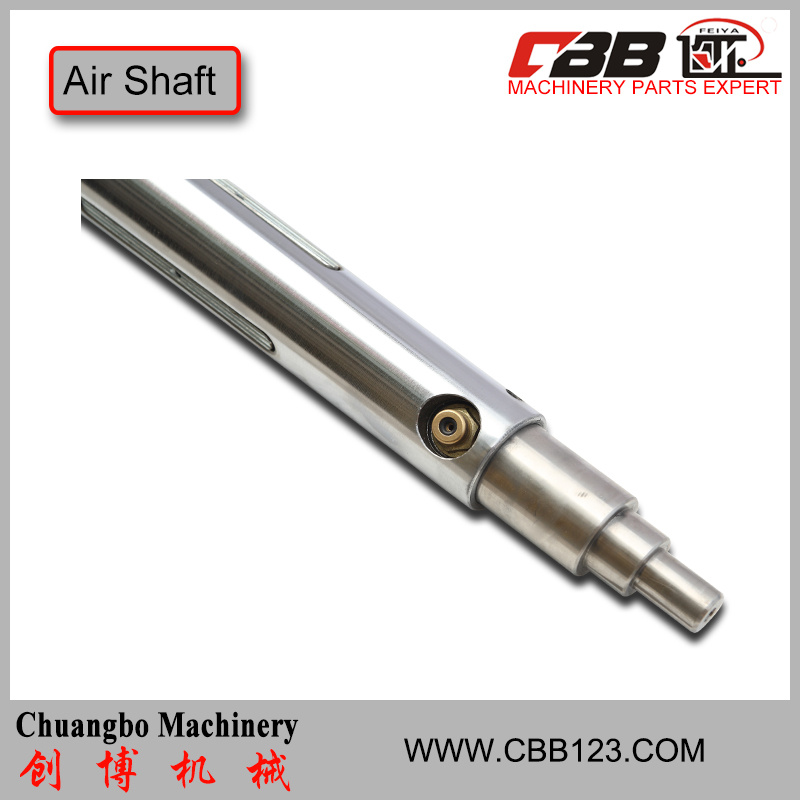

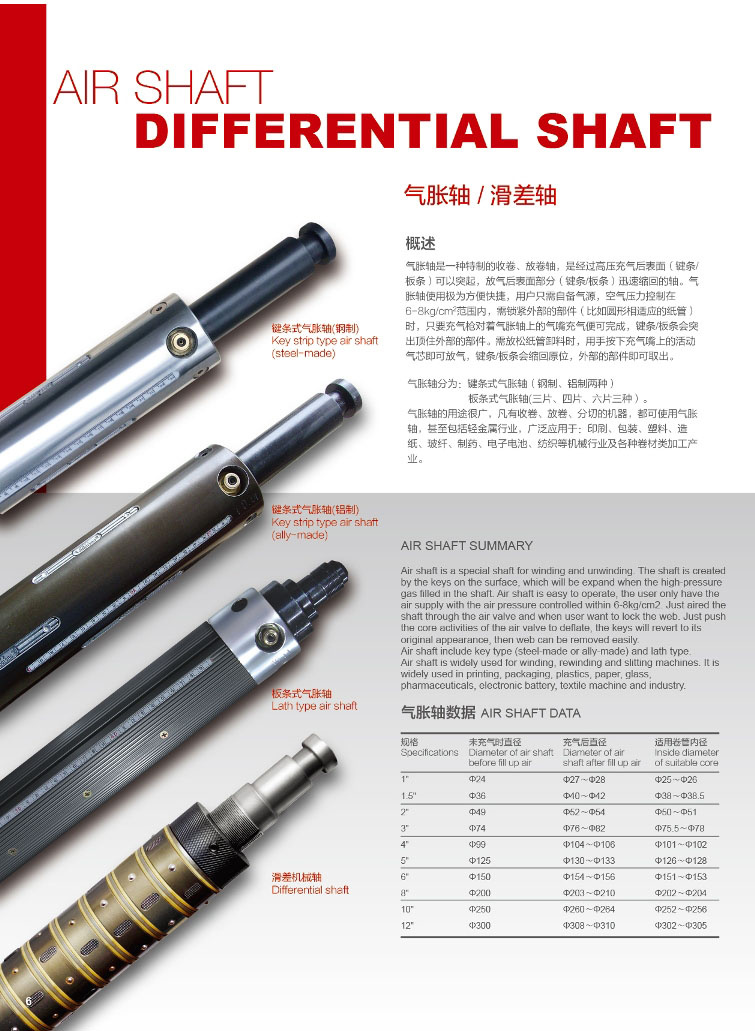

Air shaft is a special shaft for winding and unwinding.The shaft is created by the keys on the surface, which will be expand when the high-pressure gas filled in the shaft.Air shaft is easy to operate, the user only have the air supply with the air pressure controlled within 6-8kg/cm2.Just aired the shaft through the air valve and when user want to lock the web.Just push the core activities of the air valve to deflate, the keys will revert to its original appearance, then web can be removed easily.
Air shaft include key type (steel-made or ally-made) and lath type.
Air shaft is widely used for winding, rewinding and slitting machines.It is widely used in printing, packaging, plastics, paper, glass, pharmaceuticals, electronic battery, textile machine and industry.| Size | Diameter before aired(mm) | Diameter after aired(mm) | Suitable core(mm) |
| 1" | Ø24 | Ø27-Ø28 | Ø25-Ø26 |
| 2" | Ø49 | Ø52-Ø54 | Ø50-Ø51 |
| 3" | Ø74 | Ø78-Ø82 | Ø75-Ø77 |
| 4" | Ø99 | Ø104-Ø106 | Ø100-Ø103 |
| 5" | Ø125 | Ø130-Ø133 | Ø126-Ø129 |
| 6" | Ø150 | Ø154-Ø156 | Ø151-Ø153 |
| 8" | Ø200 | Ø203-Ø210 | Ø202-Ø204 |
| 10" | Ø250 | Ø260-Ø264 | Ø252-Ø256 |
| 12" | Ø300 | Ø308-Ø310 | Ø302-Ø305 |
Ruian Chuangbo Machinery Co., Ltd. It was founded in 1995, and is located in the coastal city of southen Zhengjiang_Ruian.
Our company is specializing in producing printing machinery accessories:
Printing Rollers: Aluminum guide roller, chrome steel roller, aluminum reculate pattern roller, rubber roller;
Flatulence Axes: Slip-style inflatable axis, slab-style inflatable inflatable shaft, inflatable-strip key shaft;
Fans: Centrifugal fan, axial-flow fan;
Torque Motor: Torque motor controller, manual tension controller, electrical ink pump;
Other Printing Accessories: Magnetic powder clutch, magnetic powder brake, pneumatic diaphragm pump, pneumatic diaphragm pump, permanent magnent motor etc.
Our company has powerful technical strength, advanced technology, introducing foreign advanced production equipment and detection means. Our products have passed the China National Mandatory Certification(referred to CCC certification), which is issued by China Quality Certification Center.
