| Prod Model: |
C41 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

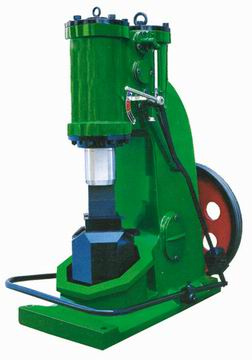

The air hammer have many advantages. Such as many reliable performance,operational cleverness etc.It can be used to carry out such processes as drawing upsetting punching,shearing & cutting,forge welding and bending.
The machines are widely used.Users of large,middle or small-sized.User of large,middle or small-sized manufactories may select.User of large,middle or small-sized manufactories may select such model of air hammers by actual requirement to be satisfied with products.
Model
| C41-25
| C41-40
| C41-65
| C41-75
| C41-75B
| C41-150
| C41-250
| C41-400
| C41-560
| C41-750
| C41-1000
|
Weight (low part)
| 25 kgs
| 40 kgs
| 65 kgs
| 75 kgs
| 75 kgs
| 150 kgs
| 250 kgs
| 400 kgs
| 560 kgs
| 750 kgs
| 1000 kgs
|
Max. striking capacity
| 0.26 Kj
| 0.53 Kj
| 0.9 Kj
| 1 Kj
| 1 Kj
| 2.5 Kj
| 5.6 Kj
| 9.5 Kj
| 13.6 Kj
| 19 Kj
| 27 Kj
|
Stiking frequency
| 250 n/m
| 245 n/m
| 200 n/m
| 210 n/m
| 210 n/m
| 180 n/m
| 140 n/m
| 120 n/m
| 115 n/m
| 105 n/m
| 95 n/m
|
Max. section of forged (circular) steel (mm)
| 40x40
mm
| 60x 60 mm
| 65x 65 mm
| 75x 75 mm
| 75x 75 mm
| 130x 130 mm
| 160x 160 mm
| 200x 200 mm
| 270x 270 mm
| 270x 270 mm
| 290x 290 mm
|
Max. section of forged (roundness) steel
| 45 mm
| 70 mm
| 85 mm
| 85 mm
| 90 mm
| 145 mm
| 175 mm
| 240 mm
| 280 mm
| 300 mm
| 320 mm
|
Electric power
| Model
| Y 112M -6
| Y 132M 1-6
| YBRMZ-6
| Y 160M -6
| Y 160M -6
| Y 180M -4
| Y 180M -4
| Y 250M -6
| Y28S-6
| Y 280M -6
| Y315S-6
|
Power
| 2.2 Kw
| 4 Kw
| 5.5 Kw
| 7.5 Kw
| 7.5 Kw
| 18.5 Kw
| 22 Kw
| 37 Kw
| 45 Kw
| 55 Kw
| 75 Kw
|
Rotational speed
| 1000 rpm
| 960 rpm
| 960 rpm
| 970 rpm
| 970 rpm
| 1460 rpm
| 1470 rpm
| 980 rpm
| 980 rpm
| 980 rpm
| 980 rpm
|
G.W. (including hammering block, electric power)
| 750 kgs
| 1000 kgs
| 2900 kgs
| 2330 kgs
| 2800 kgs
| 5300 kgs
| 8000 kgs
| 16150 kgs
| 18800 kgs
| 28000 kgs
| 33950 kgs
|
