| Prod Model: |
205-70-19570RC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Casting Precision |
Product Description
Specifications
1. Impact value: 17-21J,
2. Hardness: 47-52HRC
3. Excavator komatsu tooth point 205-70-19570(4kg): USD1.2/KG
4. ISO 9001: 2000
Sell Excavator Spare Part Komatsu PC200 Bucket Teeth, Adapter, Side Cutter for Sale
More usable wear metal for longer point life
Slimmer profile for better penetration
Greater nose strength and fatigue life
Superior T3 alloys provide longer wear life and greater impact resistanc
Certificate: ISO 9001: 2000 QMS ISO 14000 EMS

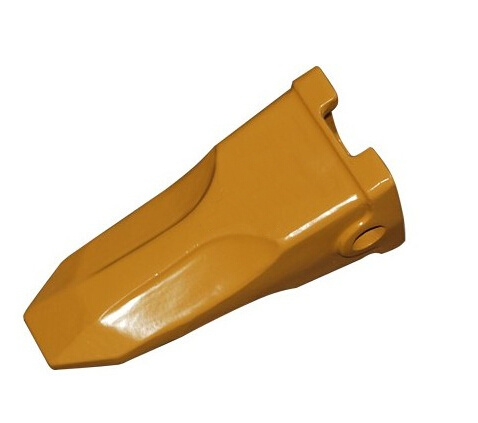

Komatsu Excavator Spare Part Komatsu PC200 205-70-19570 Bucket Teeth, Adapter, Side Cutter used for general excavating condition.
We supply complete series of komatsu PC200, PC300, PC400, PC120, PC60, PC1250, PC2000, bucket teeth and adapter, side cutters and so on.
Komatsu PC200 Teeth and Adapter, side cutter, 205-70-19570 have high wear and impact resistance
Komatsu PC200 Series Teeth and Adapter, side cutter
TYPE: STANDARD TOOTH
P/N: 205-70-19570A, WEIGHT: 4.2KG
TYPE: ROCK CHISEL TOOTH
P/N: 205-70-19570RC WEIGHT: 5.4KG
P/N: 205-70-19570RC-2 WEIGHT: 6.2KG
P/N: PC200RC3 WEIGHT: 5.5KG
P/N: PC200RC4 (Big Holes) WEIGHT: 5KG
TYPE: SK TOOTH:
P/N: 205-70-19570SK WEIGHT: 5.5 KG
TYPE: ADAPTER:
P/N: 939-7120 (35mm) WEIGHT: 6.5KG
P/N: 939-7120 (35mm) WEIGHT: 6.8
P/N: 939-7120 (40mm) WEIGHT: 7
P/N: 205-939-7120 (30, 35, 40 mm) WEIGHT: 8
TYPE: SIDE CUTTER
P/N: 205-70-74190 WEIGHT: 14.5KG
P/N: 205-70-74180 WEIGHT: 14.5KG
Mechenical Property Komatsu PC200 Series:
Material: Alloy steel, (add Mo+Ni to enhance)
Hardness: 47-52HRC
Impact Value: 16-22J
Usage: Komatsu standard long tooth is used for general excavation, typically in sand or clay soil. The standard long tooth is the most popular of all designs and represents approximately 65% of the market consumption. Use mostly on loaders and excavators.
Komatsu PC200 excavator spare part 205-70-19570
Komatsu penetration tooth is designed for more severe excavation projects, such as rock and shale. The profiles narrow towards the tip, which allows the operator to pierce the vein in a rock formation and "rip" the material from the earth. Many users of this tooth have switched over.
Machinery Komatsu PC200 high quality bucket Teeth and bucket Adapter 205-70-19570
Komatsu rock chisel design was pioneered by Hensley as a multi-purpose tooth. Used in both general excavating and moderate rock applications, this tooth puts itself in the class of " self sharpen".
Besides, we also can produce other parts if you can offer us the drawing or samples.
If you need excavator spare parts Komatsu PC200 bucket Teeth and Adapter, pls contact me
| Part Number | Type | Unit Weight (KG) | Model |
| PC60 20X-70-14160 | Standard | 2 | PC60 |
| 20X-70-23161 | Standard | 2.3 | PC100 |
| 205-70-19570 | Standard | 4.4 | PC200 |
| 207-70-14151 | Standard | 6.9 | PC300 |
| 208-70-14152 | Standard | 9.7 | PC400 |
| PC500 | Standard | 20 | PC500 |
| 209-70-54720 | Standard |
| PC650 |
| 209-70-54210 | Standard | 33.5 | PC650 |
| 21N-72-14290 | Standard | 44 | PC1000 |
| 21T-72-74310 | Standard |
| PC1600 |
| PC60RC | Rock Chisel | 2 | PC60 |
| PC100RC | Rock Chisel | 2.5 | PC100 |
| 205-70-19570RC | Rock Chisel | 6.2 | PC200 |
| 207-70-14151RC | Rock Chisel | 8.7 | PC300 |
| LK400 | Rock Chisel | 14.4 | PC400 |
| 208-70-14152RC | Rock Chisel |
| PC400 |
| 208-70-14270RC | Rock Chisel | 13.3 | PC400 |
| 209-70-54720RC | Rock Chisel | 29.8 | PC650 |
| 209-70-54210RC | Rock Chisel | 33 | PC650 |
| 21N-72-14290RC | Rock Chisel | 54.5 | PC1000 |
| 21T-72-74310 RC | Rock Chisel |
| PC1600 |
| 205-70-19570 SYL | SYL | 3.8 | PC200 |
| 207-70-14151 SYL | SYL | 6 | PC300 |
| 208-70-14152 SYL | SYL | 9.7 | PC400 |
| 209-70-54720 SYL | SYL | 23.5 | PC650 |
| 21N-72-14290 SYL | SYL |
| PC1000 |
| 21T-72-74310 SYL | SYL |
| PC1600 |
| 205-70-19570 VIP | VIP |
| PC200 |
| 207-70-14151 VIP | VIP |
| PC300 |
| 207-70-14152 VIP | VIP |
| PC400 |
| 209-70-54720 VIP | VIP |
| PC650 |
| 21N-72-14290 VIP | VIP | 35.5 | PC1000 |
| 20Y-70-K4060 | Long tooth |
| PC200 |
| 20Y-70-K4070 | Long tooth |
| PC300 |
| 208-70-K1340 | Long tooth |
| PC400 |
| 209-70-54730 | Long tooth |
| PC650 |
| 20Y-70-K4150 | Corner tooth |
| PC200 |
| 20Y-70-K4160 | Corner tooth |
| PC300 |
| 208-70-K1490 | Corner tooth |
| PC400 |
| PC60 | Two Strap | 2.4 | PC60 |
| 20X-70-14151 | Two Strap | 2.6 | PC100 |
| 202-70-12140 | Two Strap | 3.1 | PC120 |
| 205-70-68141 | Two Strap | 7.3 | PC200 |
| 205-939-7120 | Two Strap | 7.3 | PC200 |
| 207-70-14142 | Two Strap | 14.6 | PC300 |
| 207-939-5120 | Two Strap | 14.4 | PC300 |
| 208-70-14143 | Two Strap | 23.5 | PC400 |
| 208-939-3120 | Two Strap | 21 | PC400 |
| 209-70-74140 | Two Strap | 49.3 | PC650 |
| 21N-70-14140 | Two Strap | 75.5 | PC1000 |
| 21T-70-74160 | Two Strap |
| PC1600 |
|
|
|
|
TIGER(China) ENGINEERING MACHINERY Co., Ltd is specialized in manufacture investment casting of ***** parts and other construction equipments spare parts. Factory started from 2001, located in Ningbo city which is the second biggest container port in China, it covers about 12000sqms with more than 250 staffs in which about 32 technological & professional Engineers.
We are a main foundry of casting teeth and adapters which can be used on JCB, Caterpillar, Komatsu, Hitachi, Daewoo, Esco, Case, Kobelco, Tata, Volvo, John Deerer etc.
For improving quality, we use the first-clase fancilities such as Spectrometer, Universal Tensile Tester, Impact Test and Hardness Tester and imported heat-treatment machine and painting machine from oversea, it make us can control all the processes by ourselves and offer products with the best quality and the prefect looks. We can manufacture ***** parts with yearlycapacity 5000tons and other investment casting 2500tons. And grow fast year by year
We have win ISO 9001: 2000 QMS and ISO 14000 EMS. And we got the right of IMP & EXP. At the earlier of 2009. So we can handle Import and Export by ourselves.
We have built briet sale network in our domestic and oversea market such as European, South America Middle East and Asia etc. Make our teeth widely used in different earth conditions.
We have lots of distributors in domestic. For enlarging our sale market and establishing trademark in international, so oversea country sole agent is welcome!
