Prod Model: |
38CrMoAI |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Ultrasonic Test: |
Sep1921-84 Class C/C, D/D |
Place Of Origin: |
Wuxi, China |
Length: |
Customized |
Range Of Size: |
by Request |
Tolerance: |
-0/+2mm for Size and -0/+20mm for Length |
Weight Per Shaft: |
Customized |
Marking Color: |
by Request |
Delivery Condition: |
According to Customers's Order |
Delivery Period: |
Within 45 Days |
Type: |
Alloy Steel Bar |
Steel Grade: |
400 Series |
Technique: |
Forged |
Application: |
Die Steel Bar, Tool Steel Bar, Structural Steel Bar |
Surface Treatment: |
Black Surface |
Alloy: |
Non-alloy |
Special Use: |
Cold Heading Steel |
Material: |
Alloy Steel Shaft |
Product Description

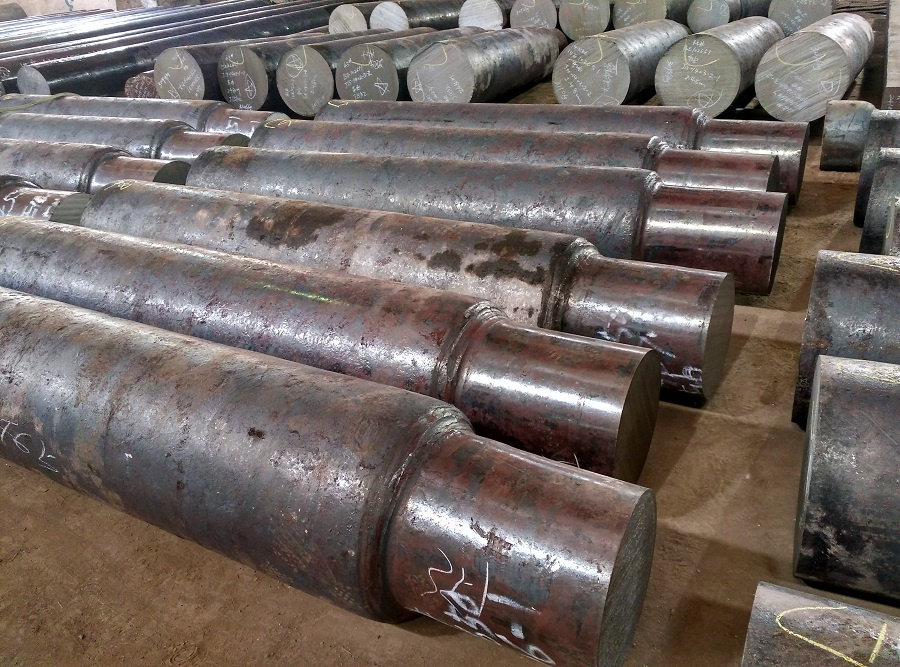

Steel shaft-J38CrMoAI
Other steel grade:SAE4340,SAE4140,34CrNiMo6,17CrNiMo6,
18CrNiMo7-6,SAE8620,41Cr4,S355J2G3,C45,16MnCr5,39CrNiMo3,
9840,and others according the customer's requirment.
Straightness:3mm/M Max.
Size:200 mm-800 mm for fix length.
Diameter tolerance:-0/+5mm,
Length tolerance:-0/+30mm,
Delivery condition:Forged+Normalized.
100%UT:Sep1921 Class C/c,D/d,E/e.
All other specification will agreement between the customer and the supplier.
Material: | 38CrMoAI |
Diameter: | 80mm-1200mm (optional) |
Length: | 1000mm-12000mm Straightness: 3mm/M max(optional) |
Process: | EAF + LF + VD + Forged + Heat Treatment (optional) |
Delivery condition: | Hot forged +Rough machined (black surface after Q/T)+ Turned (optional) |
Delivery Time: | 30-45 days |
MOQ: | 20 tons |
Heat treatment: | Normalized / Annealed / Quenched / tempered |
Technical Data: | According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing |
Properties: | Yield=310 Mpa Minimum; Tensile=600 Mpa minimum; %EI=13min,Surface Hardness=BHN160-220(As your request) |
Test: | Ultrasonic test according to SEP 1921-84 Class C/c and D/d (optional) |
Marking: | Grade, heat NO. length will be stamped one each bar with required color |
Payment: | 30% advance by T\T; Balance pay before the shipment against shipping documents or irrevocable LC at sight |
similar steel grade | 40CrNiMoA, AISI4340,39CrNiMO,40NiCRMo22,SNCM439 |
Application: | Statically and dynamically stressed components for vehicles, engines and machines. For parts of larger cross-sections, crankshafts, gears. |
