AlNiCo Magnet for Florance (voodoo) Pickups

Name: AlNiCo Magnet for Florance (voodoo) Pickups
Brand: china-castingforging.com
SKU: 775337915
Availability: InStock
Rating: 4.5 (121 reviews)

Price:	US $ 0.27-0.29/Piece
Trade Terms:	FOB,CIF,DAT
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Hangzhou Xiaoshan Dunben Magnet Co., Ltd.

Showroom Product Company Profile

Prod Model:	LNG40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	5X5X1.5mm
Tolerance:	+/-0.05mm
Magnetism Dircetion:	Thickness
MOQ:	500PCS
Shape:	Block
Application:	Motor Magnet
Grade:	FLNG28
Coating:	Painting

Product Description

Alnico guitar pickup magnet

Alnico pickup magnet is hard and brittle. Machining or drilling cannot therefore be accomplished by ordinary methods. Holes are usually cored in at the foundry, and magnets are cast close to final size and then finish machined to closer tolerances.

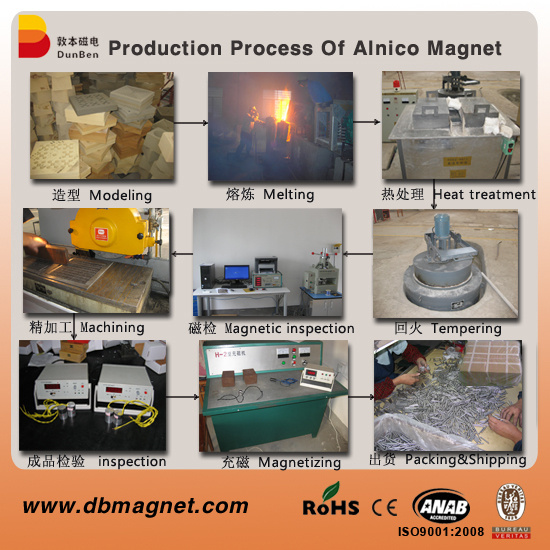

Manufacturing Methods

Alnico magnets are manufactured through either casting or sintering processes.

Cast magnets are manufactured by pouring a molten metal alloy into a mold and then further processing it through various heat-treat cycles.

Sintered magnets are manufactured by compacting fine Alnico powder in a press, and then sintering the compacted powder into a solid magnet.

Surface Treatments

The corrosion resistance of Alnico is considered excellent , and no surface treatments are required. However, Alnico magnets are easily plated for cosmetic reasons if required.

AlNiCo Magnet Characteristics

Grade	Br	Hc	(BH)max	Curie temp	Work temp
Grade	mT GS	ka/m OE	kj/m3 MGOe
LN10	600/6000	40/500	10.00/1.20	810	450
LNG12	700/7000	44/550	12.00/1.50	810	450
LNG13	680/6800	48/600	13.00/1.63	810	450
LNG18	900/9000	48/600	1800/2.25	850	450
LNG37	1200/12000	48/600	37.00/4.63	860	525
LNG40	1250/12500	48/600	40.00/5.00	860	525
LNG44	1250/12500	52/650	44.00/5.50	860	525
LNG52	1300/13000	56/700	52.00/6.5	860	525
LNG60	1330/13300	60/750	60.00/7.5	860	525
LNGT18	580/5800	90/1130	18.00/2.25	860	550
LNGT30	1100/11000	56/700	30.00/3.75	860	550
LNGT32	800/8000	100/1250	32.00/4.00	860	550
LNGT38	800/8000	110/1380	38.00/4.75	860	550
LNGT44	850/8500	120/1500	40.00/5.5	860	550
LNGT48	900/9000	120/1500	48.00/6.00	860	550

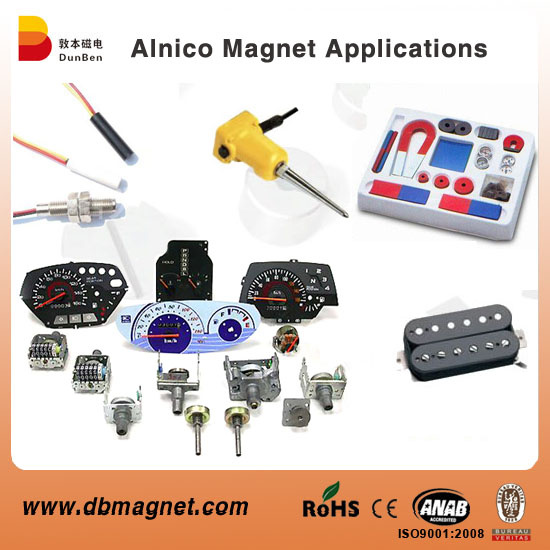

Alnico Magnet appliaction
Alnico Magnet is widely used for instruments, autombile, teaching and electronics

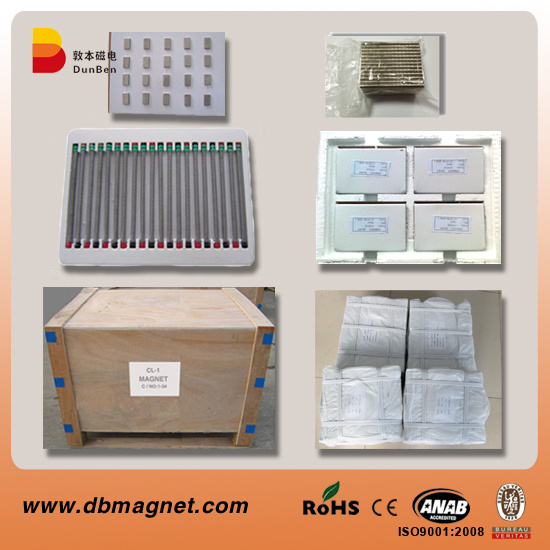

We will provide standard export package which is ok for sea or air shipment

As the manufacturer of magnet material and magnetic assembly, Dunben Magnet Co., Ltd has developed magnet and precision magnetic production for the worldwide automotive, electronics, panel meter, power industries for ten years.

Our company was established in the year of 2004, after long delveoping, our manufactures products which serve global markets and include a broad range of magnetic materials and components, magnetic lift systems, material handling equipment, , magnetic motor, bonded magnets, and assemblies.

Customer can count on our excellent work system, professional engineer team, responsible sale team, excellent produce team, strict QC team and perfect after-sale service from Dunben magnet co. Ltd.

In order to satisfy our customer's needs, Hangzhou Dunben focuses on quality control with continuous improvements on all manufacturing processes and provides the most competitive prices based on domestic resources. Customized magnets are always available here.

Depend on high technical, strict quality system, competitive price, our business have been exported to over 10 countries, such as USA, Korea, Germany and so on

We are sincerely willing to establish long business relationships with all customers, so welcome all friend come to visit our factory
