| Prod Model: |
Alloy: 1050, 1060, 1100, 1200, 3003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
0.2 - 8mm |
| Width: |
30 - 2, 400mm |
| Coil Weight: |
Customer Requirement |
| Type: |
Aluminum Coils |
| Application: |
Door & Window |
| Shape: |
Flat |
| Grade: |
5000 Series |
| Surface Treatment: |
Mill Finish |
| Temper: |
O - H112 |
| Certification: |
ASTMB |
| Technique: |
Direct Casting |
| Alloy: |
Alloy, 1100/1050/3003 /5052 |
Product Description

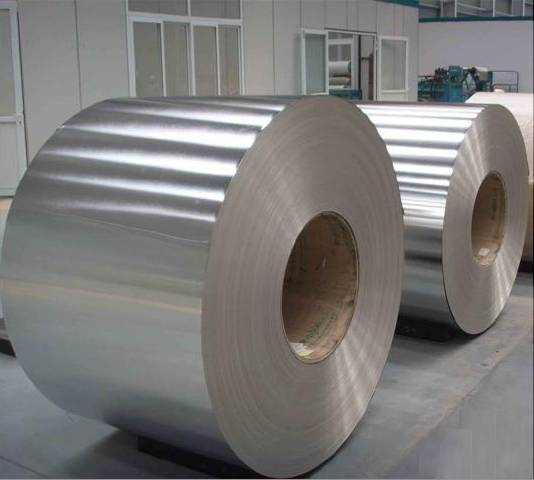

Aluminium/Aluminum Plain Coils for Roofing Usage:
Product Description:
1), Alloy we supply: 8011
For the above-mentioned alloy, you may be interested in:
CC aluminum coil: Means Continuous Casting coil, it can not be used for deep drawing and anodising,but it can be bend over 90 degrees.
DC aluminum coil: means Direct casting coil, it can be used for deep drawing and anodising
2), Size we supply:
Thickness: (0.15-6.0)mm, Width: 1000/1220/1250/1300/1350/1500/2000mm(maximum),and other special width.
Length: Coil
Thicnk tolerance: +/-0.03mm
3),Temper:
H14
4), Packing:
For Sheet Packing:
2-2.5mts per pallet, standard international export packing,
For Coil Packing:
Eye to wall or Eye to Skype packing, 2-3mts per coil or 5-7mts per coil,
Coil ID: 505MM/508MM
Customer may require interleaf papers into sheets or require blue protective PE film on sheet&coil surface.
5), Coil/ sheet surface requirement:
No scratches, white corrosion, water stain, black stain marks, oil stain or streak marks.
6) Ending Application:
drink caps, wine caps, we can see various of beautiful caps for the drinks and wines, the material mainly 8011 alloy, etc.
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn |
| Ti | Other | Al |
| Single | Total |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.6 |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | _ | 0.05 | V:0.05 | 0.03 | 0.03 | _ | 99.5 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | _ | 0.1 | _ | _ | 0.05 | 0.15 | 99 |
| 1200 | Si+Fe:1.00 | 0.05 | 0.05 |
| _ | _ | 0.1 | _ | 0.05 | 0.05 | 0.15 | 99 |
| 3003 | 0.6 | 0.7 | 0.05~0.20 | 1.0~1.5 | _ | _ | _ | 0.1 |
| _ | 0.05 | 0.15 | R |
| 3004 | 0.3 | 0.7 | 0.25 | 1.0~1.5 | 0.8~1.3 | _ | _ | 0.25 |
| _ | 0.05 | 0.15 | R |
| 3005 | 0.6 | 0.7 | 0.3 | 1.0~1.5 | 0.20~0.6 | 0.1 | _ | 0.25 |
| 0.1 | 0.05 | 0.15 | R |
| 3105 | 0.6 | 0.7 | 0.3 | 0.30~0.8 | 0.20~0.8 | 0.2 | _ | 0.4 |
| 0.1 | 0.05 | 0.15 | R |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.50~1.1 | 0.1 | _ | 0.25 | _ | _ | 0.05 | 0.15 | R |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2~2.8 | 0.15~0.35 | _ | 0.1 | _ | _ | 0.05 | 0.15 | R |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40~1.0 | 4.0~4.9 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
| 5086 | 0.4 | 0.5 | 0.1 | 0.20~0.7 | 3.5~4.5 | 0.05~0.25 | _ | 0.25 | _ | 0.15 | 0.05 | 0.15 | R |
