Product Description

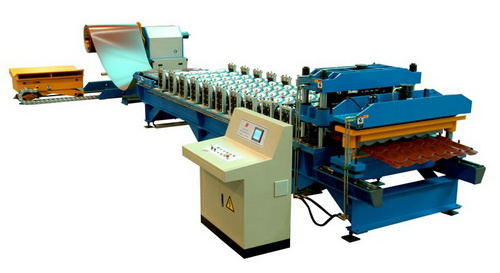

Introduction of Aluminum Roofing Step Tile Roll Former
The aluminium roof stepped tile panel manufacturing machine consists of decoiler, sheet guiding equipment, sheets rollformer, pressing equipment, cutter, supporter, hydraulic system, control system. The finished aluminium steptile made by this aluminium corrugating machines can be widely used in garden factory, resort, pavilions, hotel and villa, exhibition hall, vacationlan
Main Technical Parameters
1. Material Spec: G220-280; Thickness: 0.4 mm to 0.6 mm
2. Hydraulic decoiler Max. Capacity: 5000kgs
3. Controlling system: PLC
4. Main machine power: 7.5kw; Hydraulic station power: 5.5kw
5. Step length: 200-350mm Step height: 14mm
6. Working speed: 1.5-5.5 meters/min
7. Type of cutting: Roll-formed and length-set cutting
8. Power: 380V/3pH/50Hz or at the buyer's requirement
Our company is specialized in designing and manufacturing roll forming machine, including the wall and roof forming machine, tile forming machine, purlin forming machine, floor deck forming machine, guard rail forming machine, water down pipe forming machine, ridge cap forming machine, door frame forming machine, roll shutterforming machine, large span curve forming machine, channel forming machine, metal stud forming machine and other accessorial machine and equipment, such as hydraulic decoiler, coil car, auto stacker, sandwich panel formingmachine, H-beam welding machine, coating production line, shot blasting machine. We can design the machines according to the customers' profiles and requirement.
Our company is also a special steel structure manufacturer. We are cherishing the service attitude to make the best and relying on our design, manufacturing and installing ability, we have designed and manufactured steel structure building for several hundreds of domestic customers, and have expand business range into South America, Africa, Australia, MID-East, and Southeast Asia market. We are looking forward to cooperating with global customers with an aim to establish a good brand image in the global market.
