| Prod Model: |

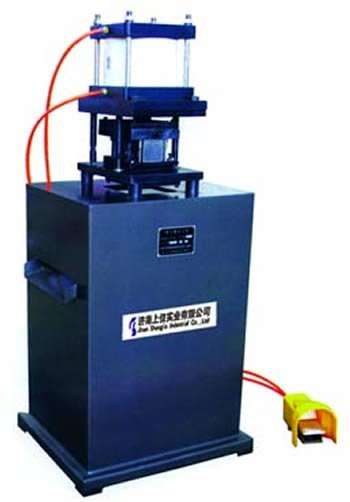

LY-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features
1. Used for punching bores of alum window and door
2. Pneumatic power controlled by foot -touch valve
3. Four working position can achieve corner cutting, drving'cutting and the punching process
Technique parameter
1. Punching pressure: 22KN
2. Workers needed: 4
3. Punch travel: 30mm
4. Die dimension: 340× 240× 500mm
5. Worktable dimension: 540× 420mm
6. Air consumption: 0.6-0.8Mpa
7. Dimension: 600× 480× 1320mm
Jinan Shangjia Industrial Co., Ltd. locates at Jinan ( China), is one of the professional manufacturers of window-door machinery in China. Our products mainly include PVC window and door machinery, Alum window and door machinery, PVC-steel complex window and door machinery and insulating glass machinery.
We have an excellent team of excellent engineers and technical service advisors who have rich experience in products research & development and technique support, Since establishment of shangjia in 1999, we have been stressing on the principle of "credit enterprise, excellent machines'. More than 10-year experiences and excellent credit standing make us all along stand at the head of window and door machine field. Until now we have exported to more than 20 countries with our qualified import and export right. We have gained high reputation both at home and abroad while Shangjia Machine have become Chinese famous brand in the world.
