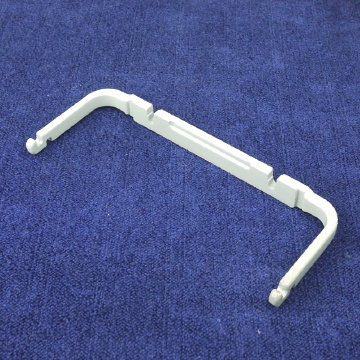

Aluminum Bracket Arms Die Casting

Name: Aluminum Bracket Arms Die Casting
Brand: china-castingforging.com
SKU: 731593325
Availability: InStock
Rating: 4.5 (70 reviews)

Price:	US $ 1.00/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Xiamen Qirui Metal and Plastic Co., Ltd.

Showroom Product Company Profile

Prod Model:	DC-A118-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Automobile Electronic, Appliance Medical, Lighting
Weight:	450g
Material No:	ADC10, ADC12, A380, 383, B390 (Yl117), Yl112, Yl10
Mould Material:	8407, H13, P20, etc
Cavity:	1-1, 1-2, 1-4, 1-8
Equipment:	350 Ton -800 Ton
OEM/ODM:	Available
Size:	Custom
Packaging:	Carton, Wood Carton
Lead Time:	5-20 Days
Material:	Aluminum Alloy
Surface Preparation:	Spray Coating

Product Description

Aluminum die casting accessory feature:
1, Process of aluminum die casting part: Die casting + complete machining + heat treatment + surface treatment
2, Aluminum die casting mold Material: 8407, H13, P20, etc. Aluminum die casting mold Design: According to Drawing or Sample.
3, Aluminum die casting accessory material: ADC10, ADC12, A380, 383, B390 (YL117), YL112, YL104 or as customer's requirement.
4, Surface Treatment of aluminum die casting part: Chrome plating, sandblasting, painting, anodizing, powder coating, electrophoresis
5, Standard exporting package for aluminum die casting part, such as plywood box, plywood pallet, carton & bubble bags
6, Application range of aluminum die casting parts: Auto parts, motorcycle parts, pump parts, locomotive parts, machinery parts, lamp chimney.

Products:

Products application	1	Auto /Moto Parts
	2	Machinery Parts
	3	Lighting Components
	4	Hardware Accessories
	5	Electric Motor Products
	6	Agricultural Machinery
	7	Electrical Appliances
	8	Tent Parts
	9	Camera Parts
	10	Furniture Hardware

COMPOSITION AND PROPERTIES OF ALUMINUM DIE CASTING ALLOYS

DESIGNATIONS AA NUMBER FORMER NO. COMPOSITION (in percent max. unless shown as range)	A360.0 A360.0	A380.0 A380.0	E380.0 -	383.0 -	B383.0 -	A413.0 A13	B390.0 390	384.0 384
Silicon	9.0-10.0	7.5-9.5	7.5-9.5	9.5-11.5	9.5-11.5	11.0-13.0	16.0-18.0	10.5-12.0
Iron	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Copper	0.6	3.0-4.0	3.0-4.0	2.0-3.0	2.0-3.0	1.0	4.0-5.0	3.0-4.5
Manganese	0.35	0.50	0.50	0.50	0.50	0.35	0.50	0.50
Magnesium	0.40-0.6	0.10	0.30	0.10	0.30	0.10	0.45-0.65	0.10
Nickel	0.50	0.50	0.50	0.30	0.30	0.50	0.10	0.50
Zinc	0.50	3.0	3.0	3.0	3.0	0.50	1.5	3.0
Tin	0.15	0.35	0.35	0.15	0.15	0.15	0.20	0.35
Titanium	-	-	-	-	-	-	0.20	-
Total others	0.25	0.50	0.50	0.50	0.50	0.25	0.20 (0.10 ea.)	0.50
Aluminum	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
PROPERTIES (see notes)
Ultimate tensile strength (ksi)	46	47	47	45	45	42	40.5	48
Tensile yield strength (ksi)	24	23	23	22	22	19	35	24
Elongation (% in 2" G.L.)	3.5	3.5	3.5	3.5	3.5	3.5		1.0 2.5
Hardness (HB)	75	80	80	80	80	120	85
Shear strength (ksi)	26	27	27	25	25	29
Charpy impact strength (ft. lb.óunnotched)	4.2	3.5	3.5			2.0
Fatigue strength (ksi) (limit @ 500 million cycles)	18	20	20	19	19	20		20
Density (lb./in. 3 )	0.095	0.098	0.098	0.097	0.097	0.096	0.099	0.098
Melting range ( o F) approx.	1035-1105	1000-1100	1000-1100	960-1080	960-1080	1065-1080	945-1200	960-1080
Specific heat (Btu/lb. o F)	0.23 0.23	0.23	0.23
Coefficient of thermal expansion (in./in./ o F)	11.8	11.7	11.7	11.5	11.5	10.3	11.7	11.3
Thermal conductivity (Btu/fthr. o F)	65.3	55.6	55.6	55.6	55.6	67.7	78.6	56
Electrical conductivity (% IACS)	29	31	31	23	23	31	25	23
Modulus of elasticity (10 6 psi)	10.3	10.3	10.3	10.3	10.3	10.3	11.9	10.3

Qirui Metal and Plastic Co., Ltd. was established in Xiamen in 1998. Our factory produce strictly according to ISO9001: 2008 international quality system. We have the facilities and capabilities of stamping, deep drawing, Alu/Zinc casting, injection molding, AC/DC motor fabrication, CNC machining and so on, skilled personnel, over 15 years of production experience to consistently provide high quality parts or components that meet your exact specifications, also we have R&D department with 3D printer to facilitate prototype development and offer a comprehensive OEM/ODM service package including consulting, engineering, cost analysis, and manufacturing. for instance, ours' chocolate fountains, Belgium waffle makers and frying pans are very popular around the world.
In addition, making metal and plastic parts, commercial and household appliance, one lighting department has been set up to facilitate LED lighting components and LED lights development, especially indoor LED lighting as LED bulb, down light, spot light and panel light to meet the LED lighting marketing requirement.

Please call or e-mail us today to see what solutions we can provide your company or to find out how we can help you with your project!
